Дома / ///ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX
Новый ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

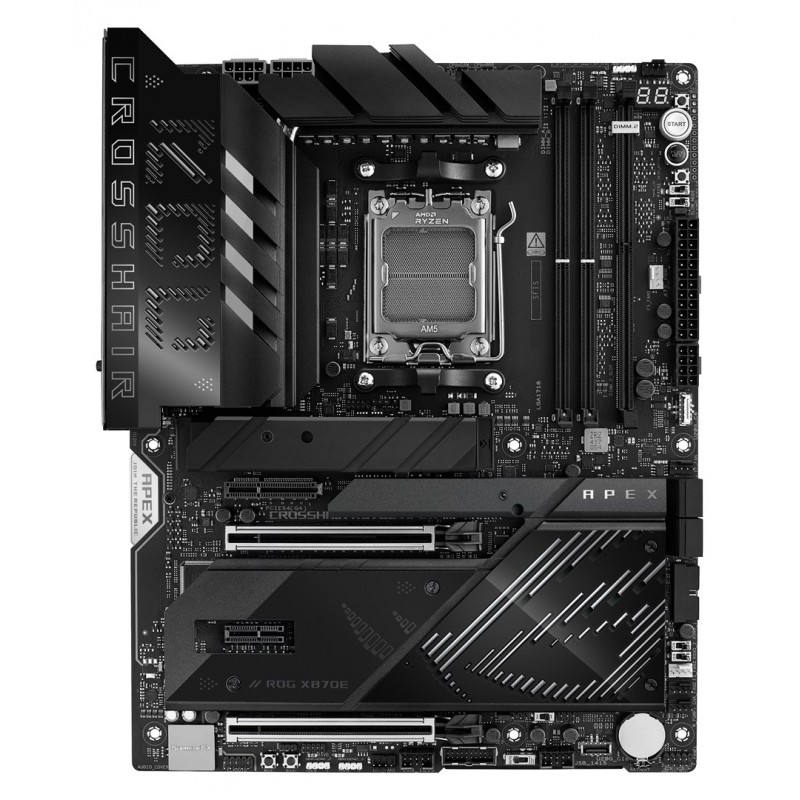

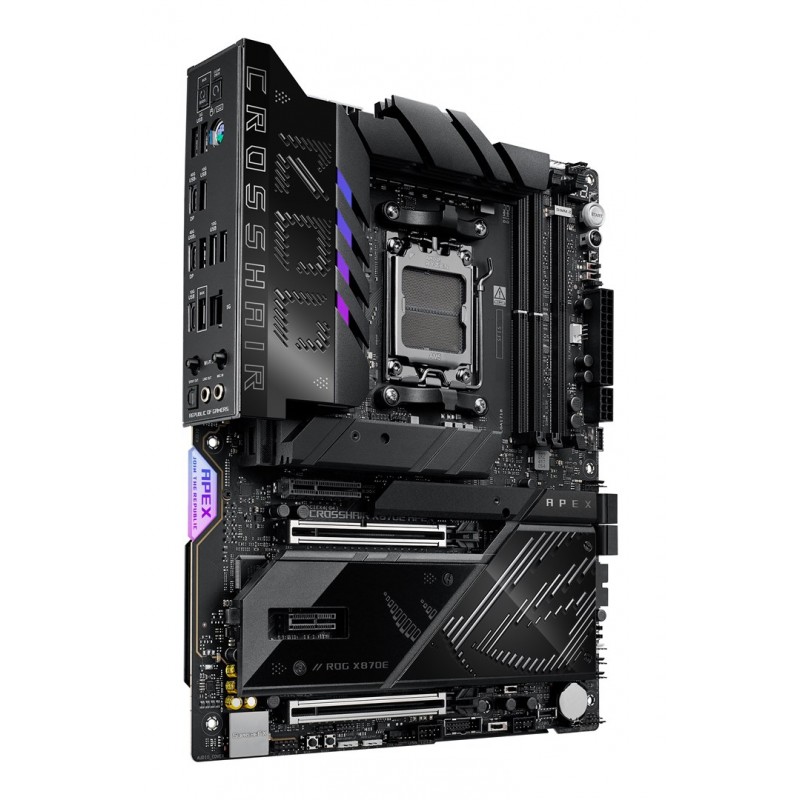

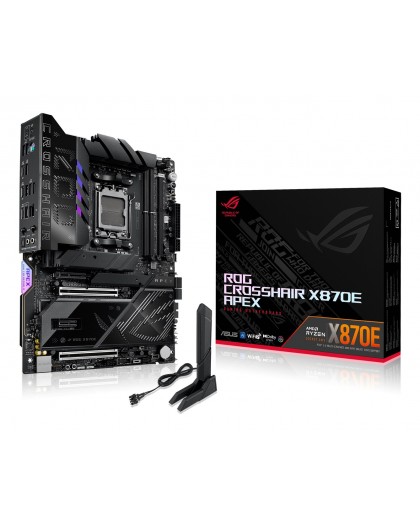

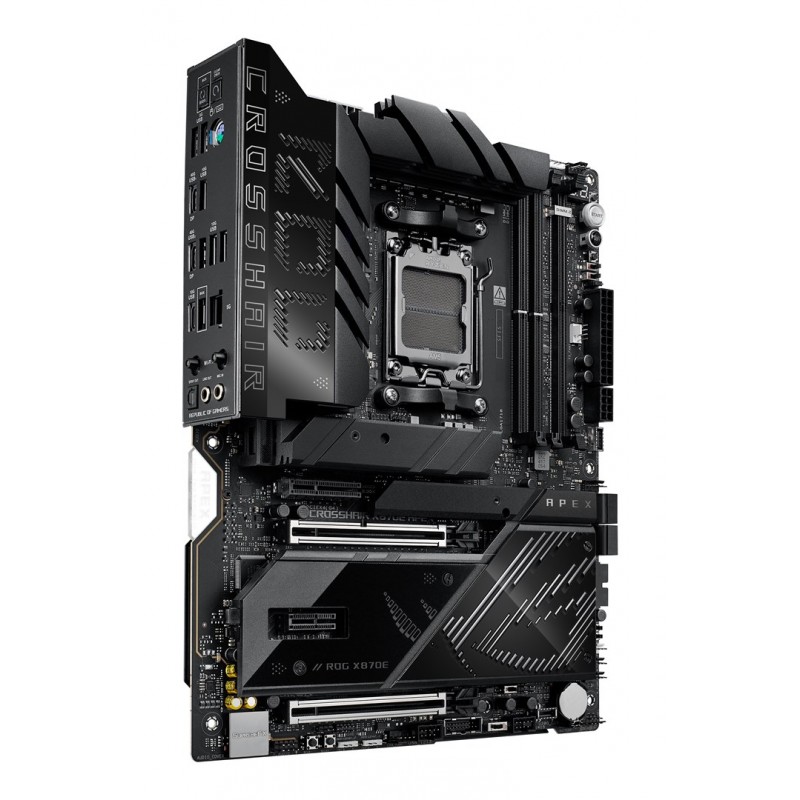

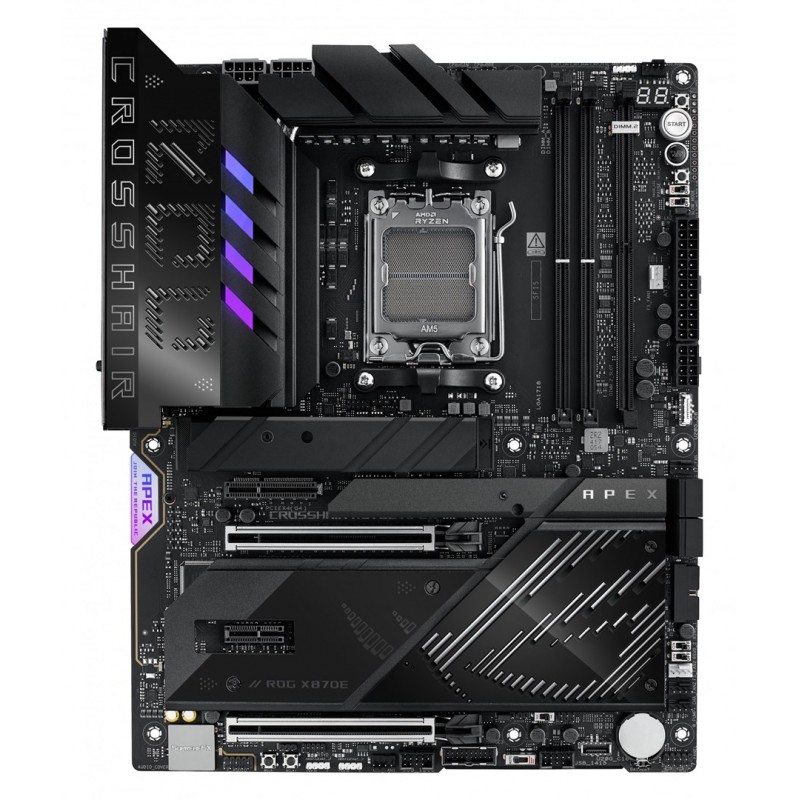

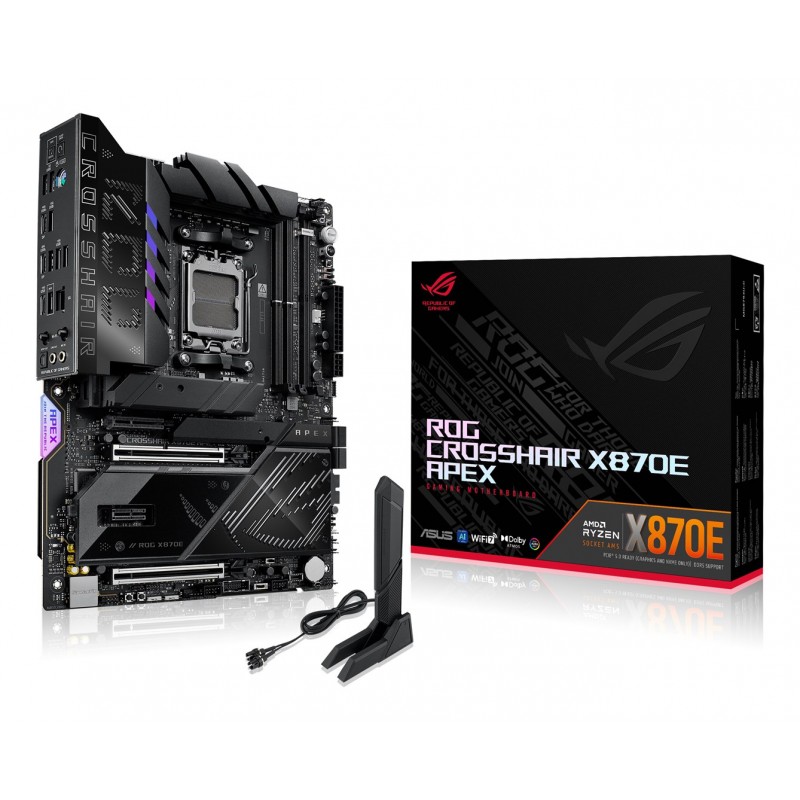

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

ASUS

90MB1KR0-M0EAY0

Новый продукт

6 Элементы

Shipping 2025-11-14 days

819,00 € включая налог.

BIOS
BIOS typeUEFI AMI
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
5th M.2 highest PCI Express generation4.0
5th M.2 largest key size22110
Number of M.2 (M) slots5
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots2
PCI Express x4 (Gen 4.x) slots1
Features
Audio output channels7.1 channels
Motherboard chipsetAMD X870E
Motherboard chipset familyAMD
Motherboard form factorATX
Product colourBlack
Windows operating systems supportedWindows 11
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors2
Number of RGB LED pin headers3
Number of SATA III connectors4
RGB LED pin headerYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors2
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Packaging content
Antenna includedYes
Cables includedSATA
Drivers includedYes
Screws includedYes
Packaging data
Package depth312 mm
Package height108 mm
Package weight4.16 kg
Package width370 mm
Processor
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 9000 Series
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
S/PDIF out portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB4 Gen 3x2 ports quantity2
WiFi-AP antenna jack1
Storage controllers
Number of HDDs supported4
Number of storage drives supported9
RAID levels10
RAID levels1
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width305 mm
