Дома / ///ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX
Новый ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX

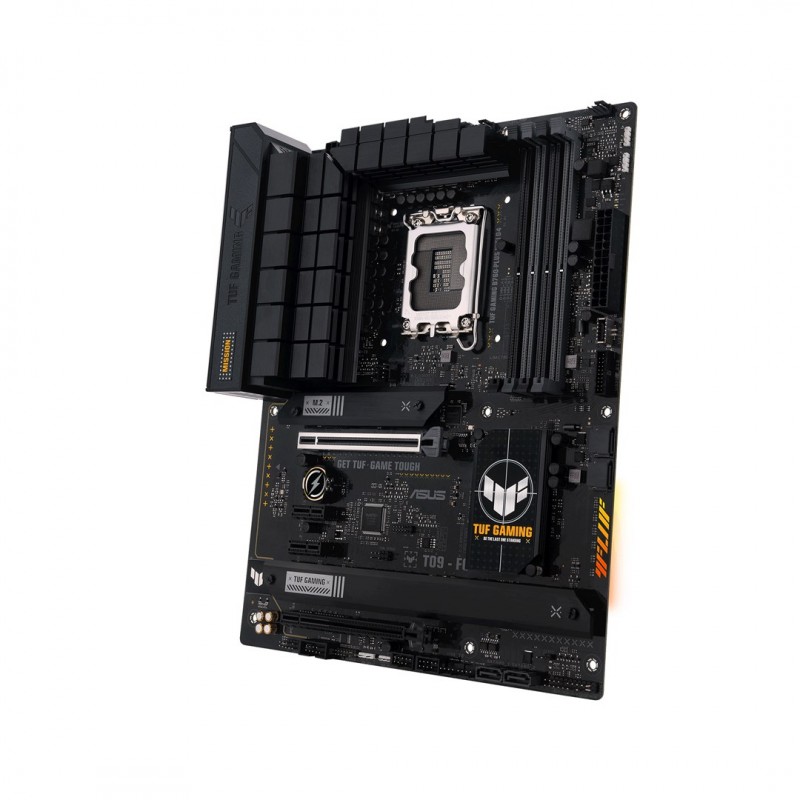

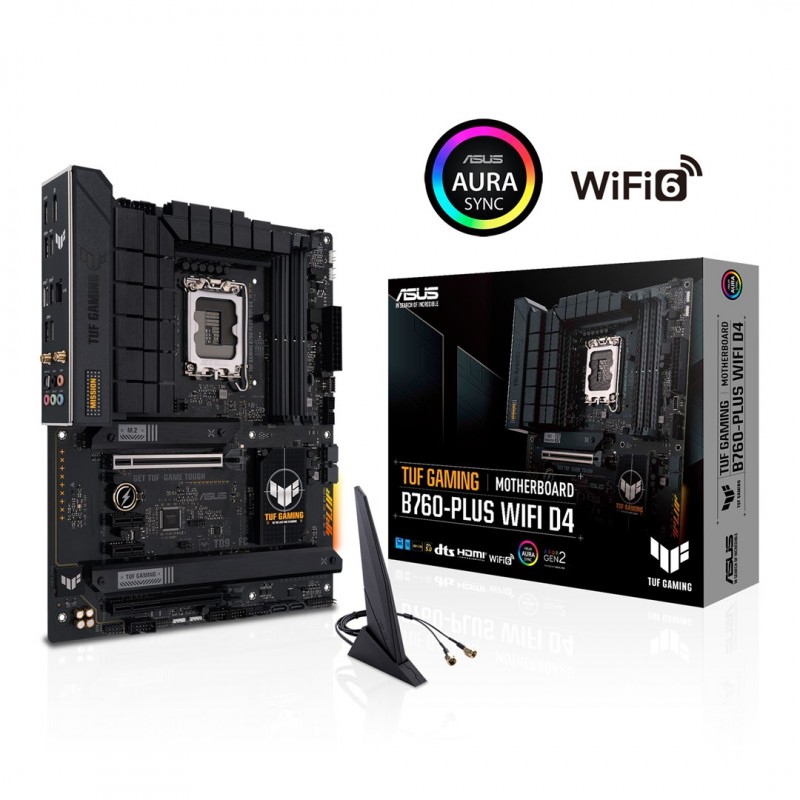

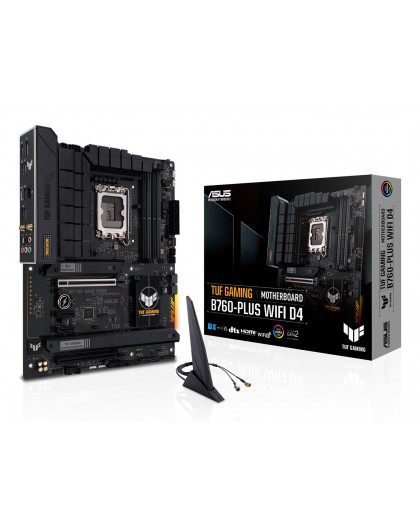

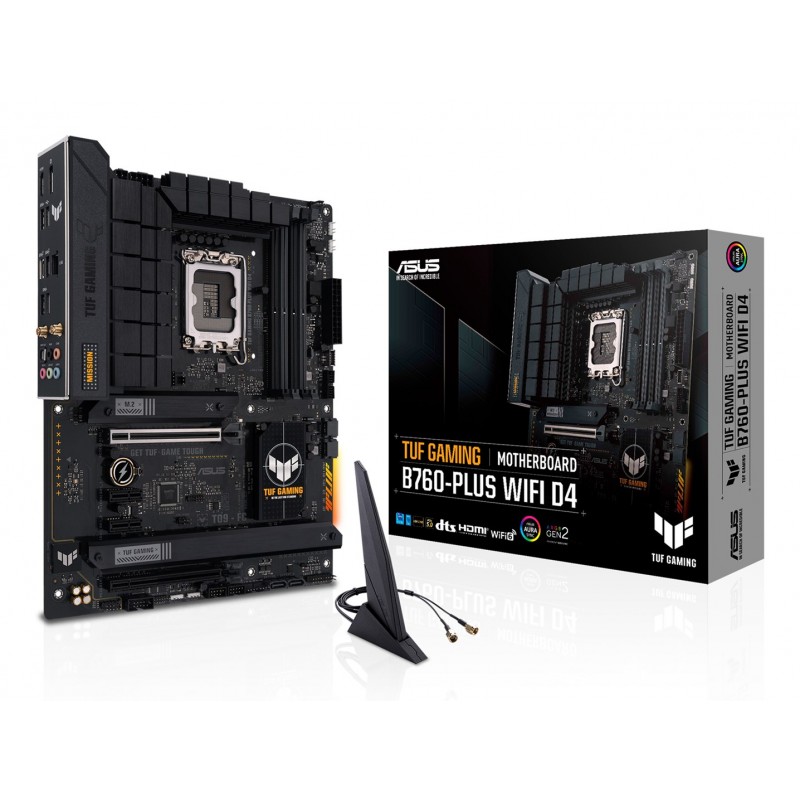

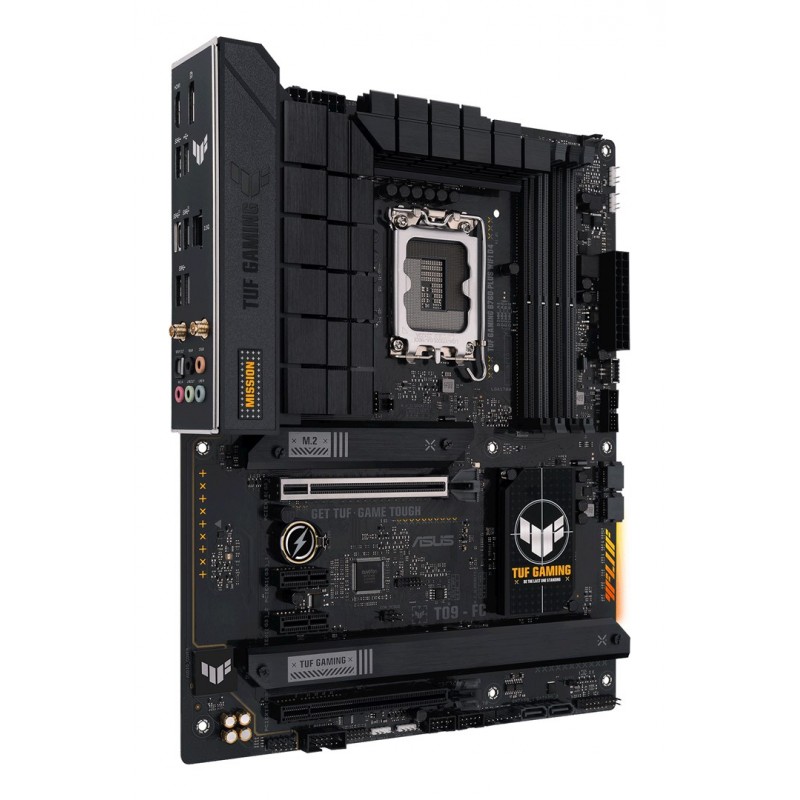

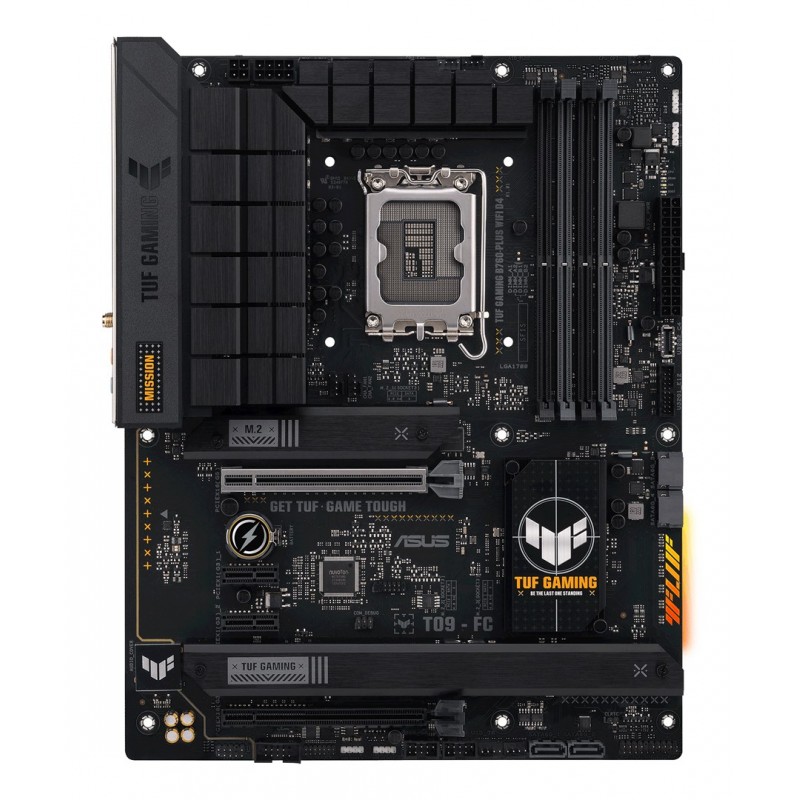

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX

ASUS

90MB1DF0-M1EAY0

Новый продукт

66 Элементы

Shipping 2025-11-14 days

159,00 € включая налог.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
Features
Audio output channels7.1 channels
Cooling typePassive
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Motherboard form factorATX
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 11
Windows operating systems supportedWindows 10
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors4
Number of COM connectors1
Number of SATA III connectors4
Peripheral (Molex) power connectors (4-pin)1
RGB LED pin headerYes
Thunderbolt headers1
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.2
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-FiYes
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standards802.11g
Wi-Fi standards802.11a
Wi-Fi standardsWi-Fi 6 (802.11ax)
Wi-Fi standards802.11b
Wi-Fi standardsWi-Fi 5 (802.11ac)
Packaging content
Cables includedSATA
User guideYes
Packaging data
Package depth76 mm
Package height266 mm
Package weight1.98 kg
Package width331 mm
Processor
Compatible processor seriesIntel® Core™ i3
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
S/PDIF out portYes
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
WiFi-AP antenna jack2
Safety warning
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Storage controllers
Number of HDDs supported4
Number of storage drives supported7
RAID levels1
RAID levels5
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width305 mm
