Дома / ///Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX
Новый Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX

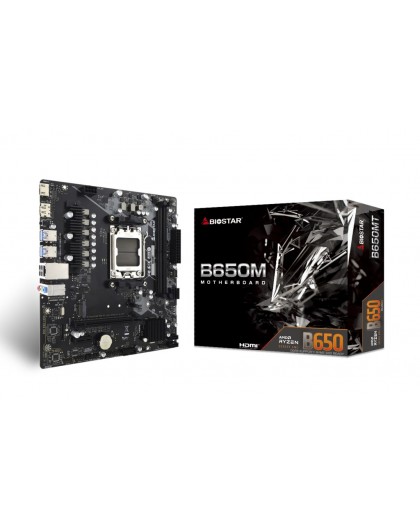

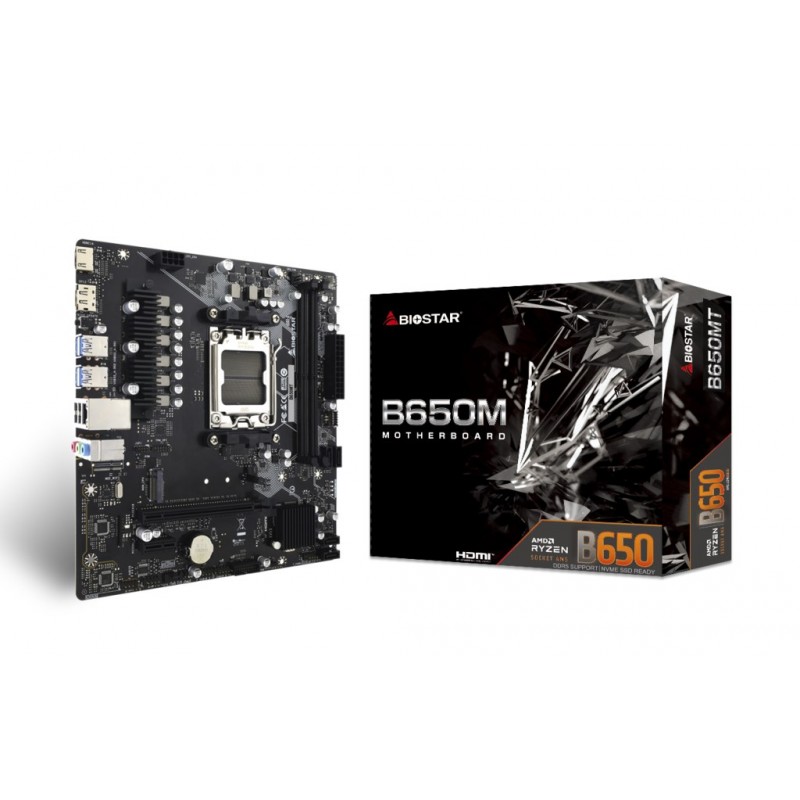

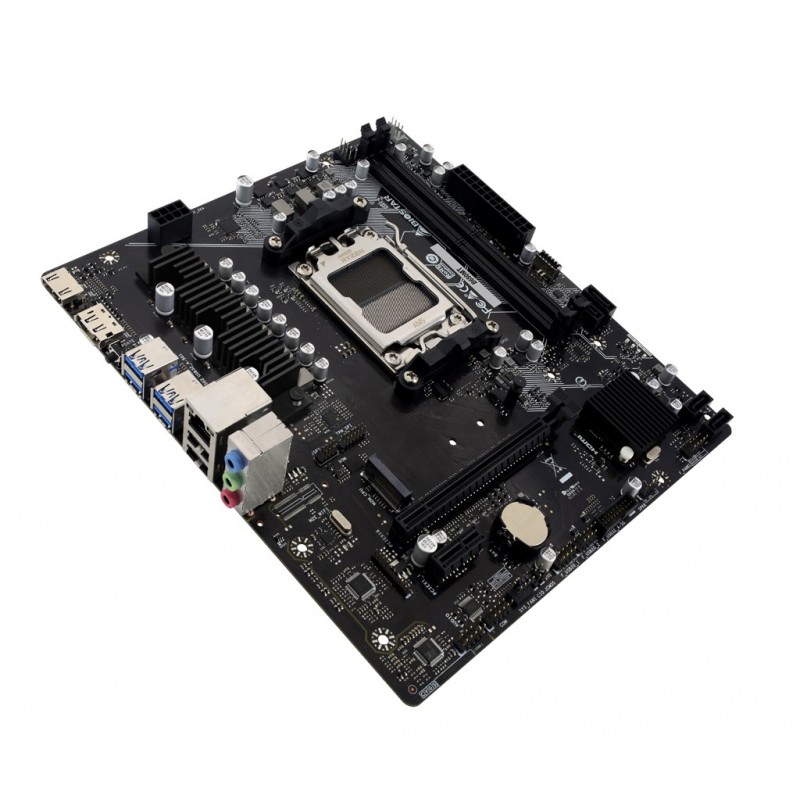

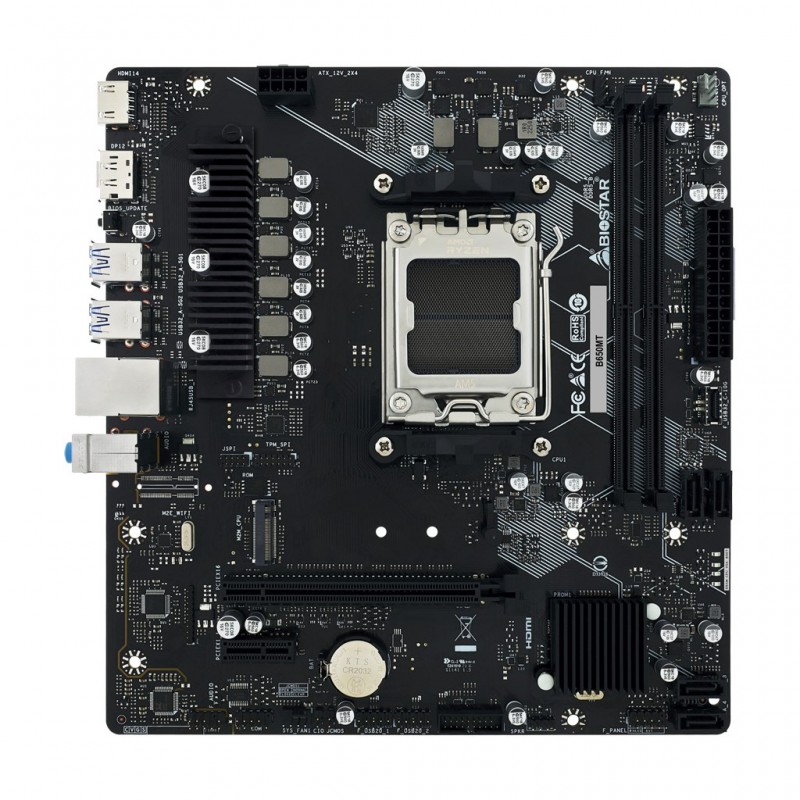

Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX

Biostar

B650MT

Новый продукт

20 Элементы

Shipping 2025-11-14 days

99,00 € включая налог.

BIOS
Clear CMOS jumperYes
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Motherboard form factormicro ATX
PC health monitoringTemperature
PC health monitoringVoltage
PC health monitoringFan
PC health monitoringCPU
Product colourSilver
Product colourBlack
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Graphics
DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
Audio connectorYes
CPU fan connectorYes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors1
Number of COM connectors1
Number of SATA III connectors4
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory96 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds5400
Supported memory clock speeds5200
Supported memory clock speeds5600
Supported memory clock speeds6000
Supported memory clock speeds4800
Supported memory module capacities48GB
Supported memory module capacities32GB
Supported memory module capacities16GB
Supported memory module capacities8GB
Supported memory typesDDR5-SDRAM
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Packaging content
Bundled softwareBullGuard
Cables includedSATA
Drivers includedYes
Processor
Compatible processor seriesAMD Ryzen™ 7
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

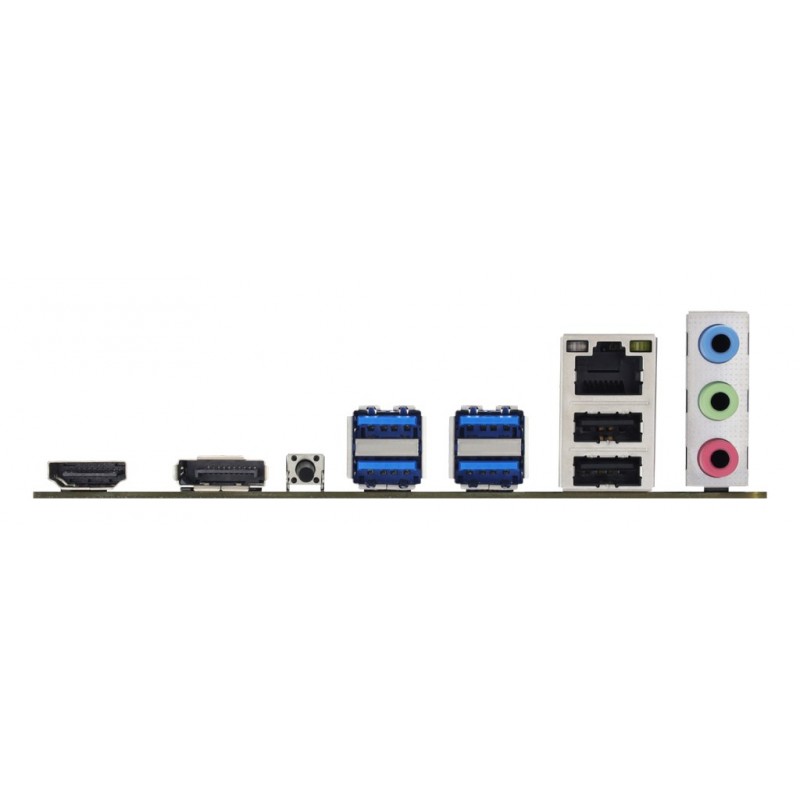

Rear panel I/O ports
DisplayPort version1.2
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version1.4
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Safety warning
WarningsDispose of in accordance with local regulations for electronic waste.
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
WarningsAvoid contact with liquids to prevent electronic damage.
Storage controllers
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth235 mm
Width221 mm
