Дома / ///Gigabyte MB B760 S1700 MATX/B760M D3HP Mainboard
Новый Gigabyte MB B760 S1700 MATX/B760M D3HP Mainboard

Gigabyte MB B760 S1700 MATX/B760M D3HP Mainboard

Gigabyte

B760MD3HPWIFI61.0

Новый продукт

57 Элементы

Shipping 2025-11-24 days

139,00 € включая налог.

Battery
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
BIOS
ACPI version5.0
BIOS memory size128 Mbit
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Expansion slots
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Component forPC
Cooling typePassive
Motherboard chipsetIntel B760 Express
Motherboard chipset familyIntel
Motherboard form factormicro ATX
PC health monitoringWater cooling
PC health monitoringTemperature
PC health monitoringFan
PC health monitoringVoltage
Power source typeATX
Product colourDark brown
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Graphics
DirectX version12.0
HDCPYes
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors3
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers2
Number of SATA III connectors4
Parallel connectorYes
RGB LED pin headerYes
S/PDIF out connectorYes
Serial port headers1
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Logistics data
Products per shipping (inner) case1 pc(s)
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory192 GB
Maximum internal memory per slot48 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)5600 MHz
Supported memory clock speeds5200
Supported memory clock speeds4400
Supported memory clock speeds4800
Supported memory clock speeds5600
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.3
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-FiYes
Wi-Fi standardsWi-Fi 6 (802.11ax)
WLAN controller modelRealtek RTL8851BE
Other features
Weight1.11 kg
Packaging content
Antenna includedYes
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Packaging data
Package depth265 mm
Package height54 mm
Package weight1.2 kg
Package width265 mm
Processor
Compatible processor seriesIntel Core i7 13th Gen
Compatible processor seriesIntel Core i5 12th Gen
Compatible processor seriesIntel Core i7 14th Gen
Compatible processor seriesIntel Core i9 14th Gen
Compatible processor seriesIntel Core i9 13th Gen
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel Core i7 12th Gen
Compatible processor seriesIntel Core i5 14th Gen
Compatible processor seriesIntel Core i3 14th Gen
Compatible processor seriesIntel® Celeron®
Compatible processor seriesIntel Core i3 12th Gen
Compatible processor seriesIntel Core i3 13th Gen
Compatible processor seriesIntel Core i5 13th Gen
Compatible processor seriesIntel Core i9 12th Gen
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700

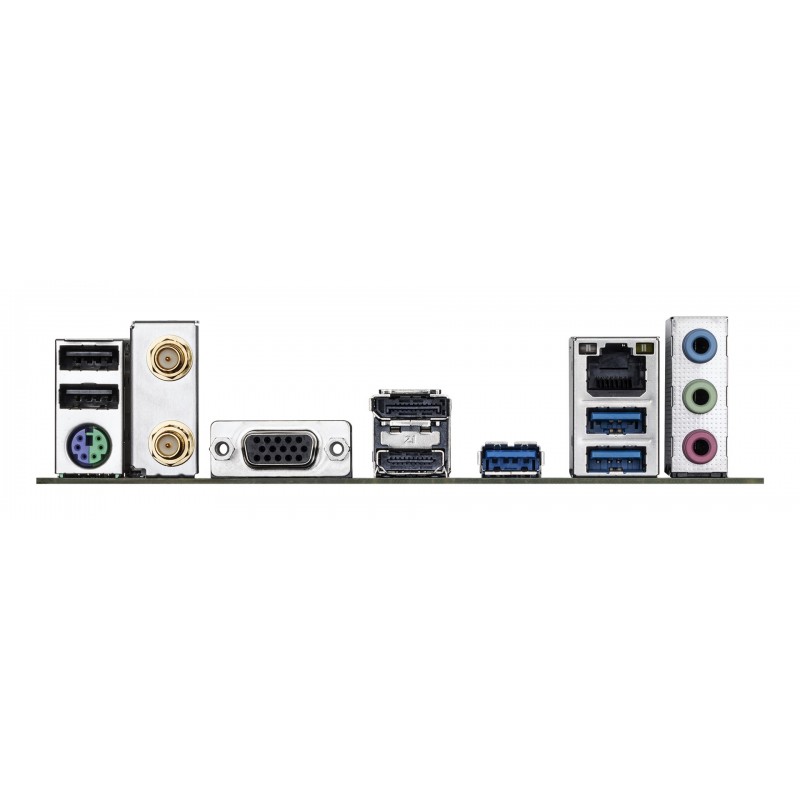

Rear panel I/O ports
DisplayPort version1.2
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
PS/2 ports quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
VGA (D-Sub) ports quantity1
WiFi-AP antenna jack2
Storage controllers
Number of HDDs supported4
Number of storage drives supported6
RAID levels10
RAID levels1
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
Technical details
Warranty period3 year(s)
Weight & dimensions
Depth244 mm
Height35 mm
Width244 mm
