Дома / ///Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX
Новый Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX

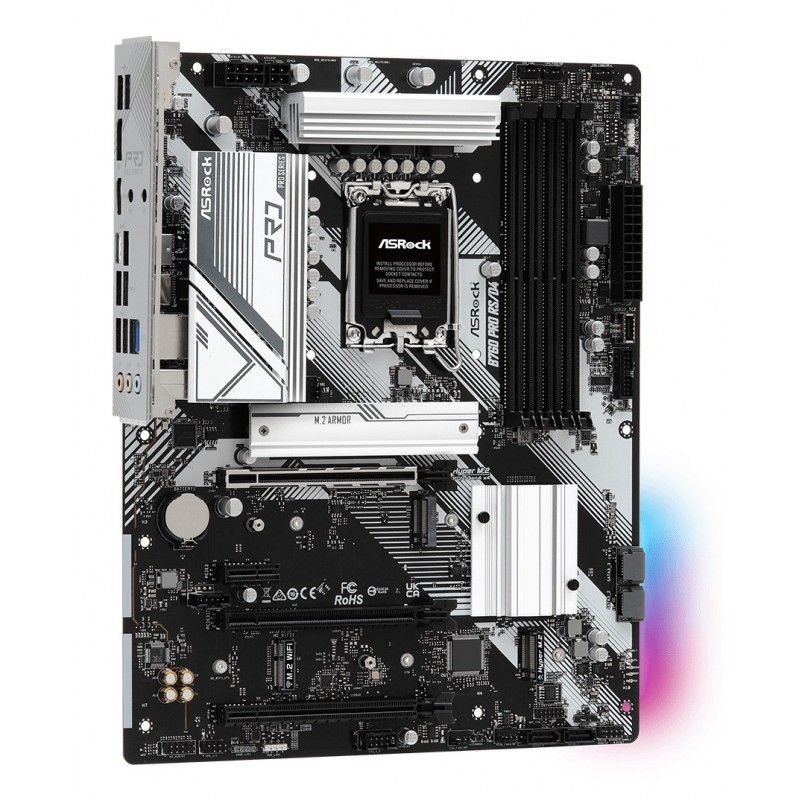

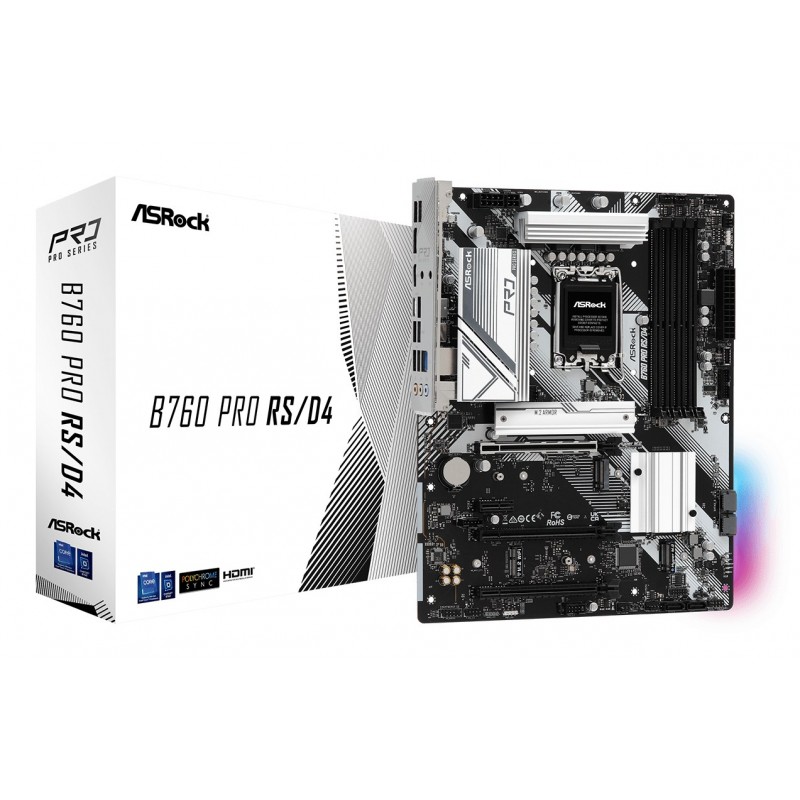

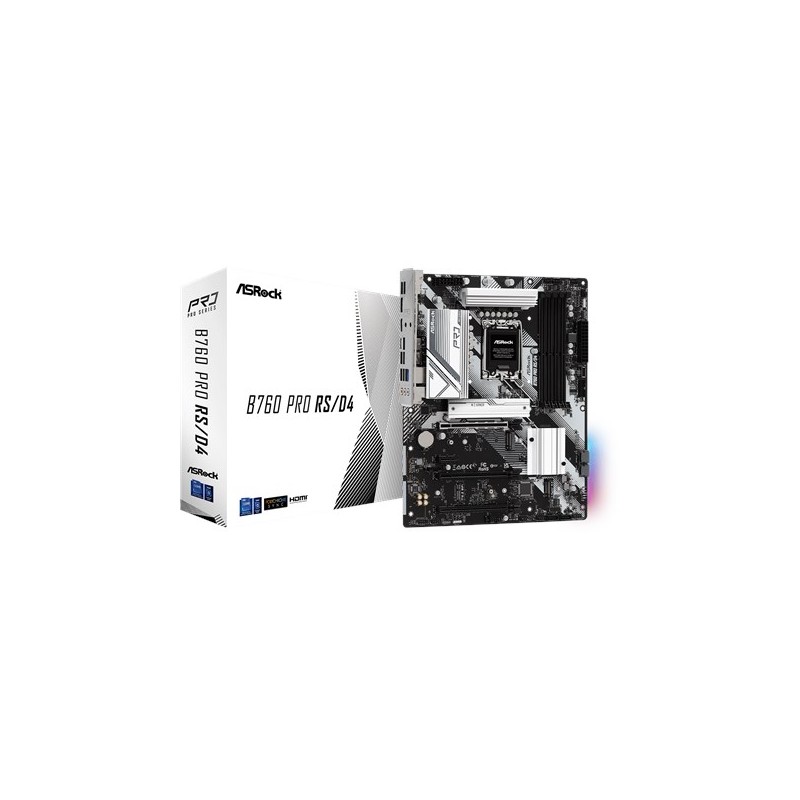

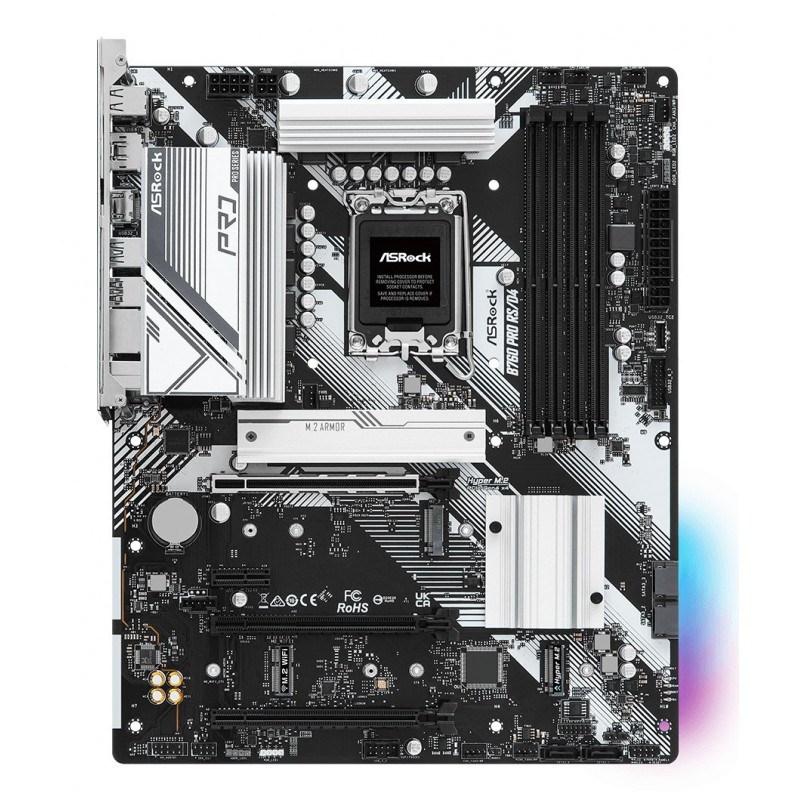

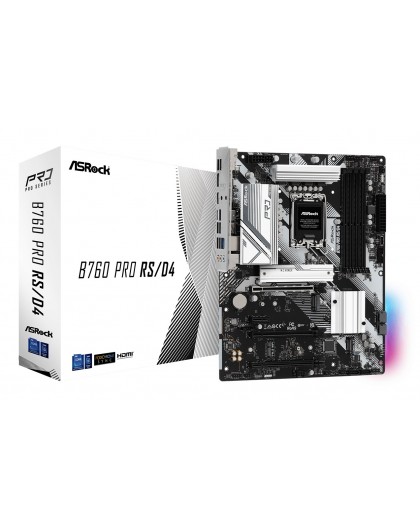

Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX

Asrock

B760PRORS/D4

Новый продукт

27 Элементы

Shipping 2025-11-24 days

139,00 € включая налог.

BIOS
BIOS memory size128 Mbit
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots2
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Certification- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Compatible operating systemsMicrosoft® Windows® 10 64-bit / 11 64-bit
Component forPC
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Motherboard form factorATX
Graphics
HDCPYes
Parallel processing technology supportNot supported
Internal I/O
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds3200
Supported memory clock speeds4266
Supported memory clock speeds4400
Supported memory clock speeds4000
Supported memory clock speeds5333 MHz
Supported memory typesDDR4-SDRAM
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125-BG
Wi-FiNo
Processor
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Core™ i3
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700

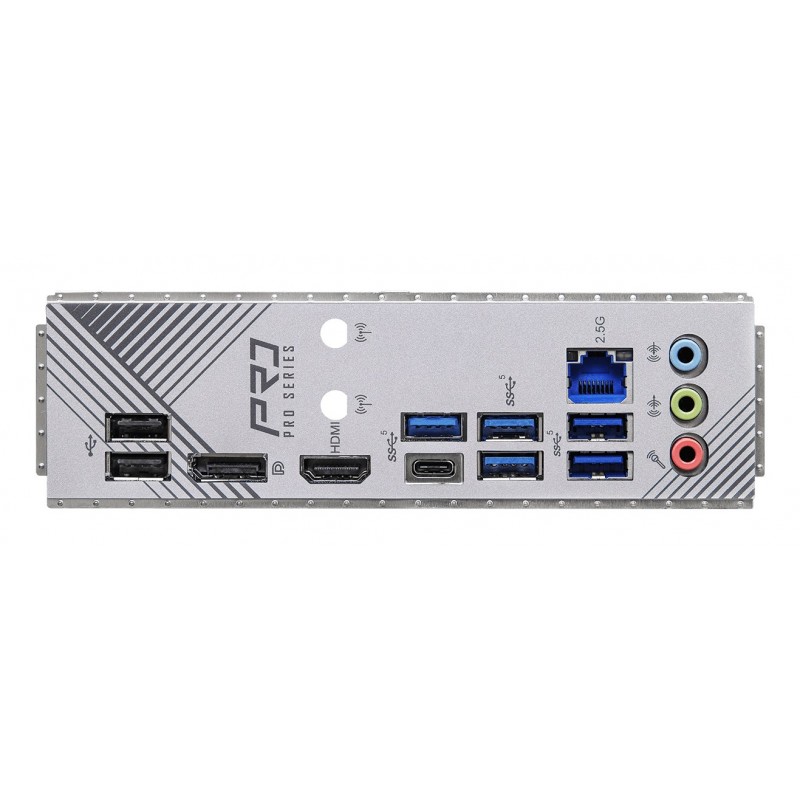

Rear panel I/O ports
DisplayPort version1.4
DVI-D ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Headphone outputs1
Line-inYes
Microphone inYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Safety warning
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
Storage controllers
RAID levels10
RAID levels1
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width305 mm
