Home / ///TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White
New TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

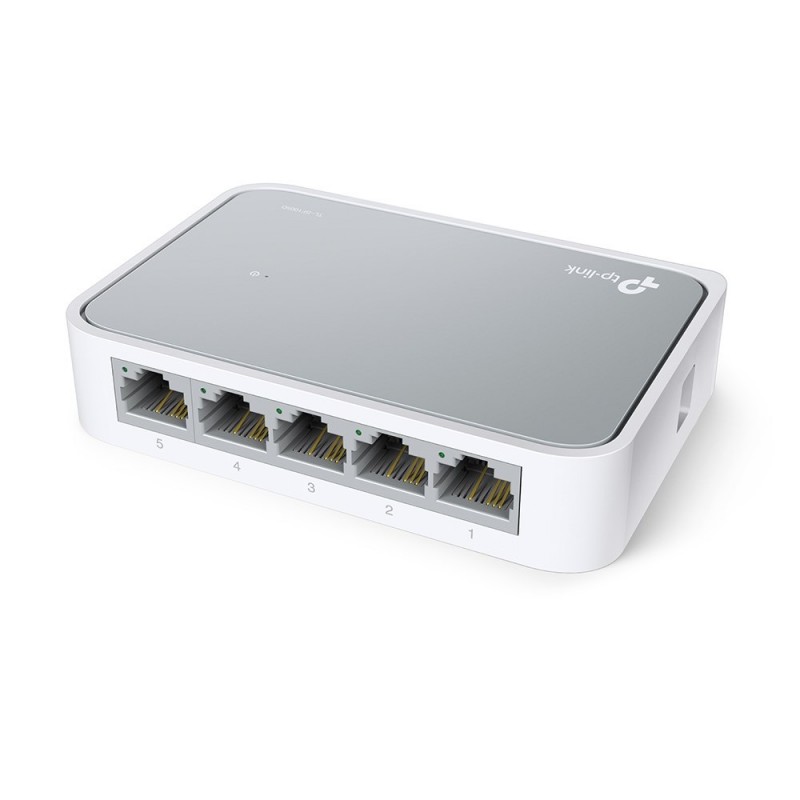

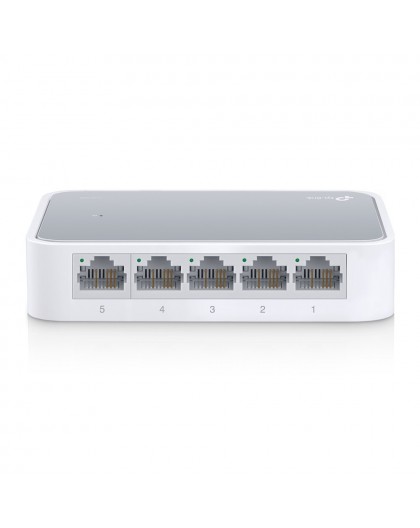

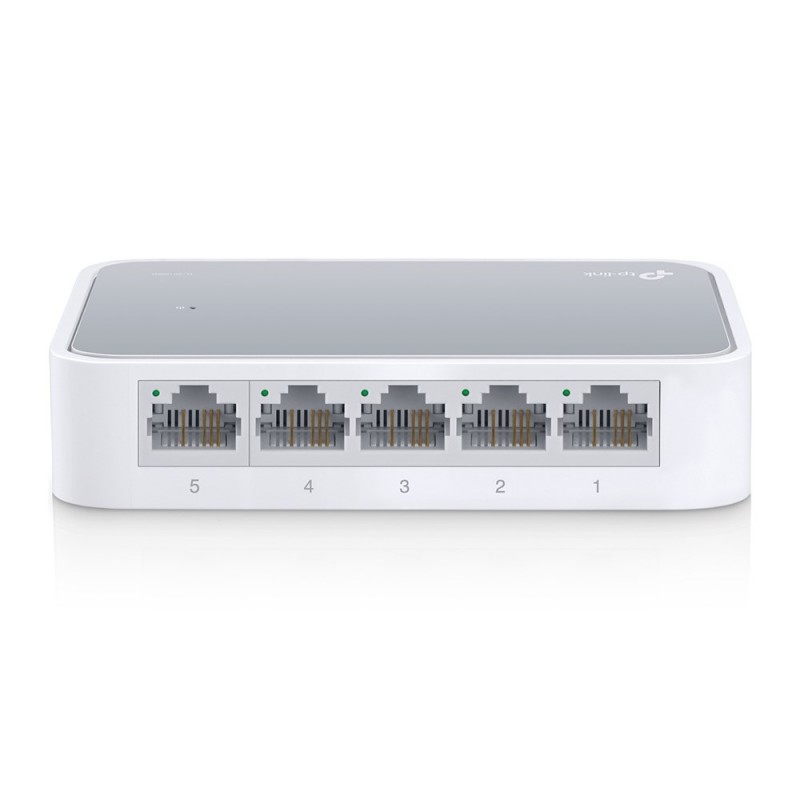

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

TP-LINK

TL-SF1005D

New product

200 Items

Shipping 2025-11-17 days

9,00 € tax incl.

Data transmission
MAC address table1000 entries
Store-and-forwardYes
Switching capacity1.6 Gbit/s
Design
CertificationFCC, RoHs
LED indicatorsYes
Product colourWhite
Rack mountingNo
Management features
Quality of Service (QoS) supportYes
Switch typeManaged
Web-based managementYes
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Copper ethernet cabling technology10BASE-T
Copper ethernet cabling technology100BASE-T
Ethernet LAN data rates10,100 Mbit/s
Flow control supportYes
Full duplexYes
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3x
Spanning tree protocolYes
Operational conditions
Heat dissipation6.38 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Packaging data
AC adapter includedYes
Cables includedAC
Package depth108 mm
Package height85 mm
Package typeBox
Package weight190 g
Package width91 mm
User guideYes
Performance
FanlessYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity5
Power connectorDC-in jack
Power
AC input frequency50 Hz
AC input voltage220 V
DC input voltage5 V
Input current0.6 A
Power consumption (max)1.87 W
Power consumption (typical)1.87 W
Power sourceDC
Power supply includedNo
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Protocols
Supported network protocolsCSMA/CD, TCP/IP
Sustainability
Sustainability certificatesRoHS
Sustainability certificatesCE
Sustainability certificatesFederal Communications Commission (FCC)
Sustainability complianceYes
Technical details
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesFederal Communications Commission (FCC)
Weight & dimensions
Depth70 mm
Height22 mm
Width103.5 mm
