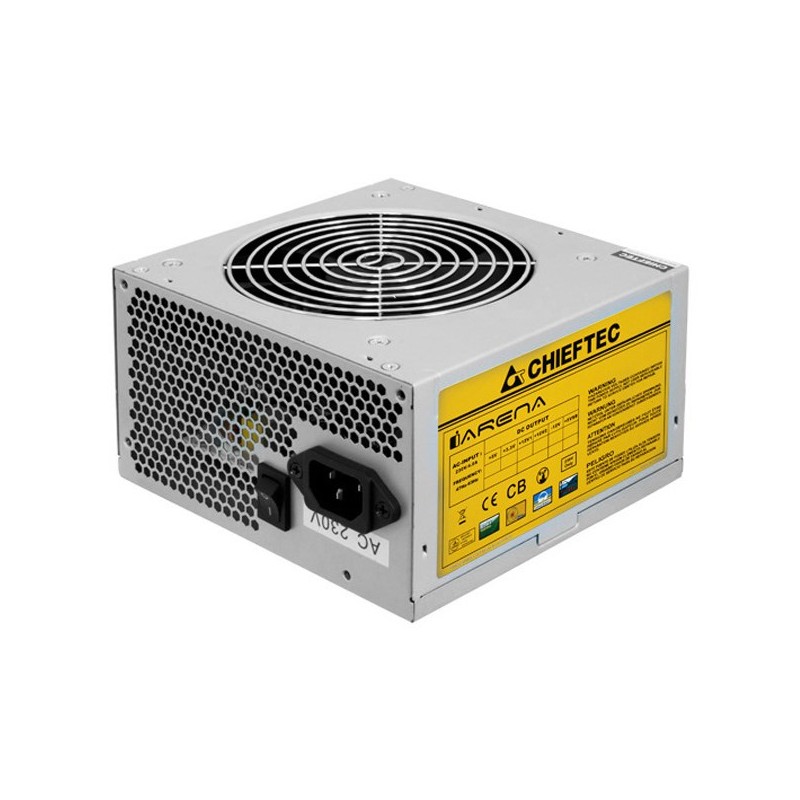

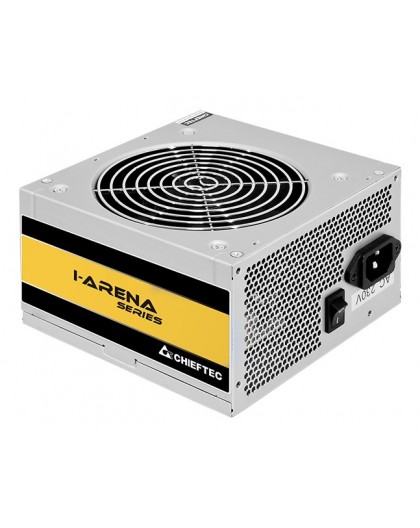

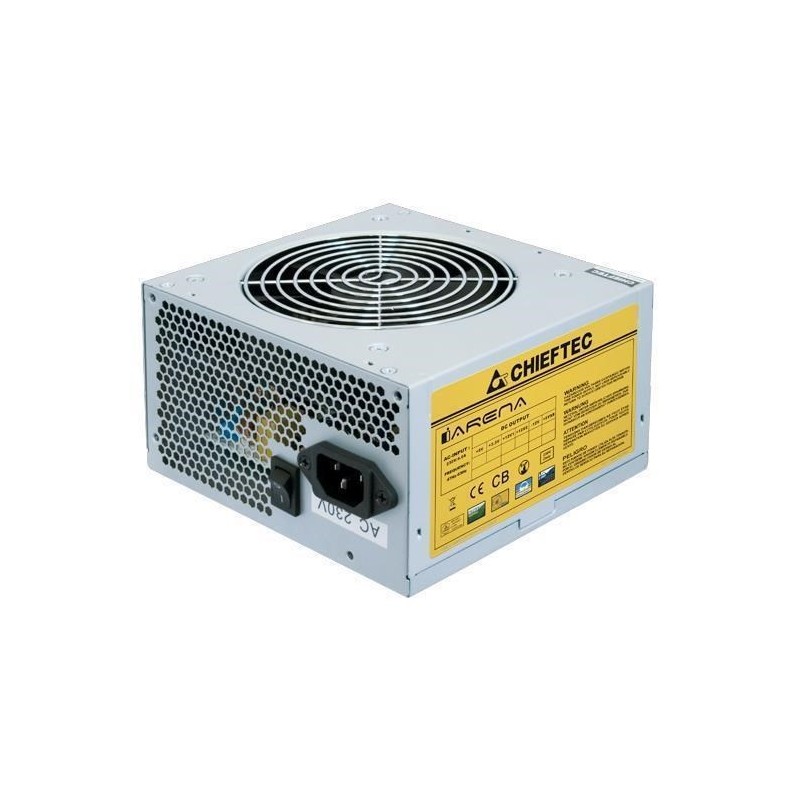

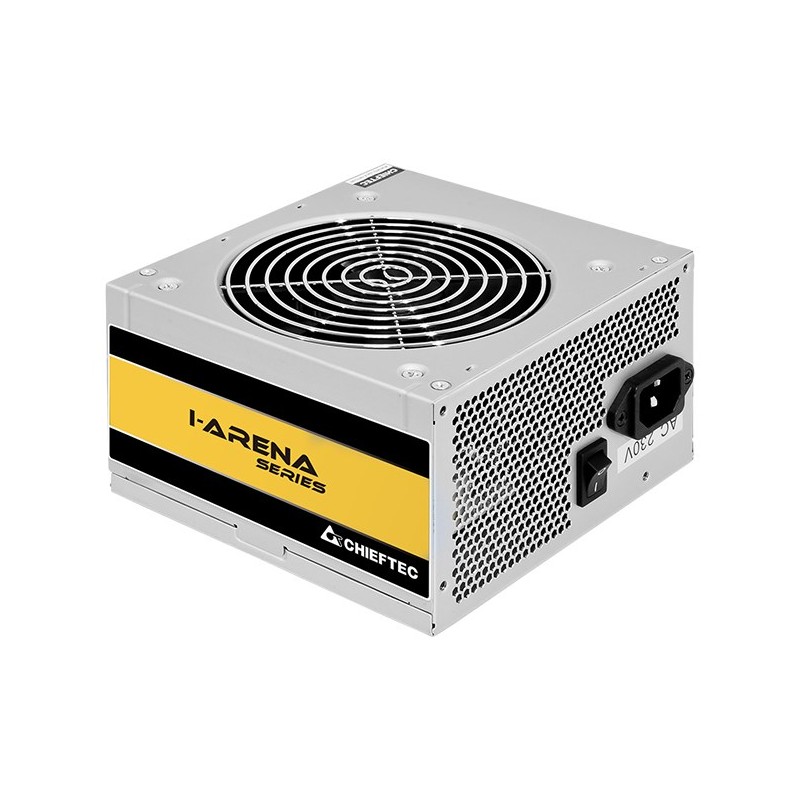

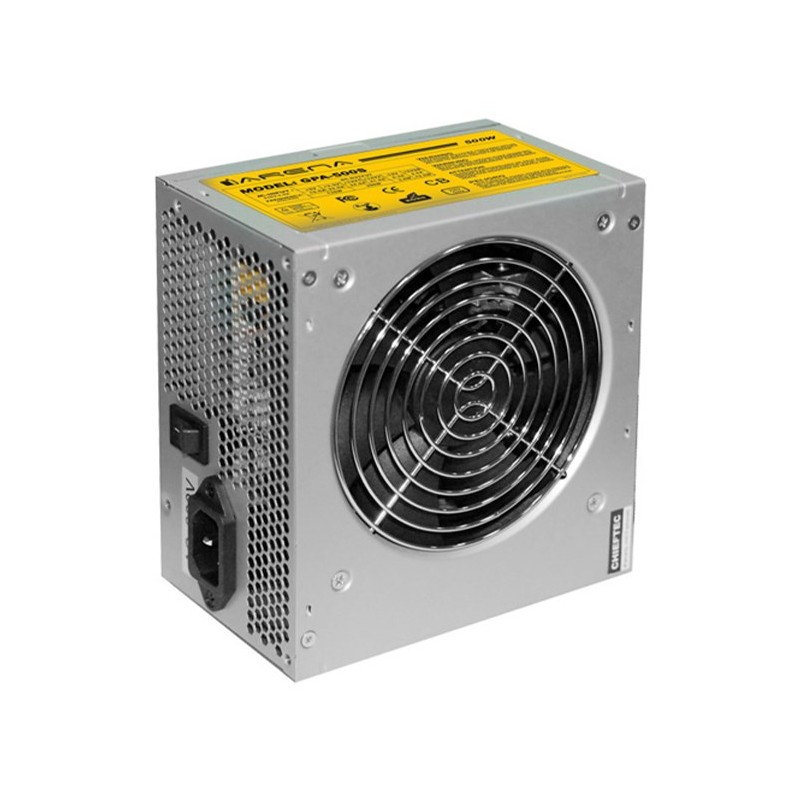

Chieftec iArena GPA-700s power supply unit 700 W 20+4 pin ATX PS/2 Silver
GPA-700S
New product
50 Items
Shipping 2025-11-21 days
59,00 € tax incl.
| Certificates | |
| Compliance certificates | CB |
| Compliance certificates | EAC |
| Compliance certificates | CE |
| Design | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Product colour | Silver |
| Packaging data | |
| Package type | Box |
| Package weight | 1.57 kg |
| Performance | |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC/Server |
| Ports & interfaces | |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 50 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 650 |
| Peripheral (Molex) power cable length | 800 |
| Peripheral (Molex) power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power | |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Efficiency | 80% |
| Input current | 5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 50 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Overload |
| Power protection features | Under voltage |
| Total power | 700 W |
| Weight & dimensions | |
| Depth | 150 mm |
| Height | 87 mm |
| Weight | 1.44 kg |
| Width | 140 mm |
