Home / ///DAHUA 4IN1 CAMERA HAC-HDBW1500E-0280B-S2
New DAHUA 4IN1 CAMERA HAC-HDBW1500E-0280B-S2

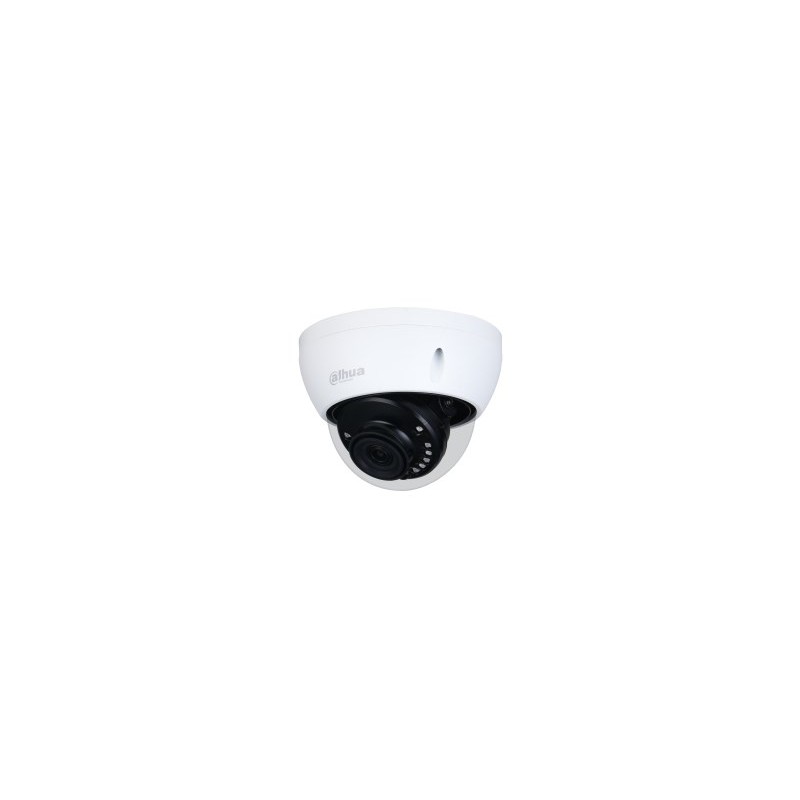

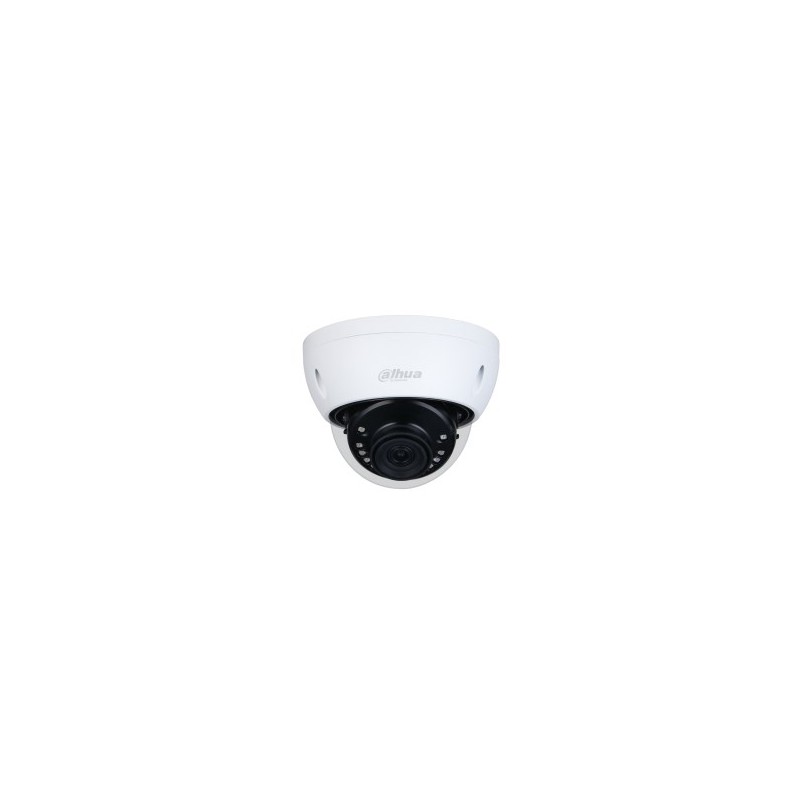

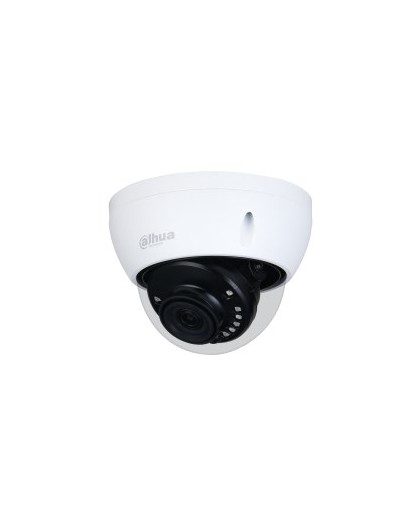

DAHUA 4IN1 CAMERA HAC-HDBW1500E-0280B-S2

DAHUA

1.0.01.12.21307

New product

5 Items

Shipping 2025-11-19 days

149,00 € tax incl.

Audio
Signal-to-Noise Ratio (SNR)65 dB
Camera
Angle of rotation355°
Camera shutter speed1/100000 s
Camera shutter typeElectronic
Lens viewing angle, diagonal132°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical58°
Minimum illumination0.01 lx
Number of Privacy masking areas8
Pan range0 - 355°
Tilt angle range0 - 65°
White balanceStreet lamp
White balanceManual
White balanceRegional custom
White balanceOutdoor
White balanceAuto
White balanceNatural
Design
Form factorTurret
Housing materialPlastic
Housing materialMetal
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
WeatherproofYes
Image sensor
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Sensor typeCMOS
Lens system
Detect distance63.6 m
Fixed focal length2.8 mm
Fixed focusYes
FocusMotorized/Manual
Identify distance6.4 m
Maximum aperture number1.6
Number of lenses1
Observe distance25.4 m
Recognize distance12.7 m
Management features
Web-based managementYes
Network
Ethernet interface typeFast Ethernet
Night vision
LED typeIR/White
Night visionYes
Night vision distance30 m
Number of illumination LEDs12
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Packaging content
ManualYes
Number of cameras1
Packaging data
Package weight450 g
Performance
Alarm input/outputYes
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
Remote viewingYes
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Ports & interfaces
DC-in jackYes
Power
DC output voltage12
Power consumption (max)3.5 W
Power source typeDC
Safety warning
WarningsAvoid exposure of the device to direct water or moisture.
WarningsIt is forbidden to open the device yourself; service and repairs should be performed by qualified personnel.
WarningsStart up and operate the unit in accordance with the operating instructions to avoid the risk of electric shock.
Security
Alarm input channels1
Alarm output channels1
Digital watermarkYes
Intelligent Video Surveillance (IVS) system featuresTripwire
Intelligent Video Surveillance (IVS) system featuresIntrusion
MirrorYes
Security algorithmsHTTPS
Video motion detectionYes
Storage
Built-in HDDNo
Video
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2880 x 1620 pixels
Noise reductionYes
Noise reduction technology2D noise reduction
Smart IRYes
Supported graphics resolutions2880 x 1620
Total megapixels5 MP
Weight & dimensions
Diameter11 cm
Height81 mm
Weight310 g
