Home / ///ATEN CS1942DP - KVM/audio/USB switch - 2 ports
New ATEN CS1942DP - KVM/audio/USB switch - 2 ports

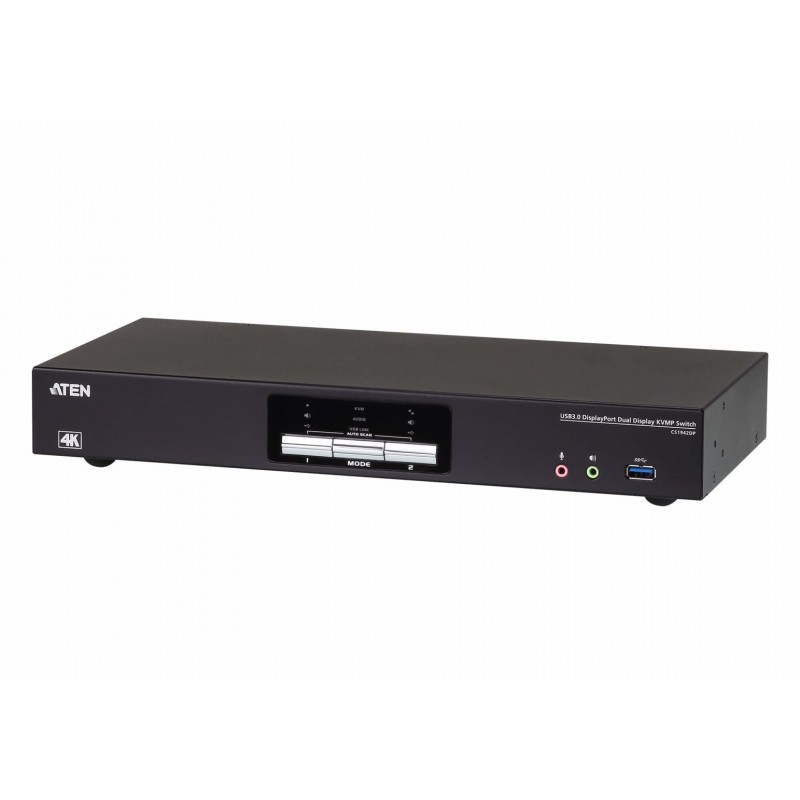

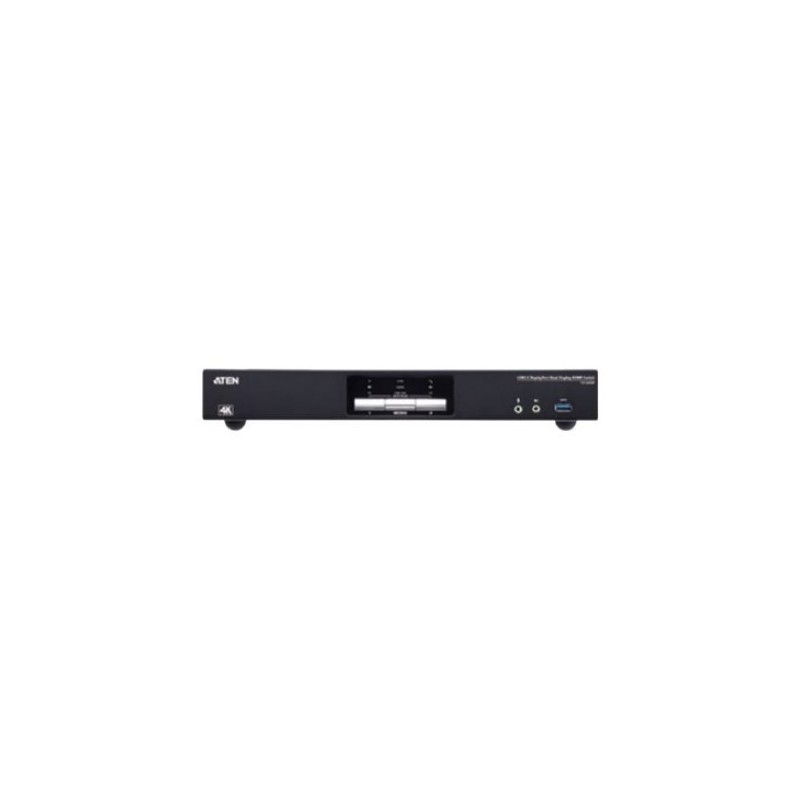

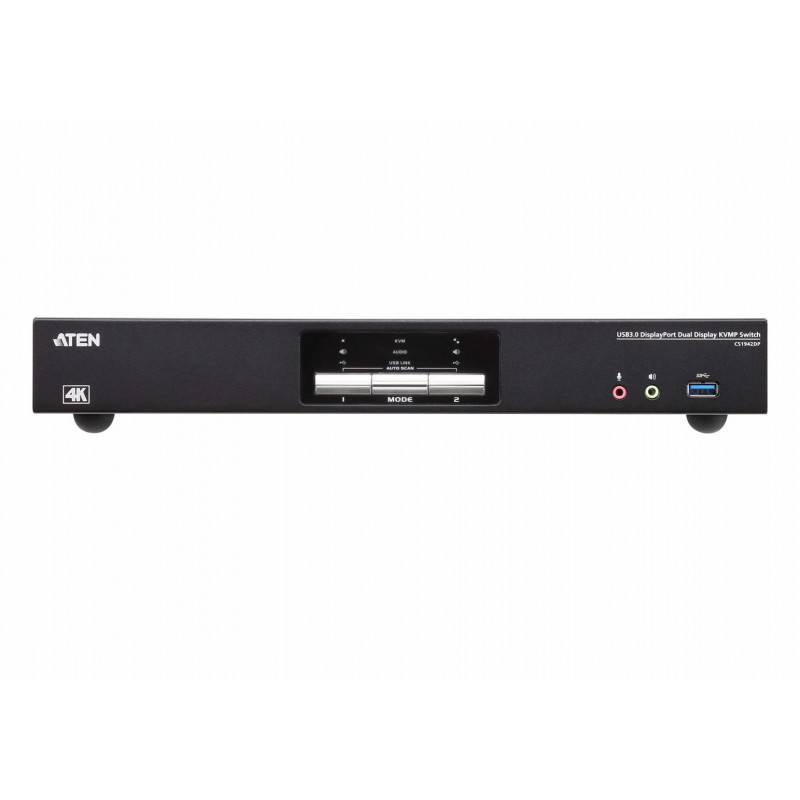

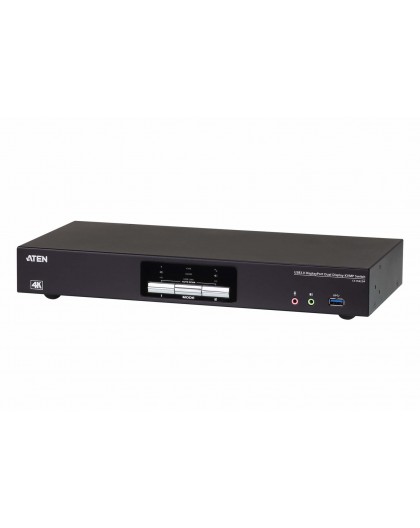

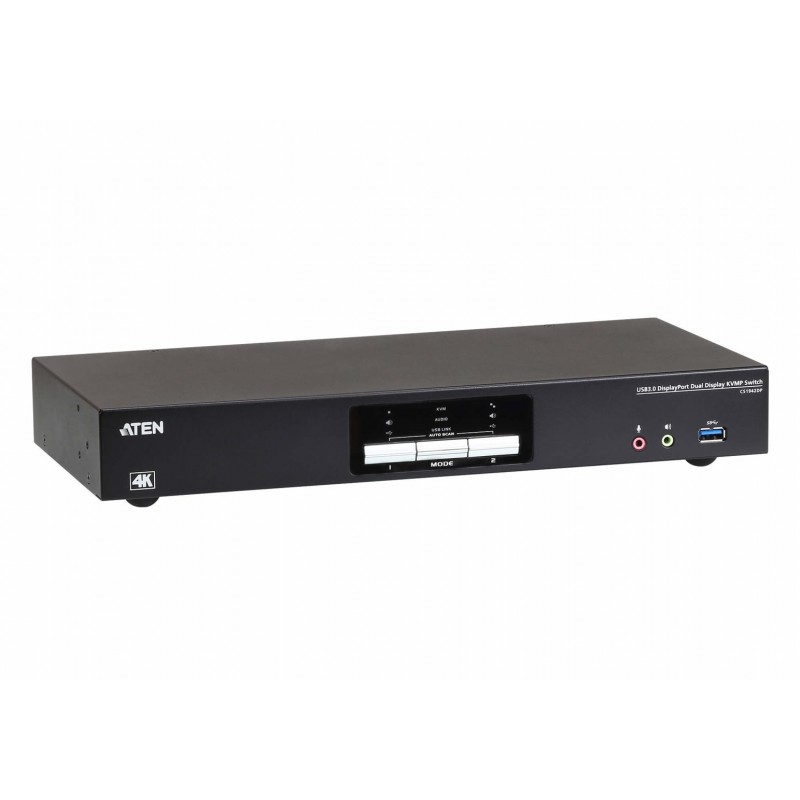

ATEN CS1942DP - KVM/audio/USB switch - 2 ports

ATEN

CS1942DP-AT-G

New product

16 Items

Shipping 2025-11-24 days

329,00 € tax incl.

Design
Hot keysYes
Housing materialMetal
LED indicatorsYes
Product colourBlack
Push buttonYes
Rack mountingNo
Display
Built-in displayNo
Logistics data
Harmonized System (HS) code85176200
Master (outer) case gross weight11.2 kg
Master (outer) case height258 mm
Master (outer) case length565 mm
Master (outer) case net weight8.22 kg
Master (outer) case width375 mm
Products per master (outer) case3 pc(s)
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Operational conditions
Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Packaging content
AC adapter includedYes
Cables includedDisplayPort to Mini DisplayPort
Cables includedUSB
Cables includedAudio (3.5mm)
ManualYes
Packaging data
Package depth540 mm
Package height233 mm
Package weight3.36 kg
Package width116 mm
Performance
Auto scan delay (max)99 s
Auto scan delay (min)1 s
Daisy chainYes
Firmware upgradeableYes
HD type4K Ultra HD
HDCPYes
Maximum resolution4096 x 2160 pixels
Scan interval1
Scan interval99 s
Video bandwidth60 Hz

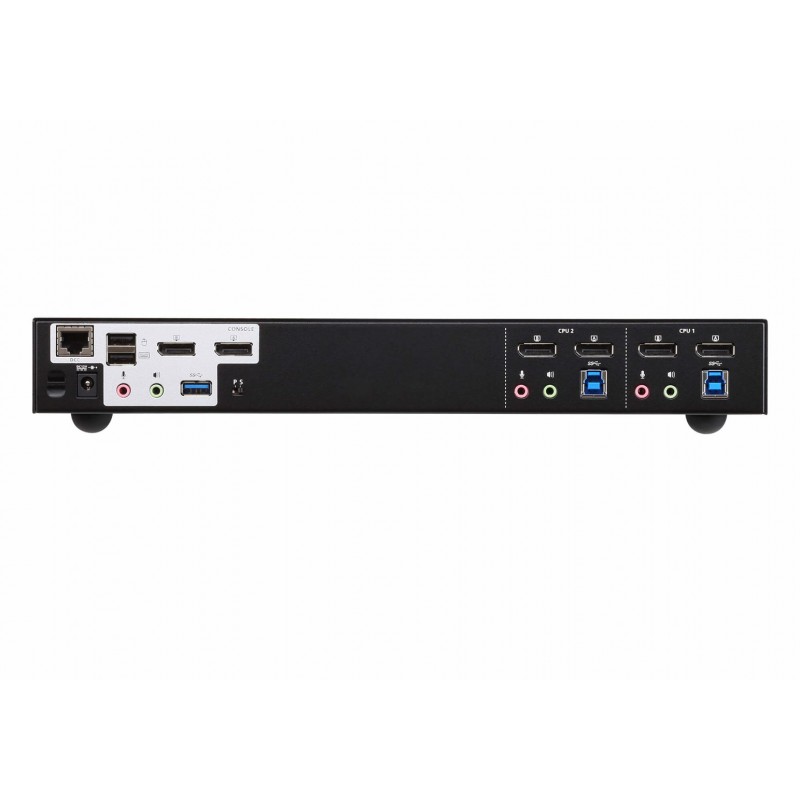

Ports & interfaces
Console portsUSB A
Console ports3.5mm headphone
Console ports3.5mm mic
Console portsDisplayPort
Console USB ports quantity2
DC-in jackYes
DisplayPort version1.2
DisplayPorts quantity6
Headphone outputs4
Keyboard port typeUSB
Mouse port typeUSB
Number of computers controlled2
Number of microphone inputs4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
USB hubYes
Video port typeDisplayPort
Power
Input voltage12 V
Power consumption (typical)3.48 W
Power sourceDC
Weight & dimensions
Depth335 mm
Height44 mm
Weight2.74 kg
Width156.6 mm
