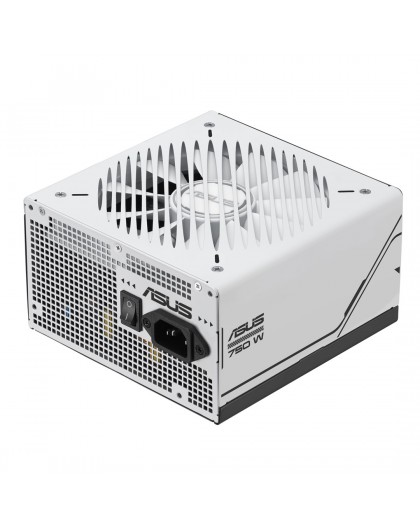

ASUS Prime AP-750G toiteplokk 750 W 20+4 pin ATX ATX Musta, Valge
90YE00U1-B0NA00
New product
8 Items
Shipping 2025-11-14 days
139,00 € tax incl.
| Design | |
| Cooling type | Active |
| On/off switch | Yes |
| Product colour | Black |
| Product colour | White |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Packaging data | |
| Package depth | 208 mm |
| Package height | 144 mm |
| Package type | Box |
| Package weight | 2.88 kg |
| Package width | 346 mm |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 120000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| ATX power connector (20+4 pin) | Yes |

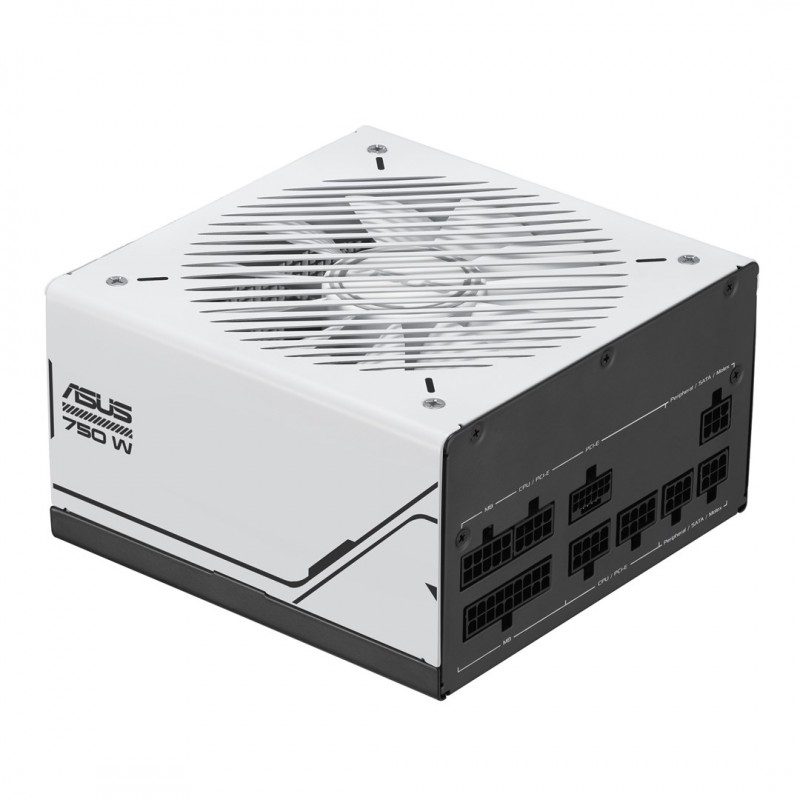

| Cabling type | Fully-Modular |
| CPU P4 connector (4-pin) | 2 |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 120 |
| SATA power cable length | 400 mm |
| Power | |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Efficiency | 92% |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Over power |
| Power protection features | Under voltage |
| Power protection features | Overcharge |
| Power protection features | Overheating |
| Total power | 750 W |
| Weight & dimensions | |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.47 kg |
| Width | 150 mm |
