Home / ///Seasonic Prime TX-1300, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1300 Watt
New Seasonic Prime TX-1300, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1300 Watt

Seasonic Prime TX-1300, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1300 Watt

No name

PRIME-TX-1300-ATX30

New product

27 Items

Shipping 2025-11-21 days

479,00 € tax incl.

Certificates
CertificationcTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Compliance certificatesRoHS
Design
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 50 °C

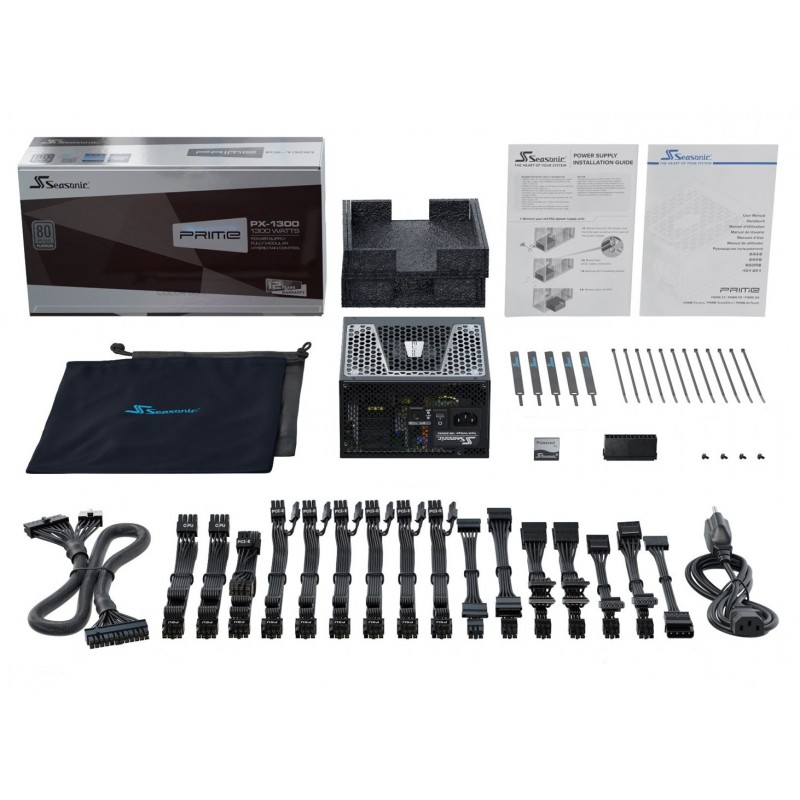

Packaging content
Cable tie(s) includedYes
Cables includedAC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Platinum
Bearing technologyFDB
Mean time between failures (MTBF)150000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeFully-Modular
CPU power connector (4+4 pin)Yes
Motherboard power cable length61 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors14
Peripheral (Molex) power connectors (4-pin)5
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)1296 W
Combined power (+3.3V)125 W
Combined power (+5V)125 W
Combined power (+5Vsb)15 W
Input current15 - 7.5 A
Max output current (-12V)0.3 A
Max output current (+12V)108 A
Max output current (+3.3V)25 A
Max output current (+5V)25 A
Max output current (+5Vsb)3 A
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOver current
Total power1300 W
Safety warning
WarningsDo not open the case - risk of electric shock.
WarningsThe product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
WarningsAvoid contact of the product with water or other liquids.
Weight & dimensions
Depth210 mm
Height86 mm
Width150 mm
