New ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

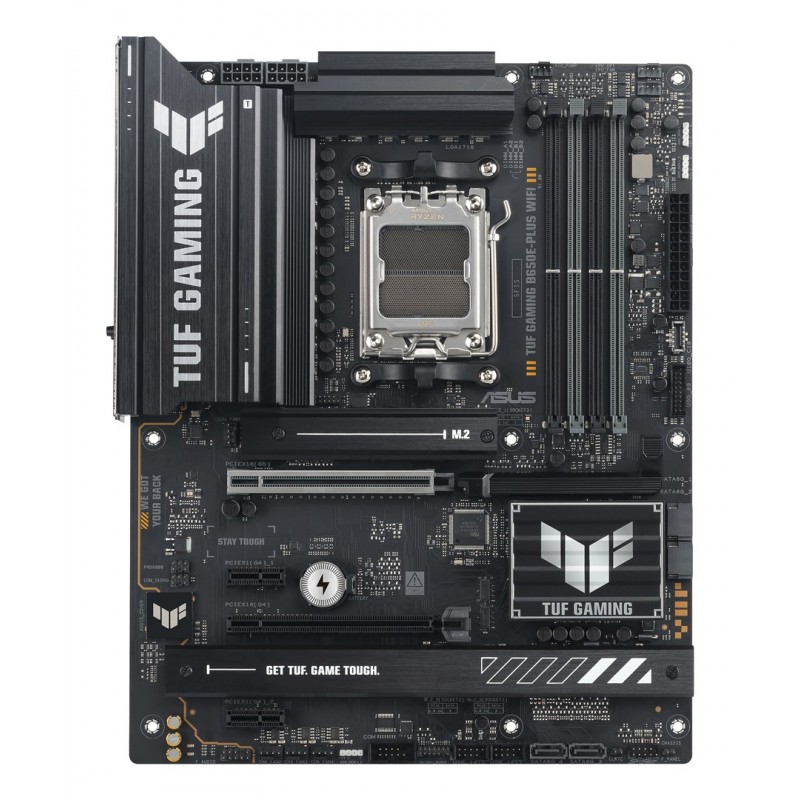

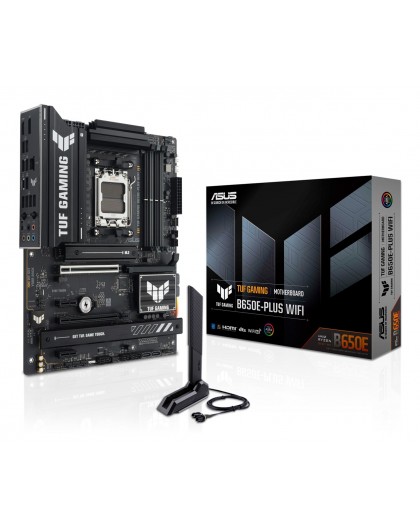

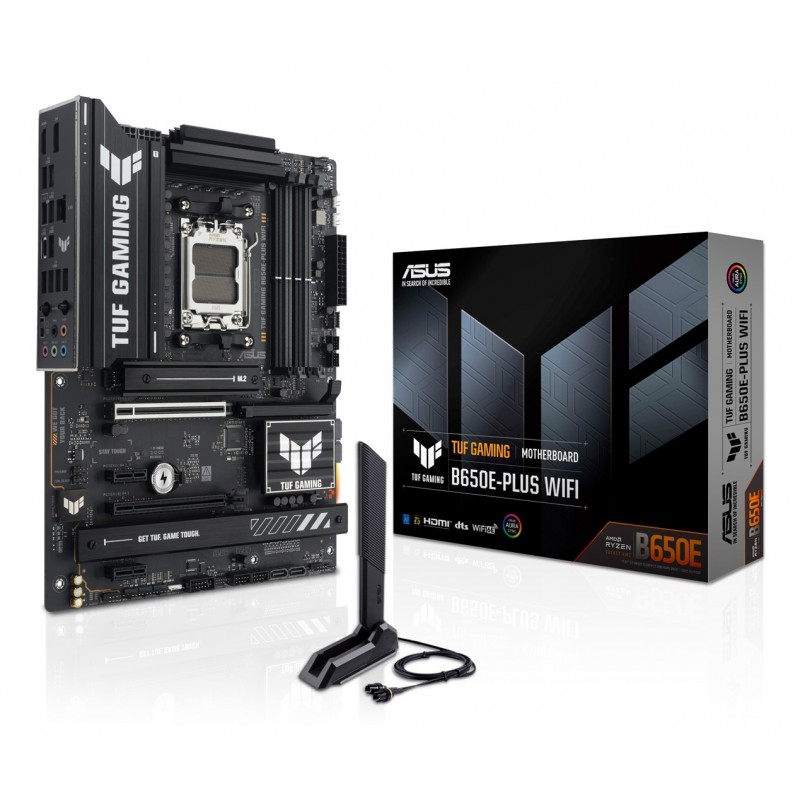

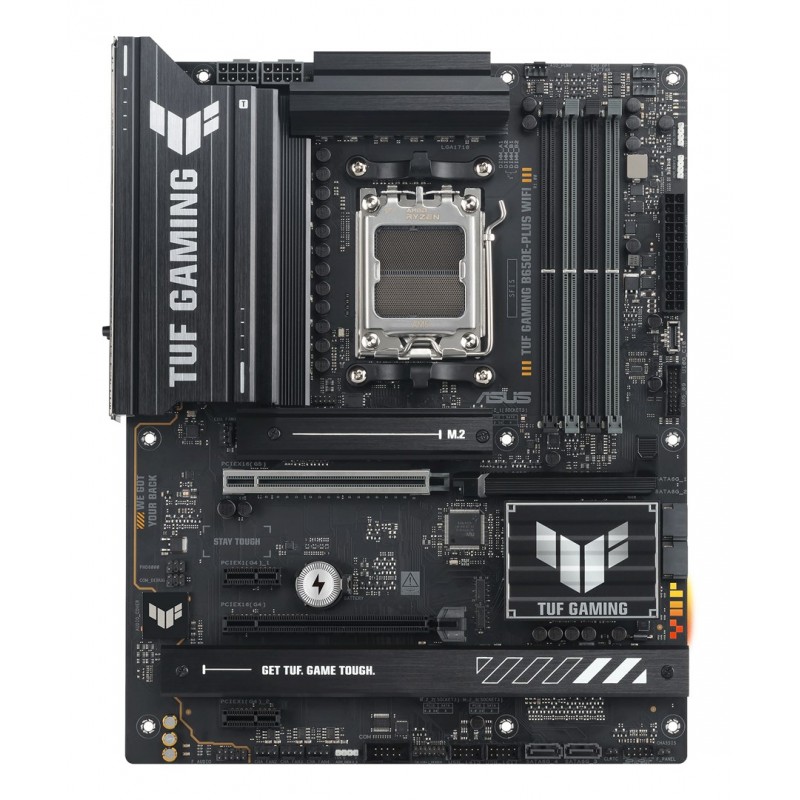

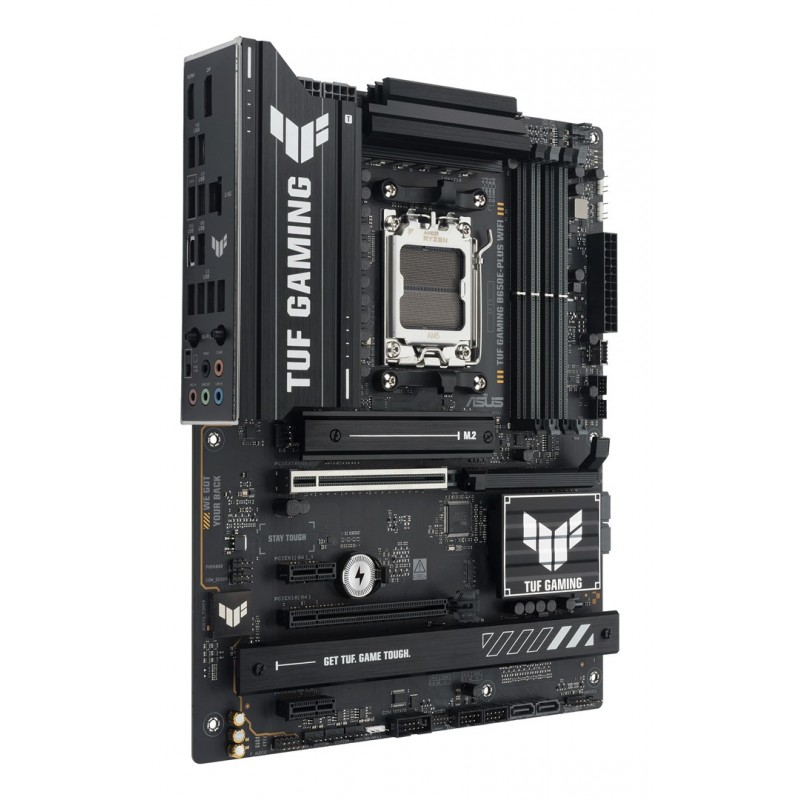

ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

ASUS

90MB1M20-M0EAY0

New product

99 Items

Shipping 2025-11-14 days

229,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
Number of M.2 (M) slots3
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Features
Audio chipRealtek ALC1220P
Audio output channels7.1 channels
Cooling typePassive
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Motherboard form factorATX
Product colourBlack
Windows operating systems supportedWindows 11
Windows operating systems supportedWindows 10 x64
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors4
Number of COM connectors1
Number of CPU fan connectors1
Number of SATA III connectors4
Thunderbolt headers1
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
Packaging content
Antenna includedYes
Cables includedSATA
Packaging data
Package depth273 mm
Package height68 mm
Package weight1.39 kg
Package width353 mm
Processor
Compatible processor seriesAMD Ryzen 8000 Series
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-inYes
Microphone inYes
USB 2.0 ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2x2 Type-C ports quantity1
WiFi-AP antenna jack1
Storage controllers
Number of HDDs supported4
Number of storage drives supported7
RAID levels10
RAID levels1
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width305 mm
