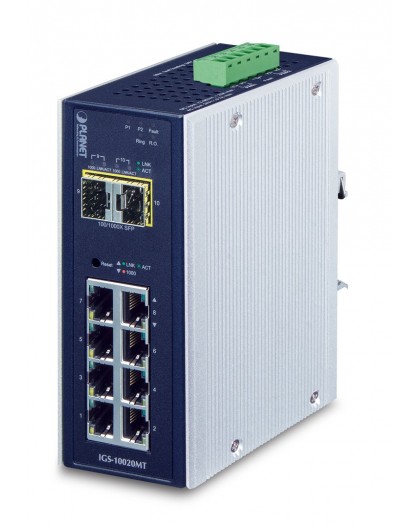

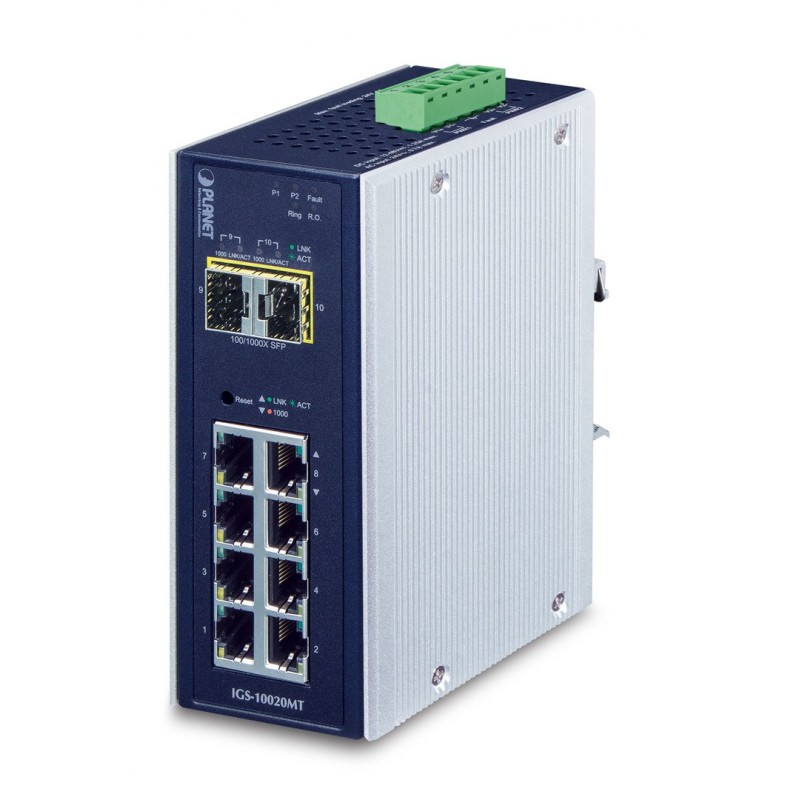

PLANET IGS-10020MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
IGS-10020MT
New product
3 Items
Shipping 2025-11-24 days
Warning: Last items in stock!
419,00 € tax incl.
| Certificates | |
| Certification | FCC Part 15 Class A, CE |
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Store-and-forward | Yes |
| Switching capacity | 26 Gbit/s |
| Throughput | 14.8 Mpps |
| Design | |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Wall mountable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| MIB support | MIB, MIB-II |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 1000BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3ah |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.1ag |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 1588 |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1ad |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3 |
| Number of VLANs | 255 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 34 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 °C |
| Performance | |
| Buffer size | 512 KB |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Protocols | |
| Management protocols | SSH, SSL, SNMP, Telnet |
| Safety warning | |
| Warnings | Avoid contact of the device with liquid. |
| Warnings | Follow the safety guidelines for electrical current. |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| Security | |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSL/TLS |
| Security algorithms | SSH |
| Security algorithms | 802.1x RADIUS |
| Weight & dimensions | |
| Depth | 87.8 mm |
| Height | 135 mm |
| Weight | 720 g |
| Width | 56 mm |
