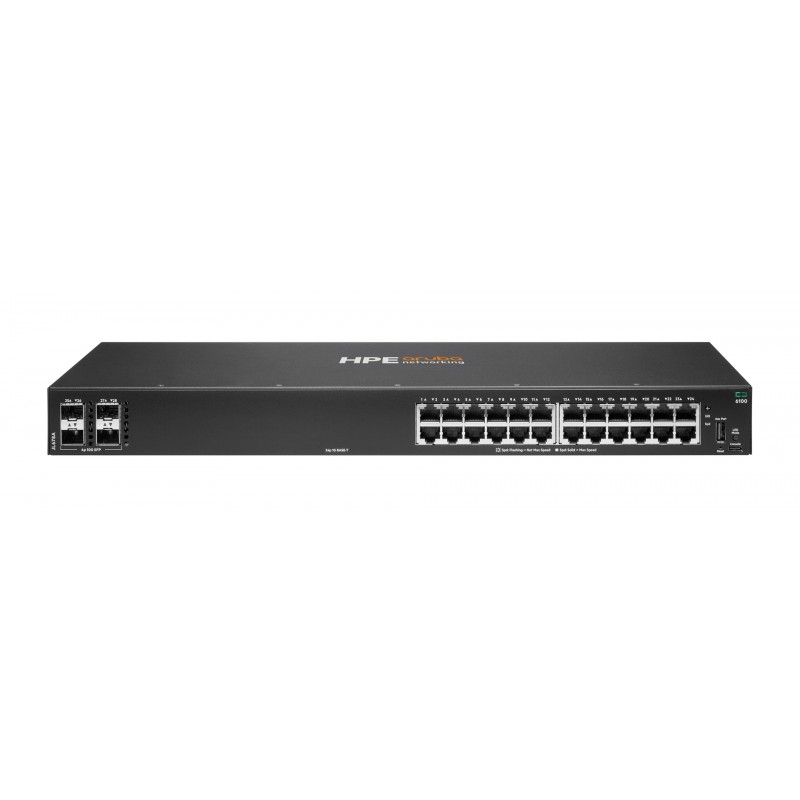

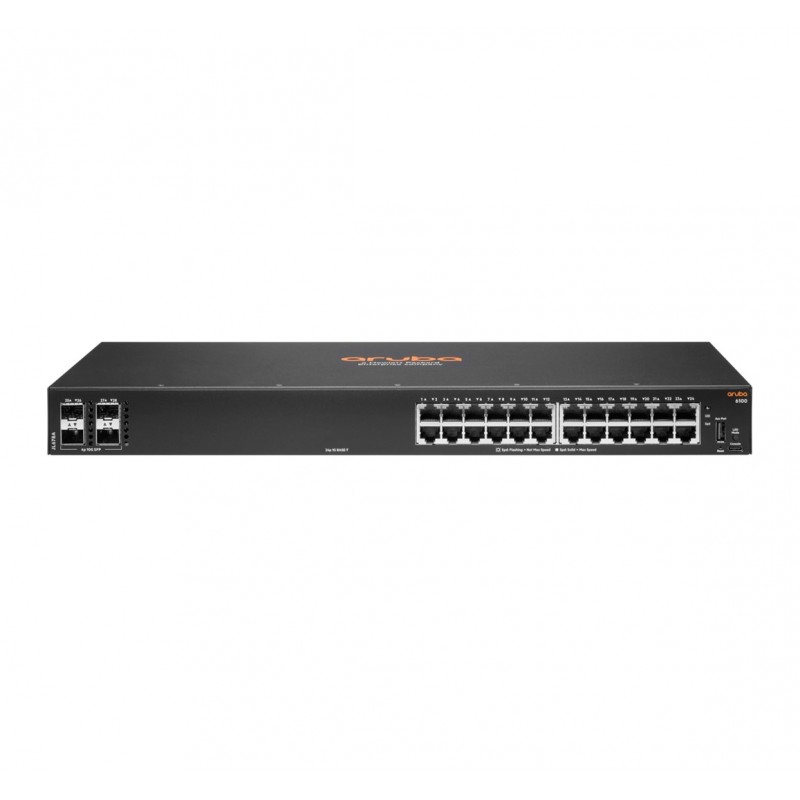

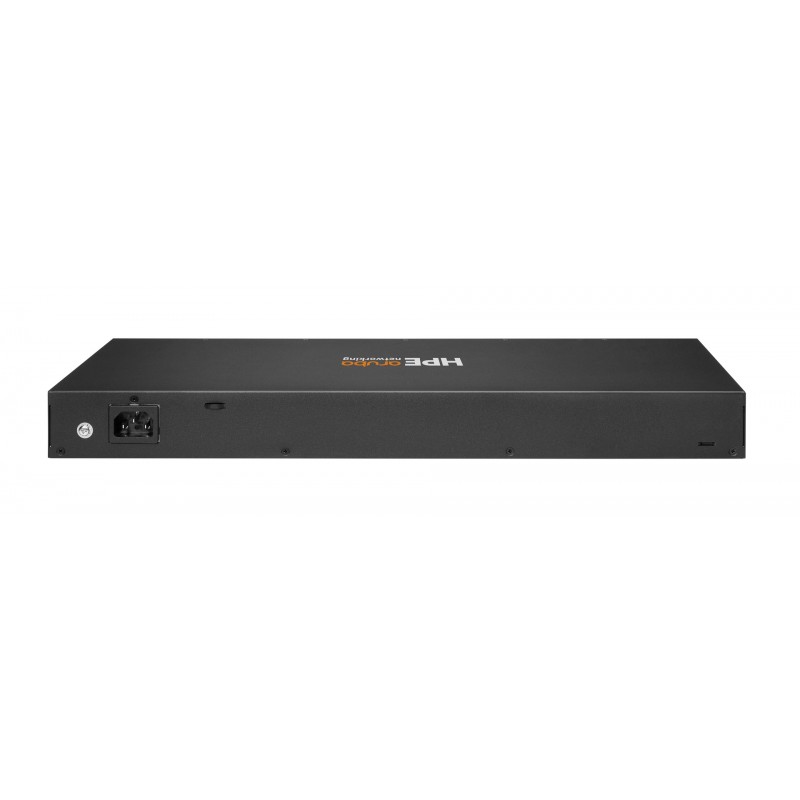

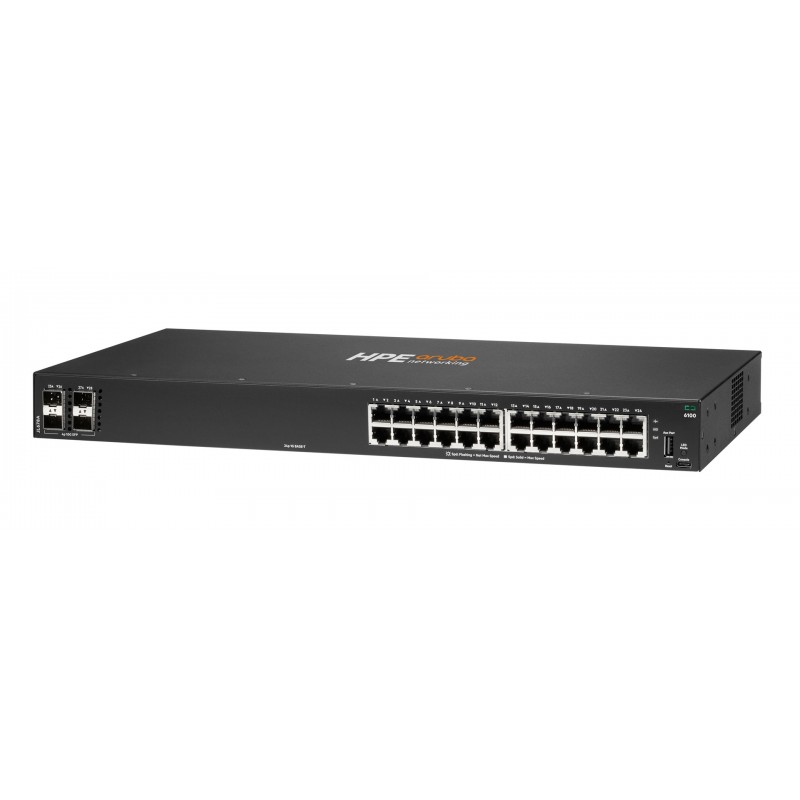

HPE Aruba Networking CX 6100 24G 4SFP+ Switch
JL678A
New product
5 Items
Shipping 2025-11-20 days
1 179,00 € tax incl.
| Data transmission | |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 1.5 µs |
| Latency (10 Gbps) | 1.8 µs |
| MAC address table | 8192 entries |
| Packet buffer memory | 12.38 MB |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Design | |
| Airflow direction | Side-to-side airflow |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1w |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 4096 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Virtual stacking (units) | 16 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| SFP+ module slots quantity | 4 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power consumption (max) | 33 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Safety warning | |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| Warnings | Follow the safety guidelines for electrical current. |
| Warnings | Avoid contact of the device with liquid. |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Weight & dimensions | |
| Depth | 442 mm |
| Height | 201 mm |
| Weight | 2.6 kg |
| Width | 44 mm |
