Новый ASRock Z890 LiveMixer WiFi - Motherboard

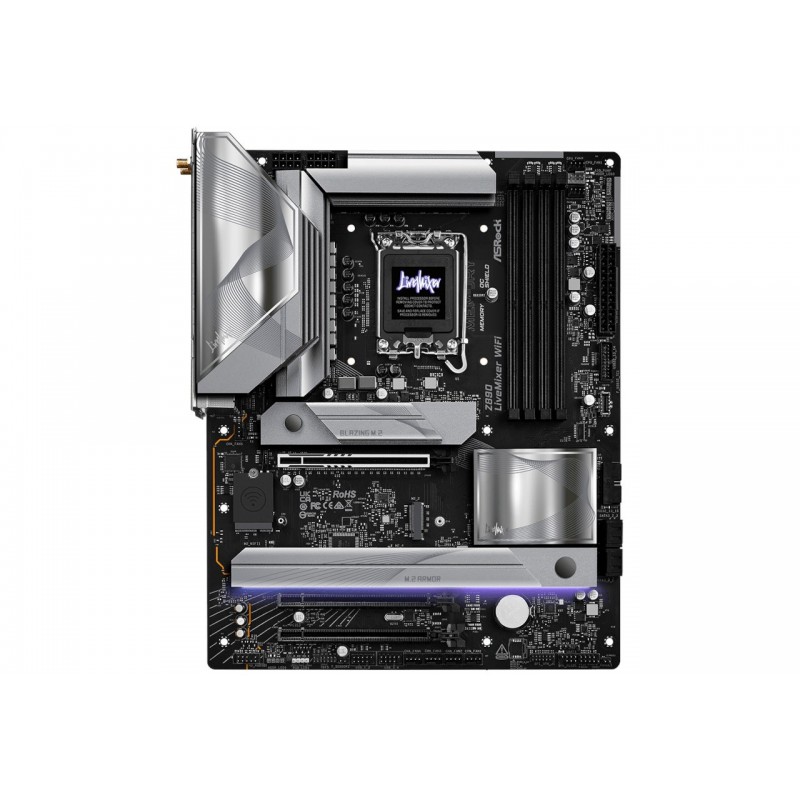

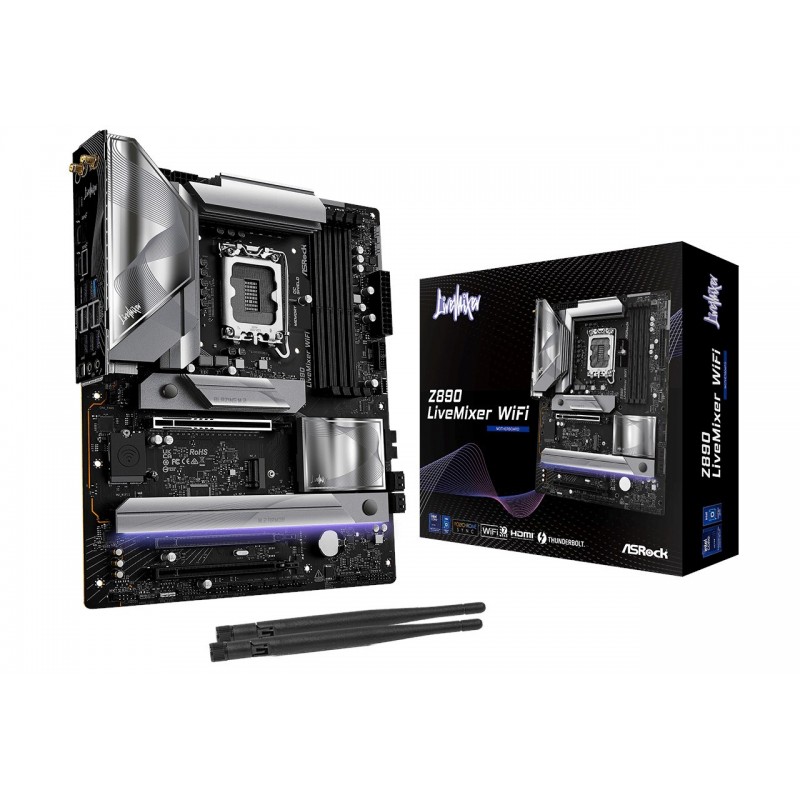

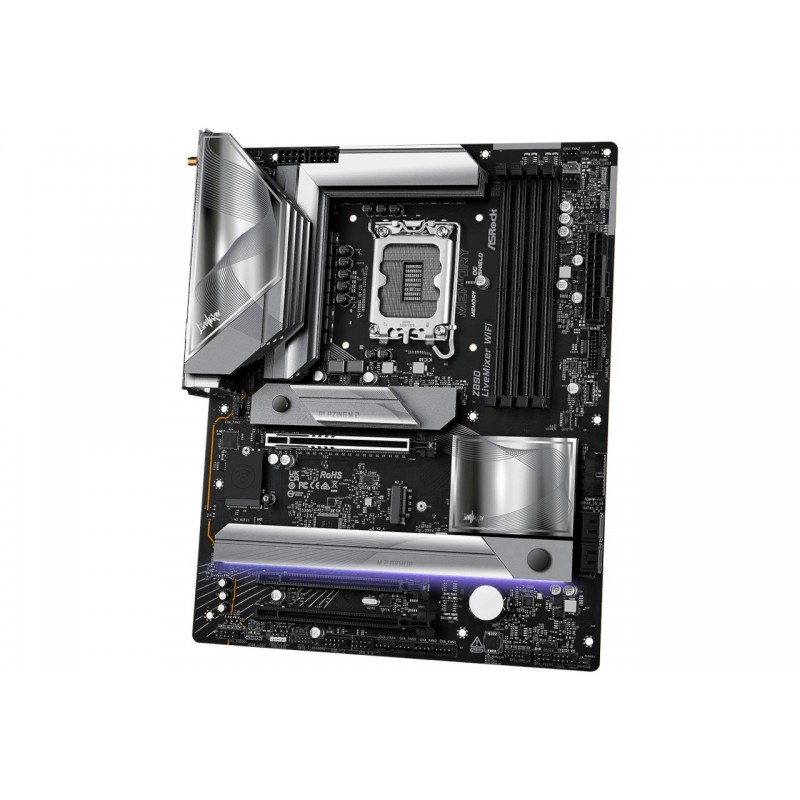

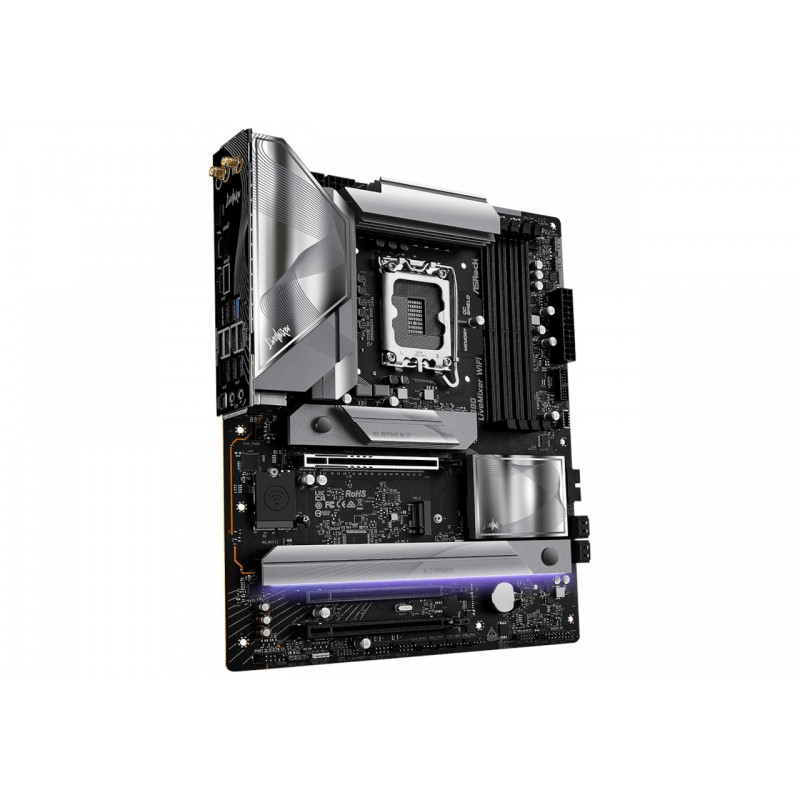

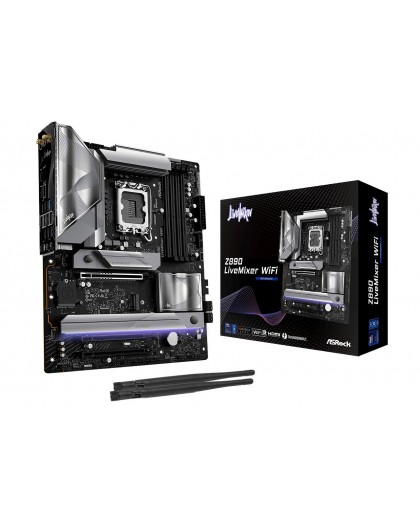

ASRock Z890 LiveMixer WiFi - Motherboard

Asrock

Z890LiveMixerWiFi

Новый продукт

10 Элементы

Shipping 2025-11-14 days

259,00 € включая налог.

BIOS
BIOS typeUEFI AMI
Expansion slots
PCI Express x16 (Gen 5.x) slots1
Features
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Motherboard chipsetIntel Z890
Motherboard chipset familyIntel
Motherboard form factorATX
Operating system architecture64-bit
Windows operating systems supportedWindows 11 x64
Internal I/O
8-pin power connector 12 V2
AIO pump fan connector1
ATX Power connector (24-pin)Yes
CPU fan connector2
Front panel audio connectorYes
LED and speaker power socket1
Number of SATA III connectors4
RGB LED pin headerYes
SPI TPM socket1
Thunderbolt 4 ports quantity2
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 Type-C ports quantity1
Memory
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)9066 MHz
Supported memory typesDDR5 non-ECC
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerDragon RTL8125BG
MU-MIMOYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standards802.11g
Wi-Fi standards802.11 axe
Wi-Fi standards802.11a
Wi-Fi standards802.11b
Wi-Fi standardsWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 7 (802.11be)
Processor
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)

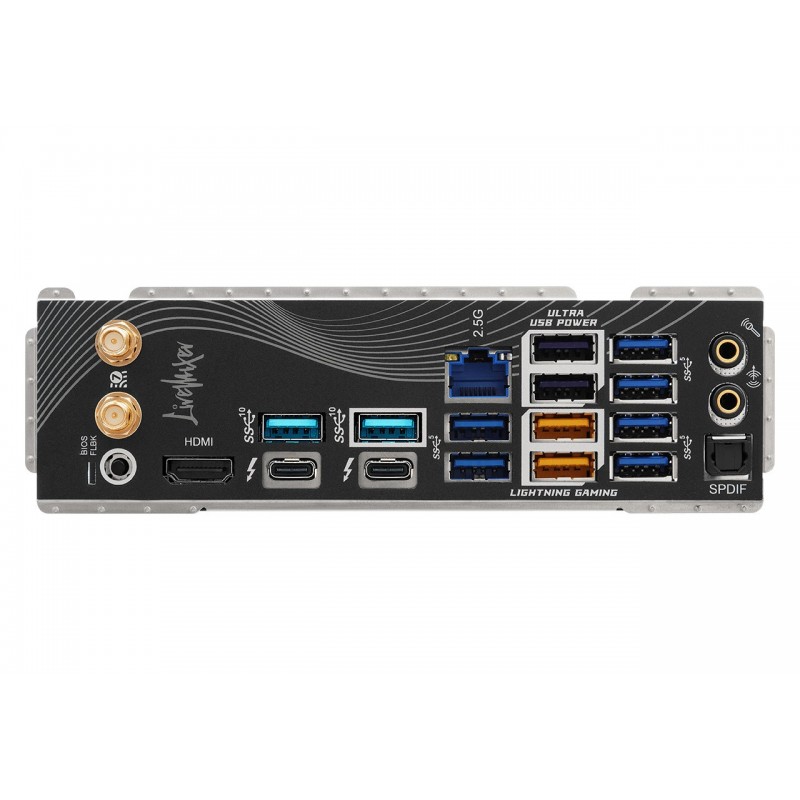

Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
External antenna connectorYes, x 2
Flashback BIOS buttonYes
HDMI ports quantity1
Line-outYes
MIC input1
Microphone inYes
Number of USB 3.2 Gen 1 ports4
S/PDIF out portYes
Thunderbolt 4 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Storage controllers
Supported storage drive interfacesBlazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
