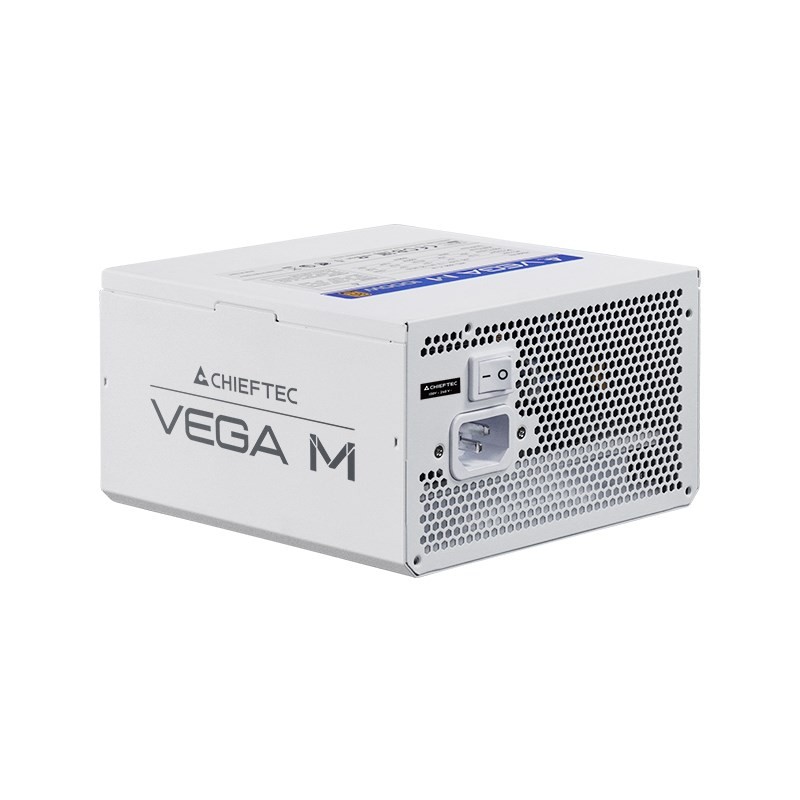

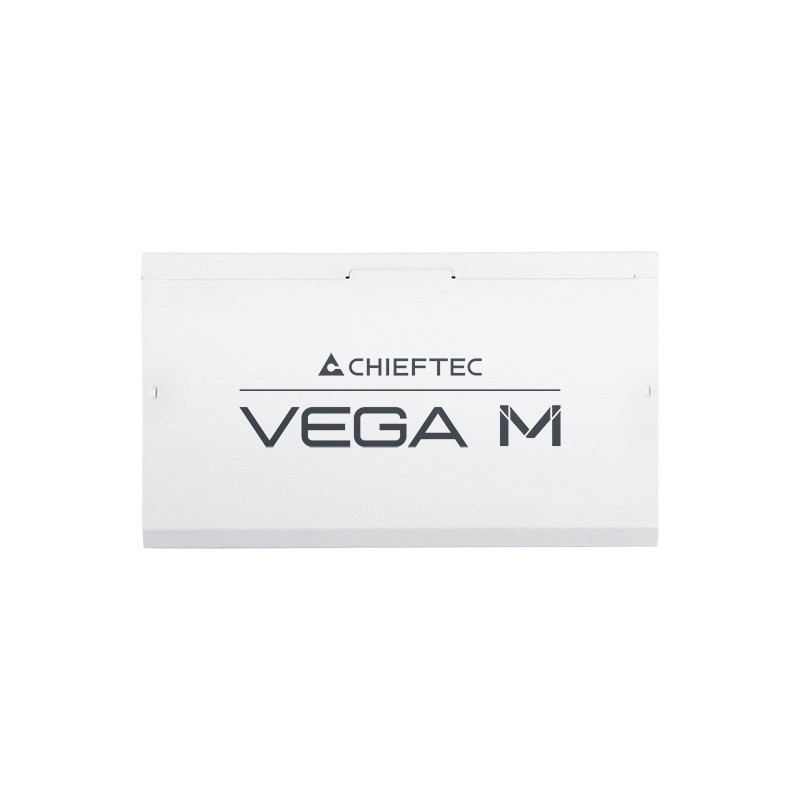

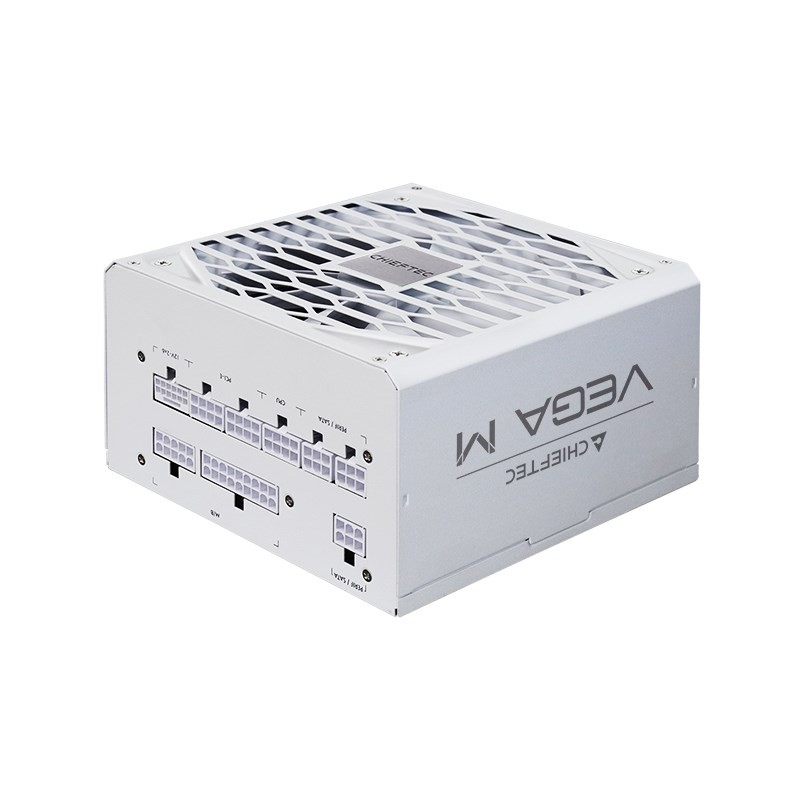

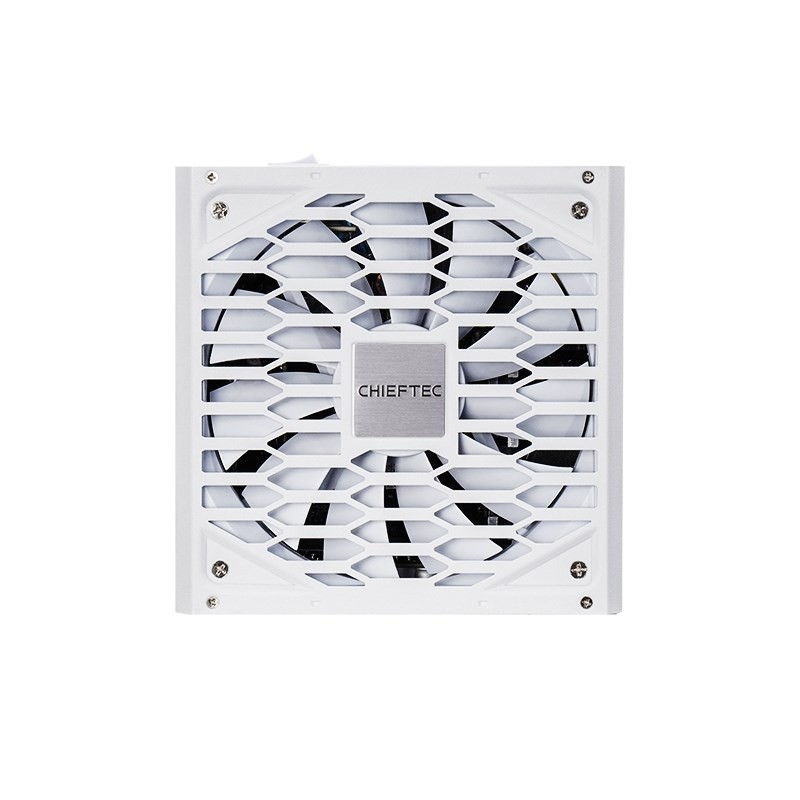

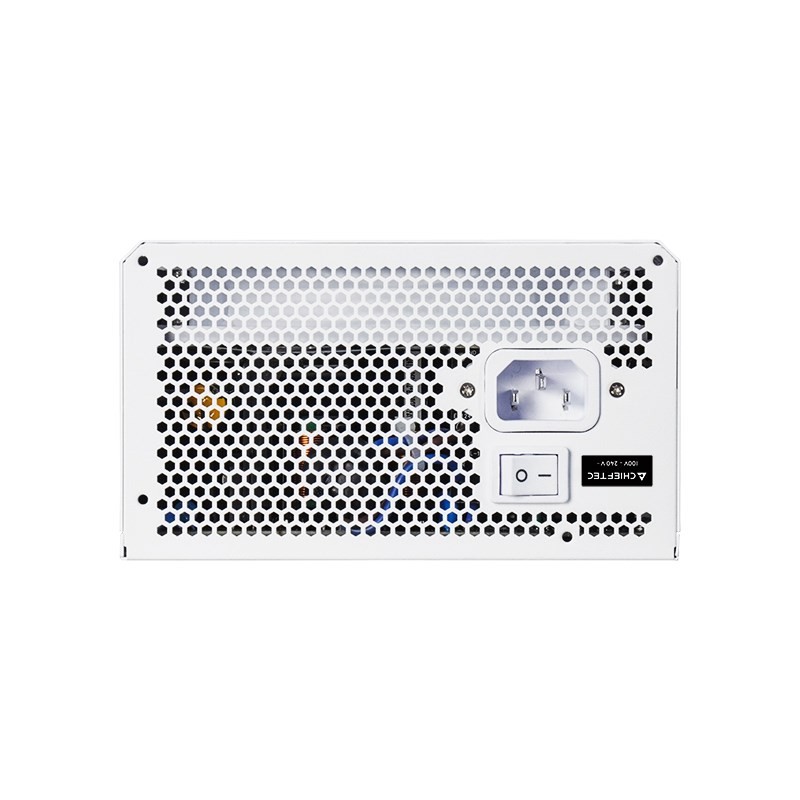

Chieftec Vega PPG-1000-CW power supply unit 1000 W 24-pin ATX ATX White
PPG-1000-CW
Новый продукт
18 Элементы
Shipping 2025-11-24 days
149,00 € включая налог.
| Certificates | |
| Certification | 80PLUS Gold |
| Design | |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Illumination | No |
| Product colour | White |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 24-pin ATX |
| Number of EPS connectors | 2 |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 400 mm |
| SATA power cable length | 150 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Input current | 12 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Surge and inrush |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Overload |
| Total power | 1000 W |
| Weight & dimensions | |
| Depth | 150 mm |
| Height | 85 mm |
| Width | 150 mm |
