Home / ///Zyxel WAC500H 1200 Mbit/s White Power over Ethernet (PoE)
New Zyxel WAC500H 1200 Mbit/s White Power over Ethernet (PoE)

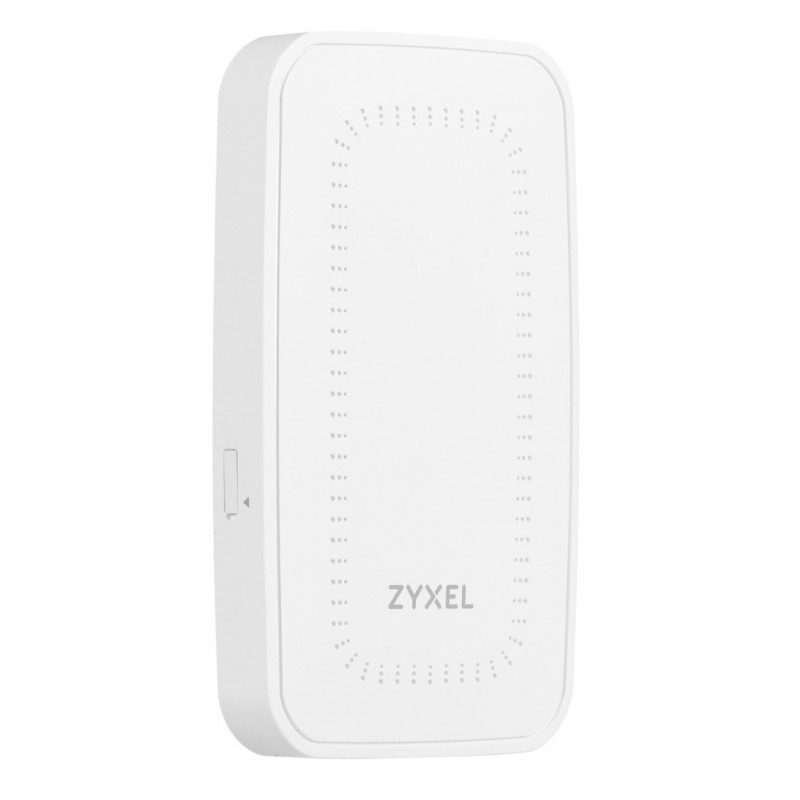

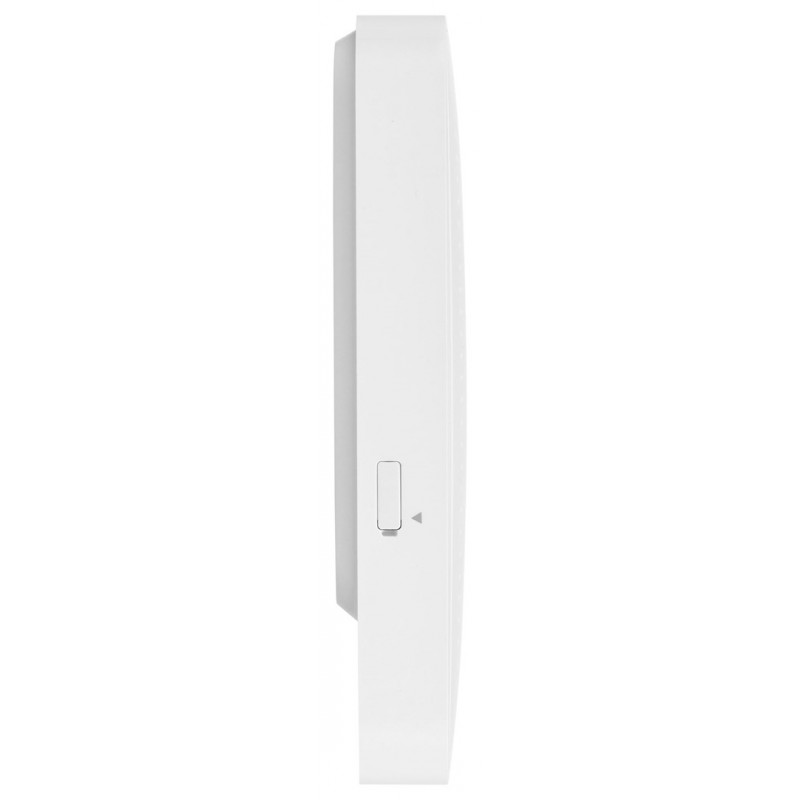

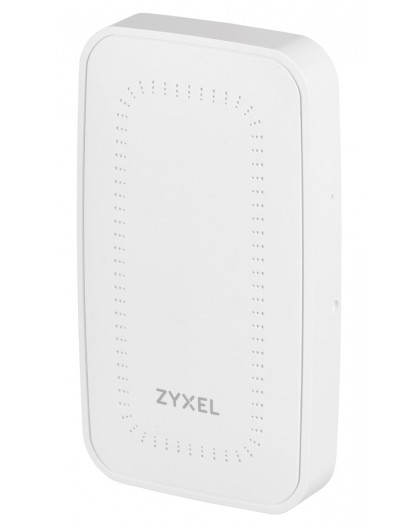

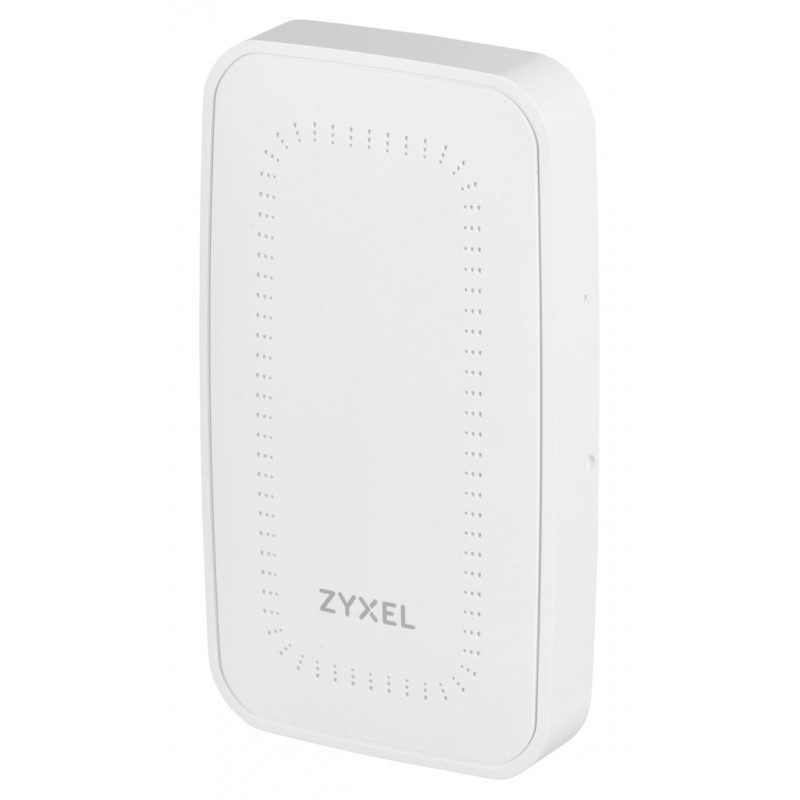

Zyxel WAC500H 1200 Mbit/s White Power over Ethernet (PoE)

ZyXEL

WAC500H-EU0101F

New product

10 Items

Shipping 0001-01-05 days

139,00 € tax incl.

Antenna
Antenna gain level (max)4 dBi
Antenna typeInternal
Certificates
CertificationFCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Design
PlacementWall
Product colourWhite
Features
2.4 GHzYes
5 GHzYes
Band steeringYes
Channel bandwidth80 MHz
Ethernet LAN data rates100
Ethernet LAN data rates10
Ethernet LAN data rates1000 Mbit/s
Fast roamingYes
Maximum data transfer rate1200 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)866 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Networking standardsIEEE 802.11g
Networking standardsIEEE 802.11n
Networking standardsIEEE 802.11k
Networking standardsIEEE 802.11r
Networking standardsIEEE 802.11v
Networking standardsIEEE 802.1x
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.11a
Networking standardsIEEE 802.3af
Networking standardsIEEE 802.11ac
Networking standardsIEEE 802.11b
Receiver sensitivity-99 dBm
Transmitting power26 dBmW
VLAN supportYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Wireless isolationYes
Logistics data
Harmonized System (HS) code85176990
Management features
Command-line interface (CLI)Yes
Web-based managementYes
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)10 - 90%
Storage temperature (T-T)-30 - 70 °C
Packaging content
Mounting kitYes
Quantity per pack1 pc(s)
Packaging data
Package depth120 mm
Package height53 mm
Package weight444 g
Package width195 mm

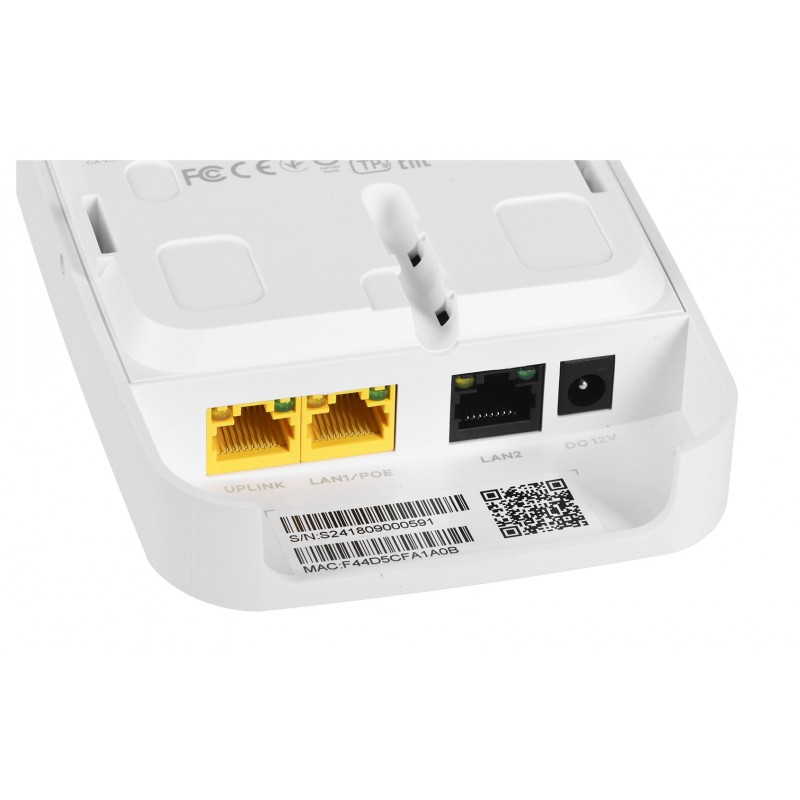

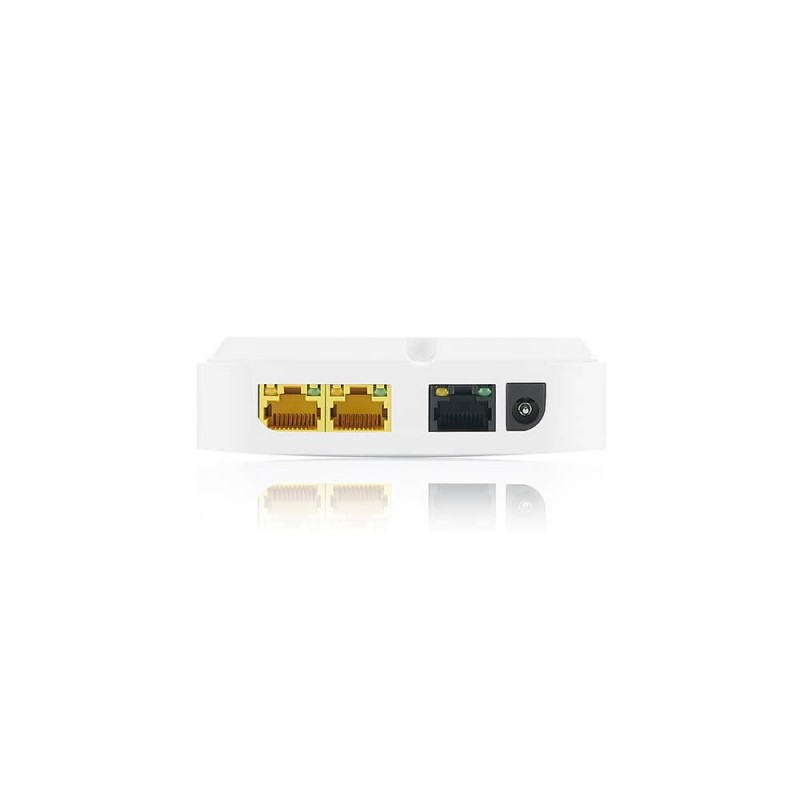

Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports3
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current0.3 A
Output current1 A
Output voltage12 V
Power over Ethernet (PoE)Yes
Security
Auto Wireless Distribution System (WDS)Yes
MAC address filteringYes
Security algorithmsWPA2-PSK
Security algorithmsSNMP
Security algorithmsWPA
Security algorithmsWPA3
Security algorithmsWPA2-Enterprise
Security algorithmsEAP
Security algorithmsWEP
Weight & dimensions
Depth97 mm
Height29 mm
Weight223 g
Width173 mm
