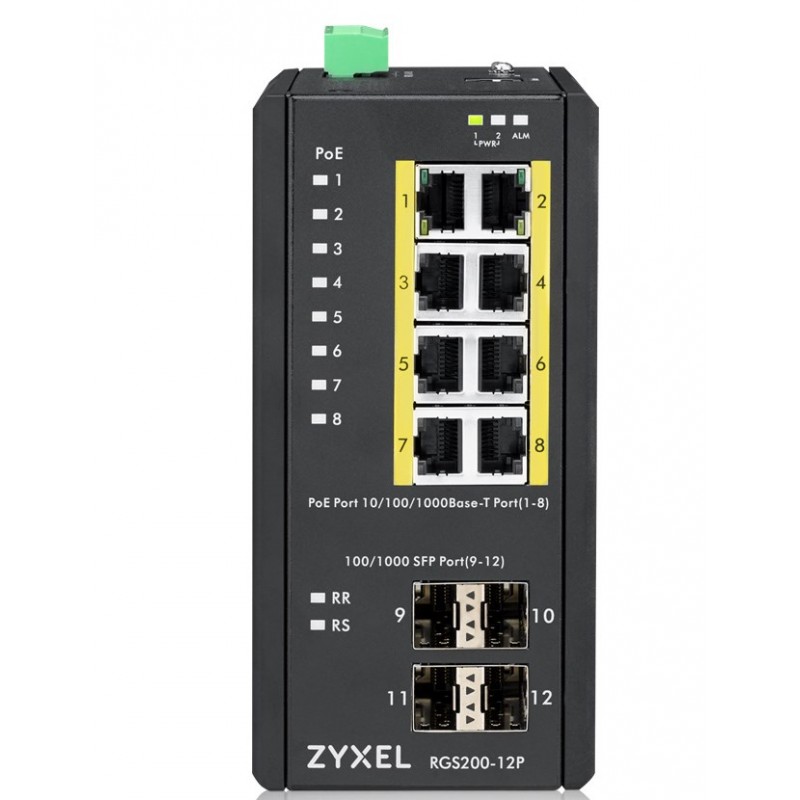

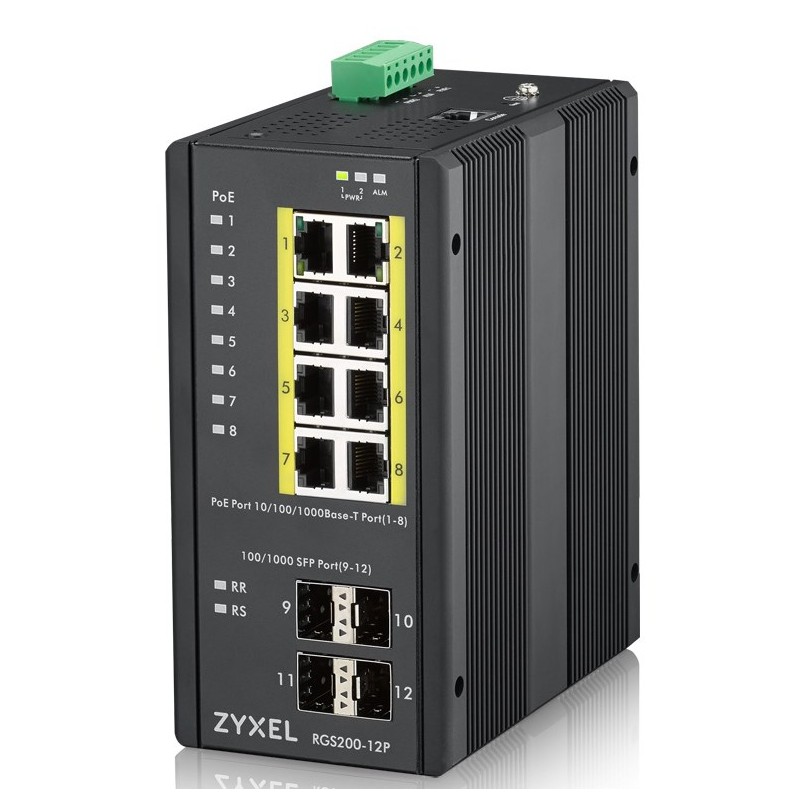

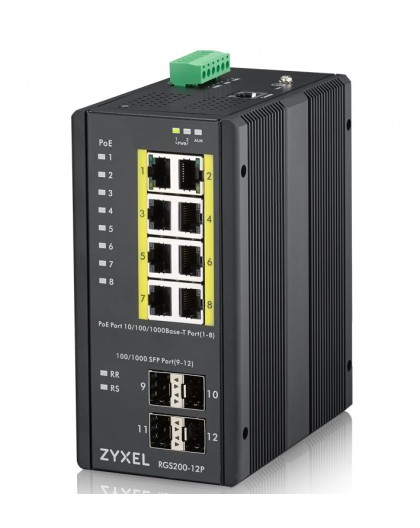

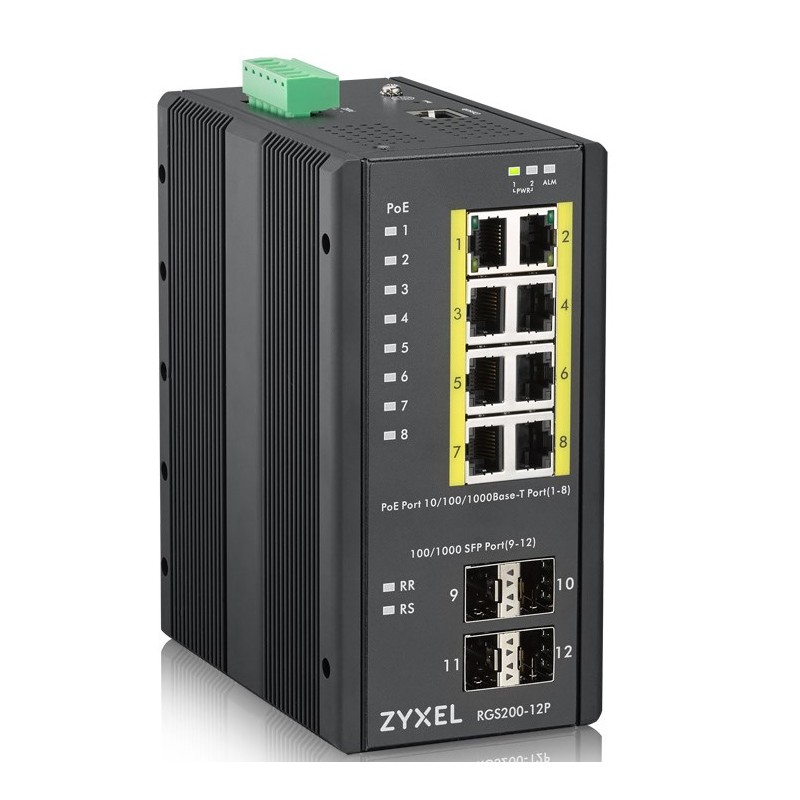

Home / ///Zyxel RGS200-12P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
New Zyxel RGS200-12P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Zyxel RGS200-12P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

ZyXEL

RGS200-12P-ZZ0101F

New product

1 Item

Shipping 0001-01-05 days

Warning: Last items in stock!

1 159,00 € tax incl.

Data transmission
Jumbo frames9000
Jumbo frames supportYes
MAC address table8000 entries
Number of queues8
Packet buffer memory0.5 MB
Store-and-forwardYes
Switching capacity24 Gbit/s
Throughput17.86 Mpps
Design
DIN rail mountingYes
Housing materialMetal
International Protection (IP) codeIP30
Product colourBlack
Rack mountingYes
Wall mountableYes
Logistics data
Harmonized System (HS) code85176990
Management features
ARP inspectionYes
MIB supportRFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
System event logYes
Web-based managementYes
Multicast features
Multicast supportYes
Network
10G supportNo
Auto-negotiationYes
Broadcast storm controlYes
Copper ethernet cabling technology100BASE-TX
Copper ethernet cabling technology1000BASE-T
Copper ethernet cabling technology10BASE-T
Flow control supportYes
Full duplexYes
Link aggregationYes
Networking standardsIEEE 802.3
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.1p
Networking standardsIEEE 802.3af
Networking standardsIEEE 802.1ab
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.1Q
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.3ad
Networking standardsIEEE 802.1s
Networking standardsIEEE 802.1D
Networking standardsIEEE 802.3z
Networking standardsIEEE 802.3u
Number of VLANs1024
Port mirroringYes
Rate limitingYes
Virtual LAN featuresTagged VLAN
VLAN supportYes
Operational conditions
Heat dissipation86955 BTU/h
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 85 °C
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Transmission distance (max)40 km
Packaging data
Package depth192 mm
Package height238 mm
Package weight1.9 kg
Package width133 mm
Rack mount kitYes
Wall mounting kitYes
Performance
Buffer size512 KB
Firmware upgradeableYes
Mean time between failures (MTBF)568430 h
Plug and PlayYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fiber optic connectorSFP
SFP module slots quantity4
Power
DC input voltage12 - 58 V
Input voltage12 - 58 V
Power consumption (max)255 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget240 W
Security
Access Control List (ACL)Yes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
IGMP snoopingYes
MAC address filteringYes
Security algorithmsSSH-2
Security algorithmsSNMP
Security algorithmsHTTPS
Security algorithms802.1x RADIUS
SSH/SSL supportYes
Weight & dimensions
Depth127.3 mm
Height154 mm
Weight1.45 kg
Width77 mm
