Home / ///Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX
New Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

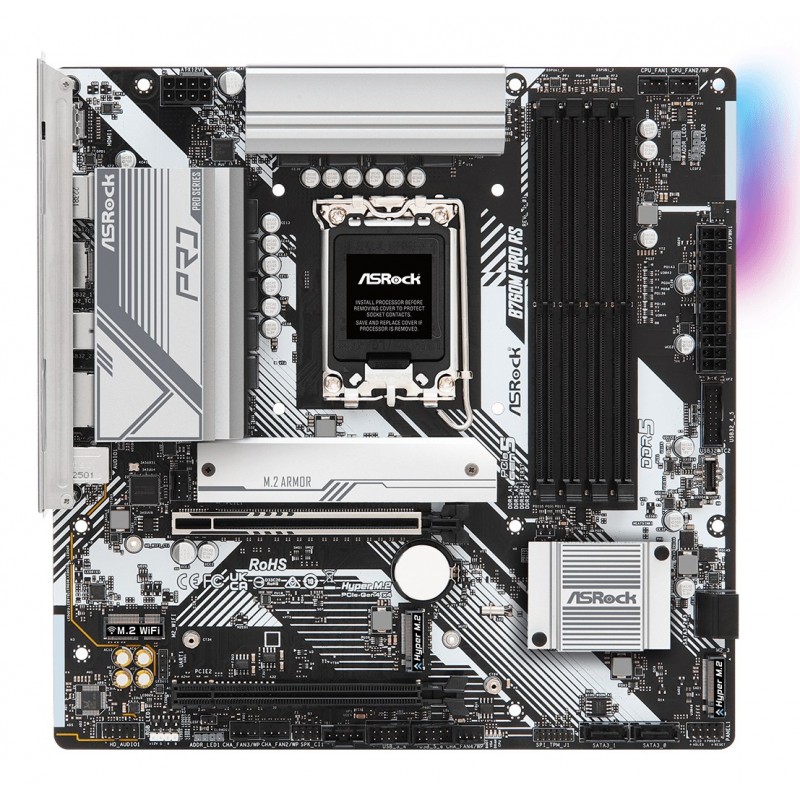

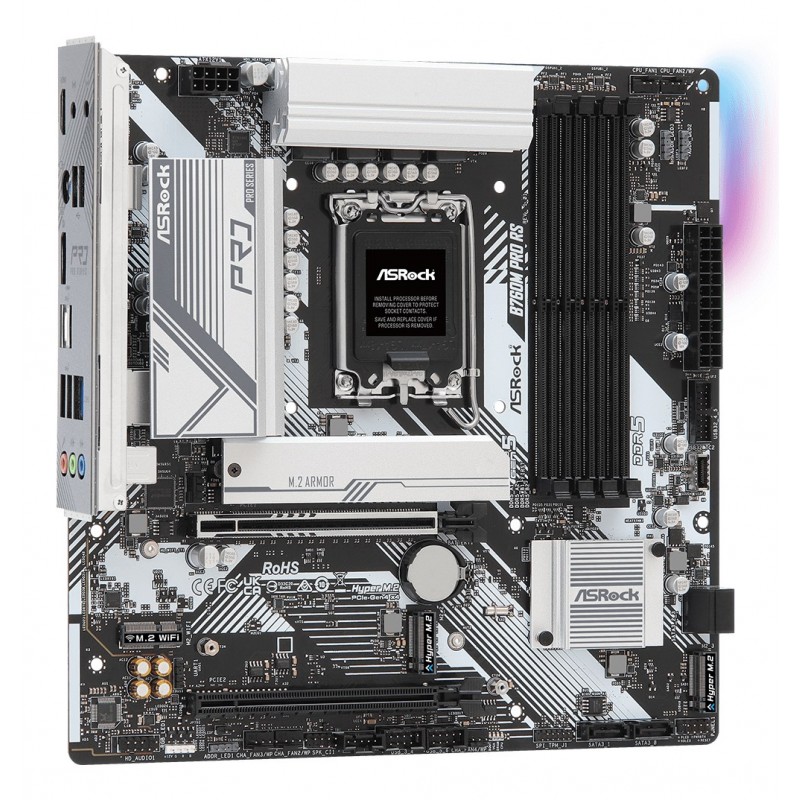

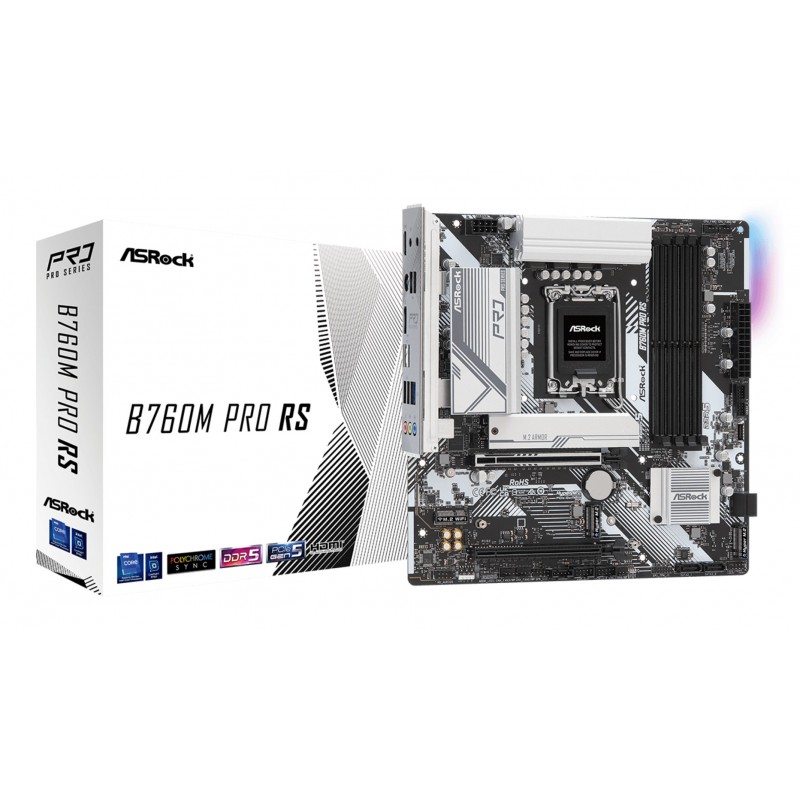

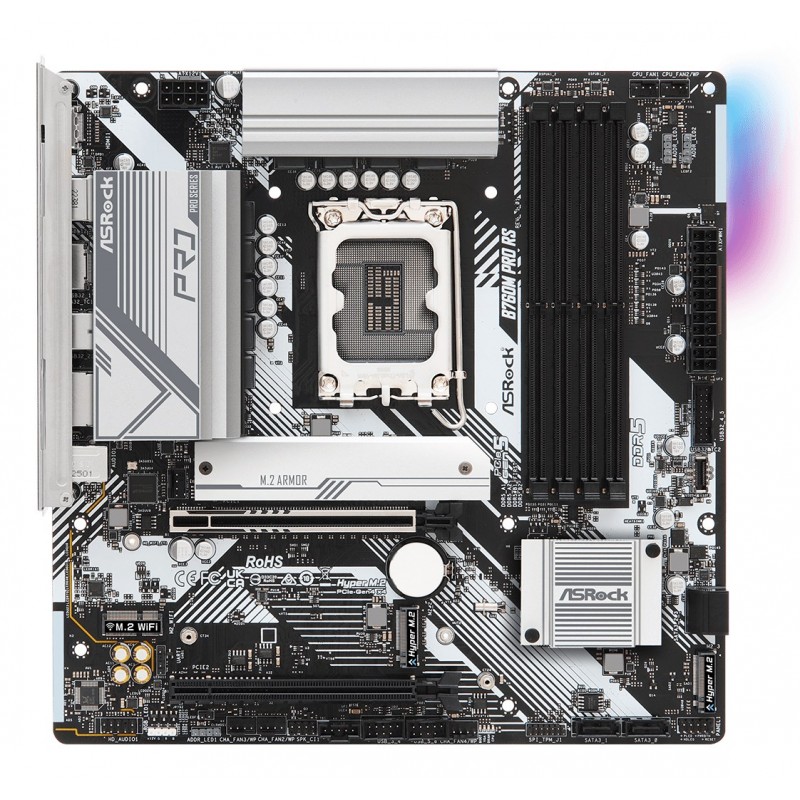

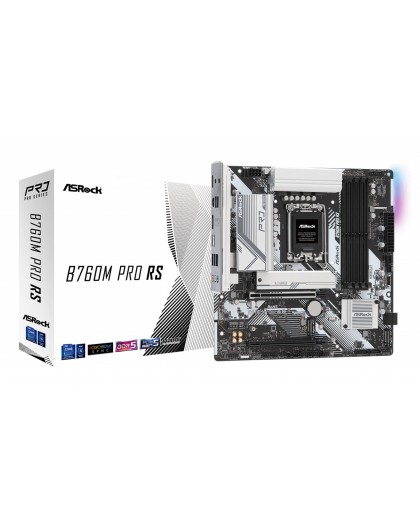

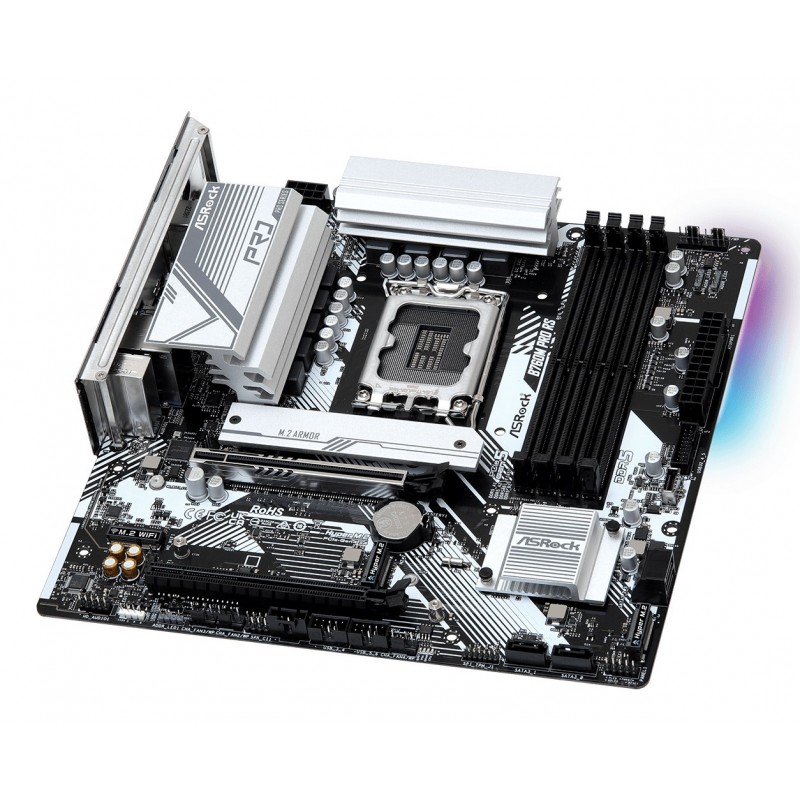

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

Asrock

B760MPRORS

New product

18 Items

Shipping 2025-11-14 days

129,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
Thunderbolt headers1
TPM connectorYes
USB 2.0 connectors6
Memory
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125-BG
Wi-FiNo
Processor
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Core™ i5
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-inYes
Microphone inYes
PS/2 ports quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Storage controllers
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width244 mm
