New TP-Link 24-Port Gigabit Rackmount Network Switch

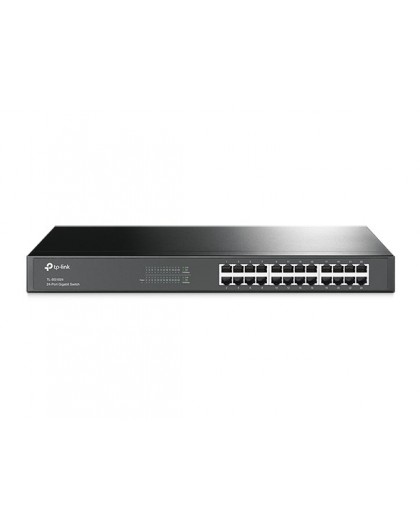

TP-Link 24-Port Gigabit Rackmount Network Switch

TP-LINK

TL-SG1024

New product

70 Items

Shipping 2025-11-17 days

99,00 € tax incl.

Data transmission
Forwarding rate35.7 Mpps
Jumbo frames10000
Jumbo frames supportYes
MAC address table8000 entries
Maximum data transfer rate1 Gbit/s
Store-and-forwardYes
Supported data transfer rates10/100/1000 Mbps
Switching capacity48 Gbit/s
Design
CertificationFCC, CE, RoHS
Form factor1U
LED indicatorsYes
Product colourBlack
Rack mountingYes
Management features
Quality of Service (QoS) supportYes
Switch typeUnmanaged
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Copper ethernet cabling technology100BASE-TX
Copper ethernet cabling technology10BASE-T
Copper ethernet cabling technology1000BASE-T
Flow control supportYes
Full duplexYes
Half duplexYes
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.3i
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.3u
Operational conditions
Heat dissipation46.44 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)32 - 104 °F
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Other features
Bandwidth48 Gbit/s
Connectivity LEDsY
Connectivity technologyWired
Dimensions (W x D x H) (imperial)439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
Packaging data
Cables includedAC
Package depth528 mm
Package height80 mm
Package weight2.13 kg
Package width250 mm
Rack mount kitYes
User guideYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power consumption (max)13.62 W
Power sourceAC
Power supply includedYes
Protocols
Supported network protocolsCSMA/CD, TCP/IP
Weight & dimensions
Depth180 mm
Height44 mm
Width440 mm
