Home / ///PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
New PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

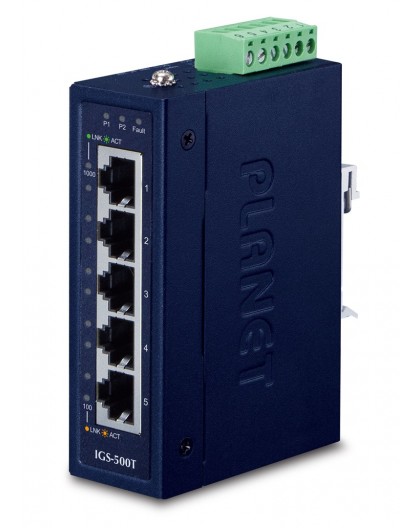

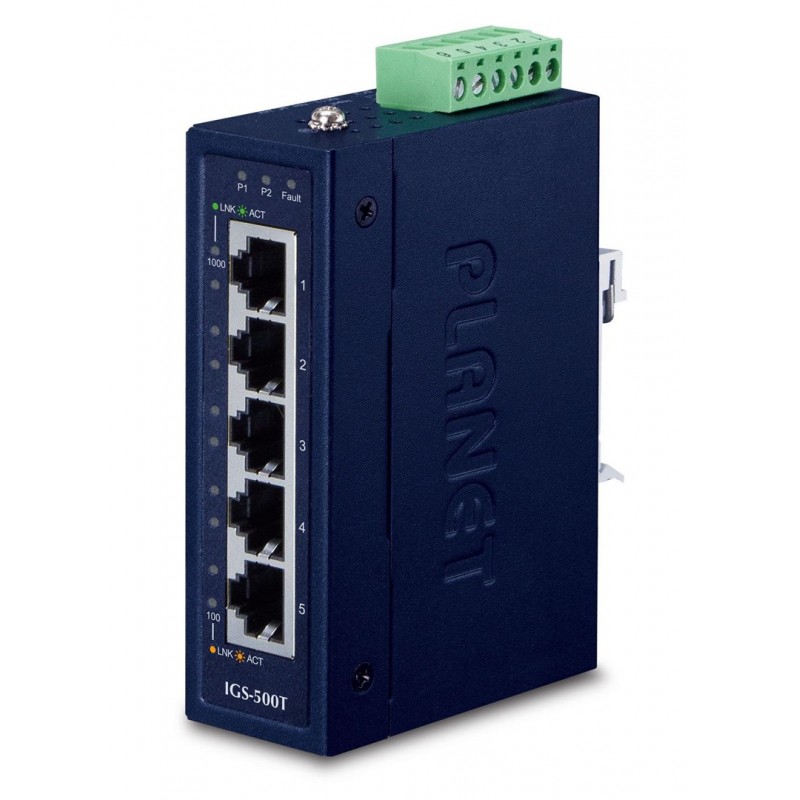

PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

Planet

IGS-500T

New product

22 Items

Shipping 2025-11-20 days

99,00 € tax incl.

Certificates
CertificationFCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Data transmission
Jumbo frames9000
Jumbo frames supportYes
MAC address table4000 entries
Packet buffer memory1 MB
Store-and-forwardYes
Switching capacity10 Gbit/s
Throughput7.4 Mpps
Design
DIN rail mountingYes
Housing materialMetal
International Protection (IP) codeIP30
LED indicatorsYes
Product colourBlue
Wall mountableYes
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeUnmanaged
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable types supportedCat5
Cable types supportedCat5e
Cable types supportedCat6
Cable types supportedCat4
Cable types supportedCat3
Flow control supportYes
Full duplexYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.1p
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3az
Operational conditions
Heat dissipation12.35 BTU/h
Operating relative humidity (H-H)5 - 90%
Operating temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 75 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Power
DC input voltage24 V
Power consumption (typical)3.6 W
Redundant power supply (RPS) supportYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Weight & dimensions
Depth70 mm
Height104 mm
Weight252 g
Width30 mm
