New TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

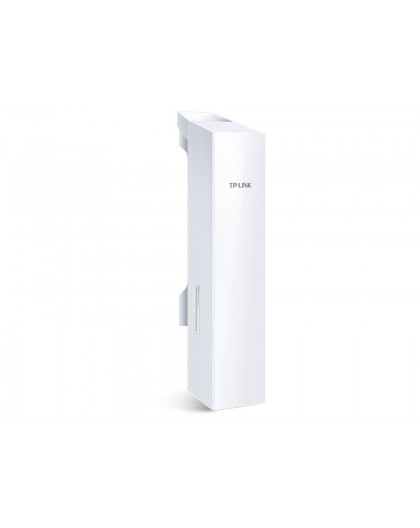

TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

TP-LINK

CPE220

New product

9 Items

Shipping 2025-11-20 days

69,00 € tax incl.

Antenna
Antenna featuresIntegrated antenna
Antenna gain level (max)12 dBi
Antenna typeInternal
Antennas quantity2
Certificates
Certification- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Design
InternalNo
International Protection (IP) codeIPX5
LED indicatorsPower
Product colourWhite
Reset buttonYes
Features
2.4 GHzYes
5 GHzNo
Automatic channel selectionYes
Bandwidth2.4 GHz
Channel bandwidth40 MHz
Channels quantity5 channels
Frequency band2.4 - 2.483 GHz
Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11g
Networking standardsIEEE 802.11n
Networking standardsIEEE 802.11b
RTS/CTS thresholdYes
VLAN supportYes
Wi-Fi data rate (max)300 Mbit/s
Management features
Management platformPharos Control
Web-based managementYes
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 70 °C
Packaging content
AC adapter includedYes
Mounting kitYes
Quick start guideYes
Performance
Built-in processorYes
Flash memory8 MB
Internal memory64 MB
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Internal RJ-45 ports quantity1
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current0.8 A
Output current1 A
Output voltage24 V
Power consumption (max)10.8 W
Power over Ethernet (PoE)Yes
Protocols
DHCP clientYes
Management protocolsTDMA
Universal Plug and Play (UPnP)Yes
Security
Auto Wireless Distribution System (WDS)Yes
IGMP snoopingYes
IP address filteringYes
MAC address filteringYes
Number of SSID supported1
Security algorithmsSSH
Security algorithms152-bit WEP
Security algorithms64-bit WEP
Security algorithmsWPA2
Security algorithms128-bit WEP
Security algorithmsTKIP
Security algorithmsSNMP
Security algorithmsAES
Security algorithmsHTTPS
Security algorithmsWPA
Security algorithmsWPA2-PSK
Security algorithmsWPA-PSK
Security algorithmsSSID
Service Set Identifier (SSID) featuresSSID broadcast on/off
Weight & dimensions
Depth57 mm
Height33.5 mm
Width110 mm
