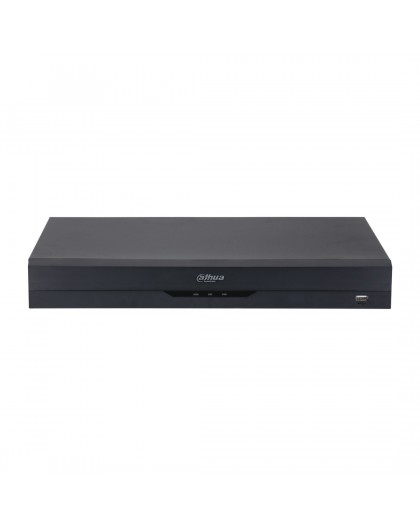

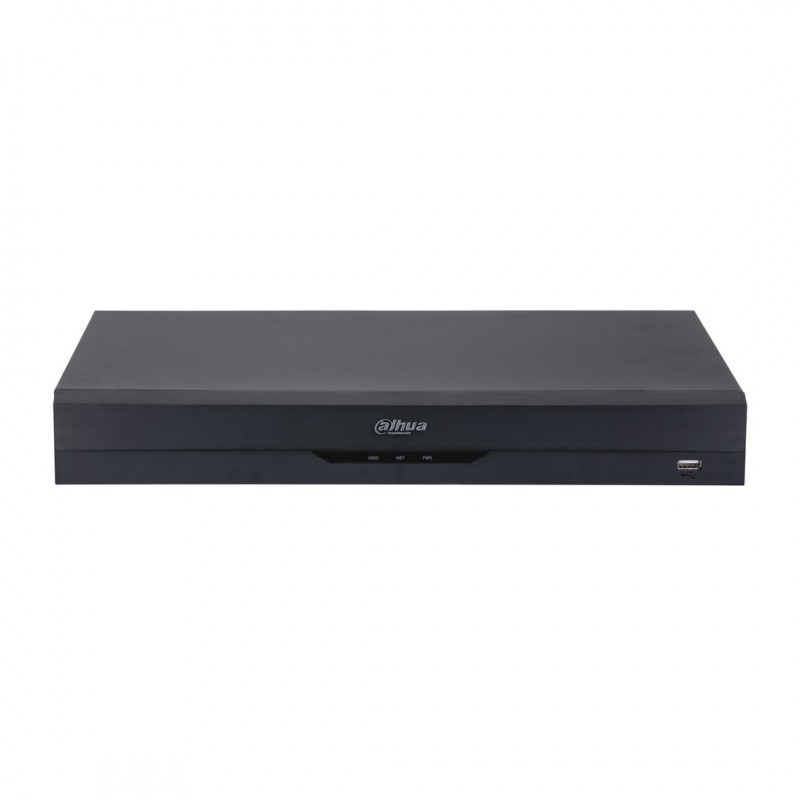

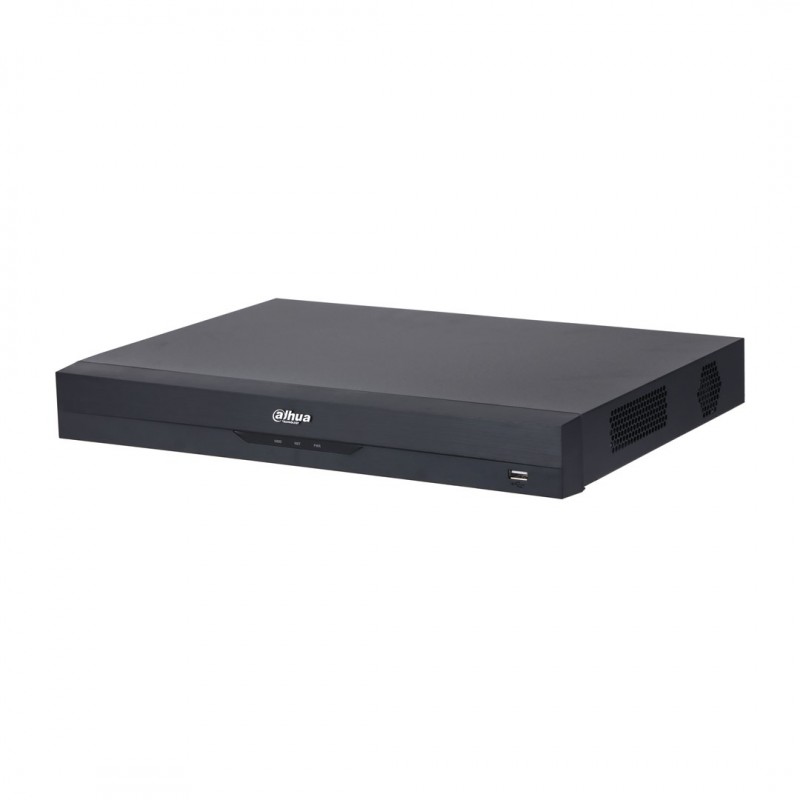

Dahua Analog Recorder. 128 Mbps, H.265/H.265+ compression, AI encoding, 16 analog channels (HDCVI, AHD, TVI, CVBS) XVR5216AN-I3
XVR5216AN-I3
New product
4 Items
Shipping 2025-11-20 days
749,00 € tax incl.
| Hard drive | |
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
| Number of HDDs supported | 1 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Optical drive | |
| Optical drive included | No |
| Packaging data | |
| Package depth | 433 mm |
| Package height | 366 mm |
| Package weight | 2.86 kg |
| Package width | 141 mm |
| Performance | |
| Analog signal format system | NTSC |
| Analog signal format system | PAL |
| Audio formats supported | G.711 μ-law |
| Audio formats supported | G.711 A-law |
| Audio formats supported | PCM |
| Backup function | Yes |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Channels quantity | 16 channels |
| Internal | No |
| Maximum video resolution | 1920 x 1080 pixels |
| Operating system installed | Embedded LINUX |
| Playback resolutions supported | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video compression formats | H.264+ |
| Video compression formats | H.264 |
| Video compression formats | H.265 |
| Video compression formats | H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Ports & interfaces | |
| Audio input | 1 |
| Audio output | 1 |
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Power | |
| DC voltage | 12 V |
| Power consumption (typical) | 12 W |
| Power supply type | DC |
| Weight & dimensions | |
| Depth | 289 mm |
| Height | 53 mm |
| Weight | 1.56 kg |
| Width | 375 mm |
