Home / ///XPG COREREACTOR II 1000W Power Supply
New XPG COREREACTOR II 1000W Power Supply

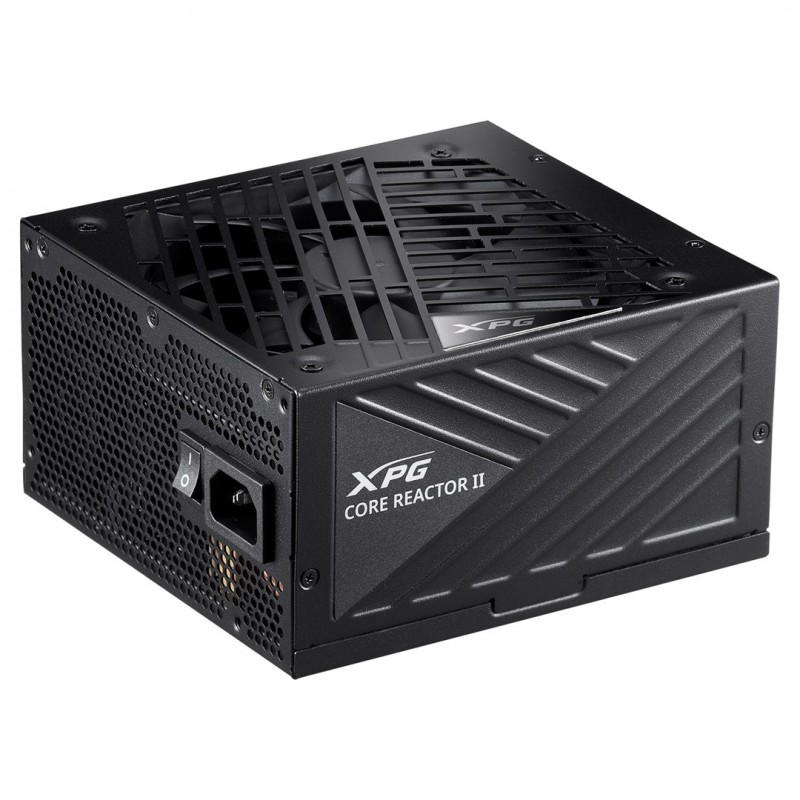

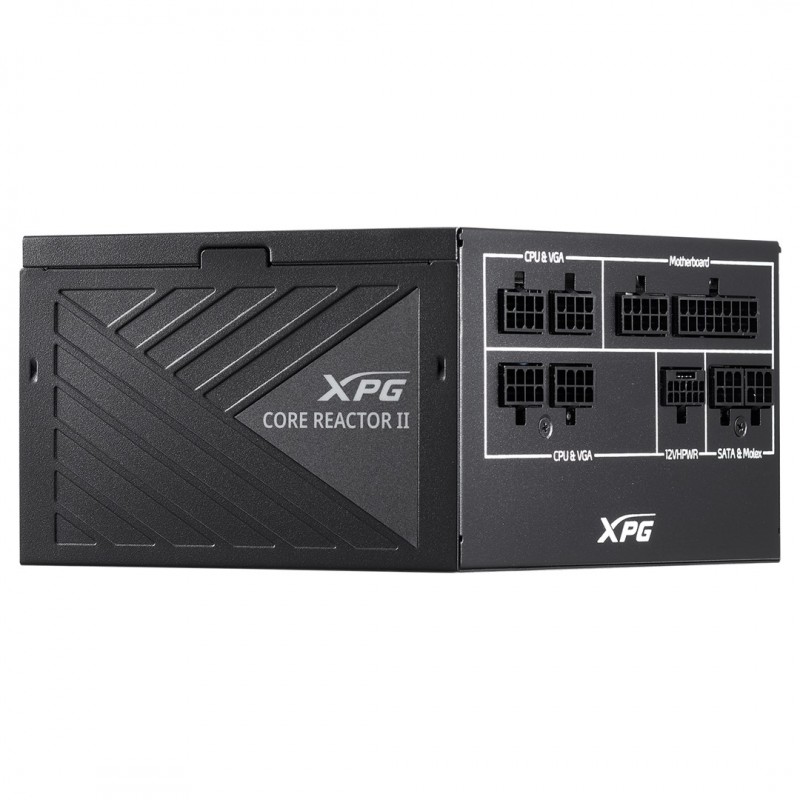

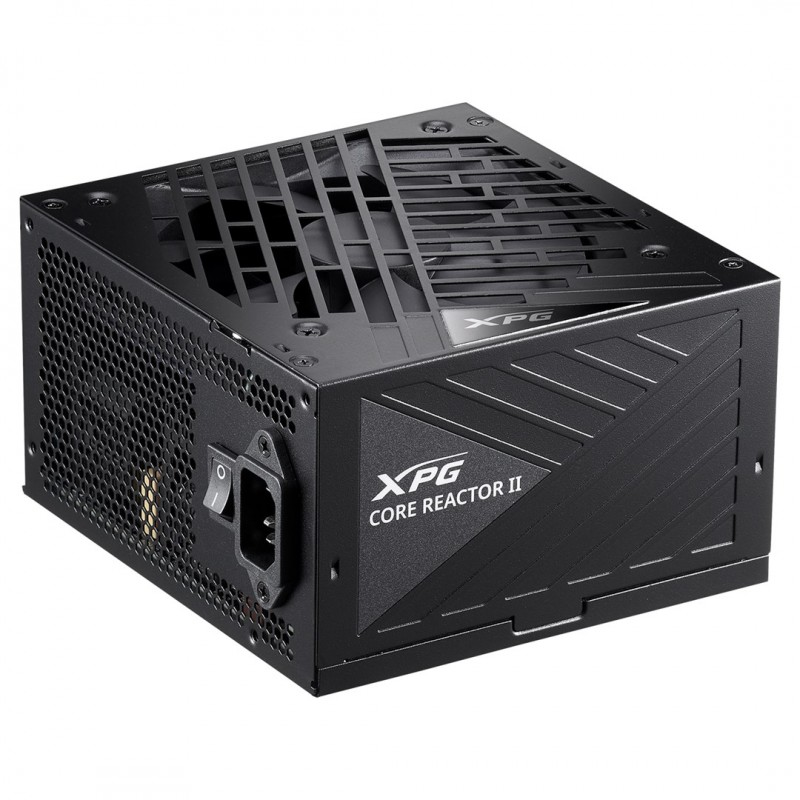

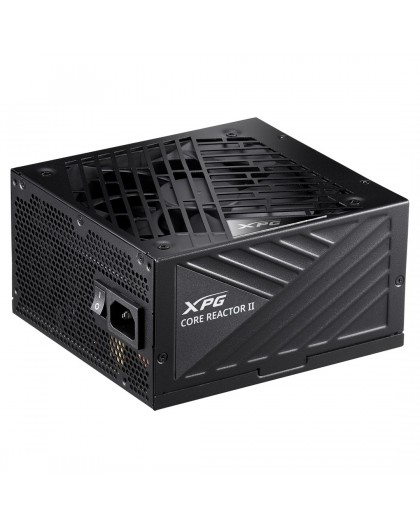

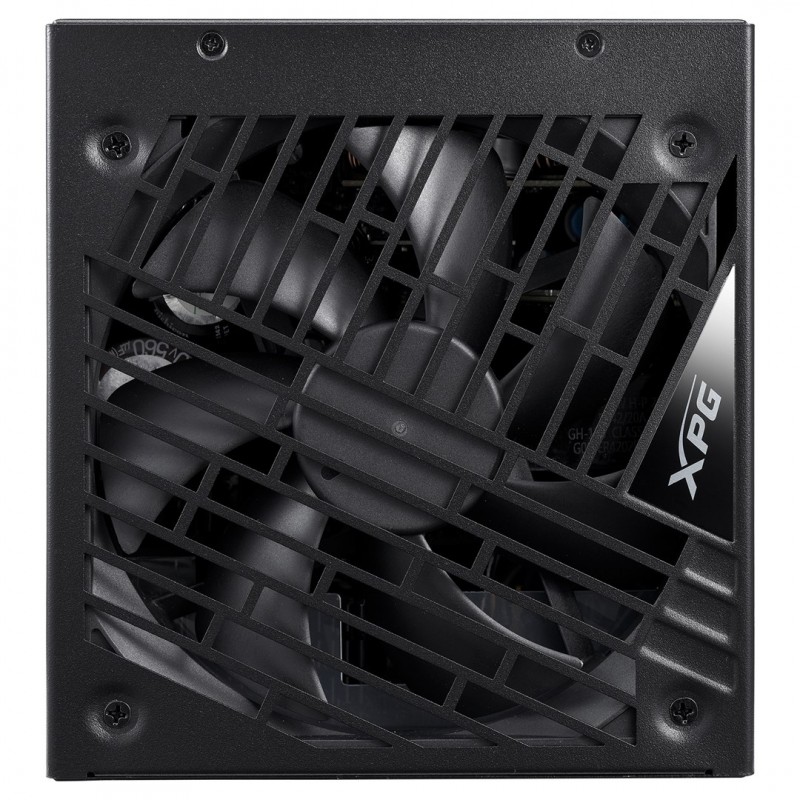

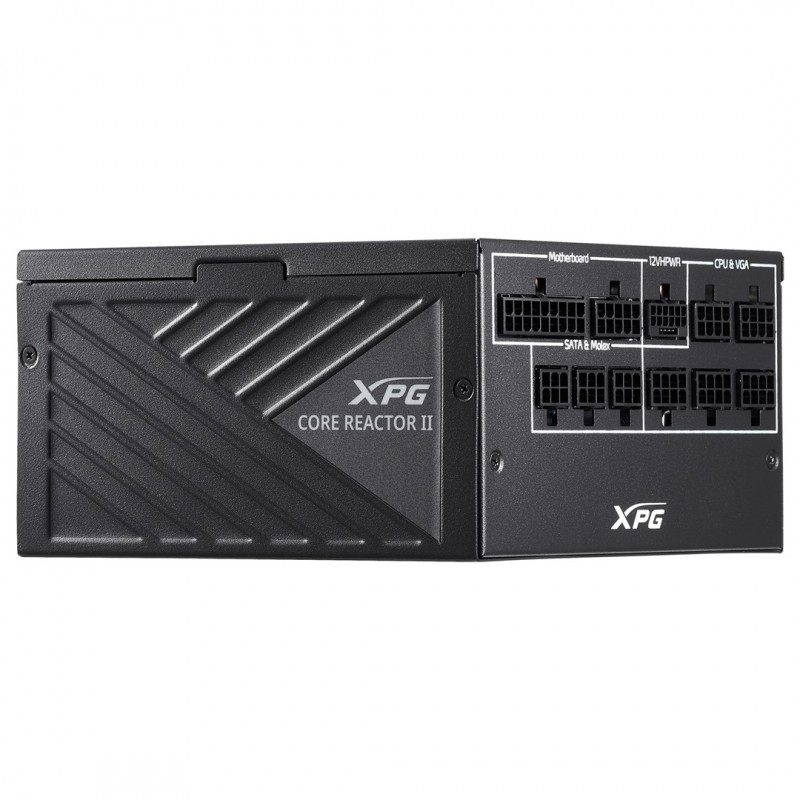

XPG COREREACTOR II 1000W Power Supply

XPG

75261209

New product

26 Items

Shipping 2025-11-14 days

149,00 € tax incl.

Certificates
Compliance certificatescTUVus
Compliance certificatesNorma Oficial Mexicana (NOM)
Compliance certificatesCB
Compliance certificatesEAC
Compliance certificatesCE
Compliance certificatesChina Compulsory Certification (CCC)
Compliance certificatesUKCA
Compliance certificatesBSMI
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesRCM
Design
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Product colourBlack
Packaging data
Package depth338 mm
Package height157 mm
Package weight3.43 kg
Package width210 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.0
Bearing technologyFDB
EPS version2.92
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (12+4 pin)Yes
ATX Power connector (24-pin)Yes
Cabling typeFully-Modular
EPS power connector (8-pin)Yes
Motherboard power connector24-pin ATX
Number of SATA power connectors9
PCI Express power connectors (6+2 pin)8
Peripheral (Molex) power connectors (4-pin)3
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Input current13 A
Max output current (-12V)0.3 A
Max output current (+12V)83.5 A
Max output current (+3.3V)22 A
Max output current (+5V)22 A
Max output current (+5Vsb)3 A
Power factor0.99
Power protection featuresOver power
Power protection featuresOverheating
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresUnder voltage
Power protection featuresOver current
Total power1000 W
Safety warning
WarningsThe product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
WarningsDo not open the case - risk of electric shock.
WarningsAvoid contact of the product with water or other liquids.
Weight & dimensions
Depth150 mm
Height86 mm
Weight1.77 kg
Width160 mm
