Home / ///ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black
New ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black

ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black

ASUS

90YE00S1-B0NA00

New product

5 Items

Shipping 2025-11-24 days

219,00 € tax incl.

Certificates
Compliance certificatesRoHS
Design
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Packaging content
Cable tie(s) includedYes
Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data
Package depth200 mm
Package height108 mm
Package typeBox
Package weight3.17 kg
Package width310 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Power supply unit (PSU) form factorATX
PurposePC

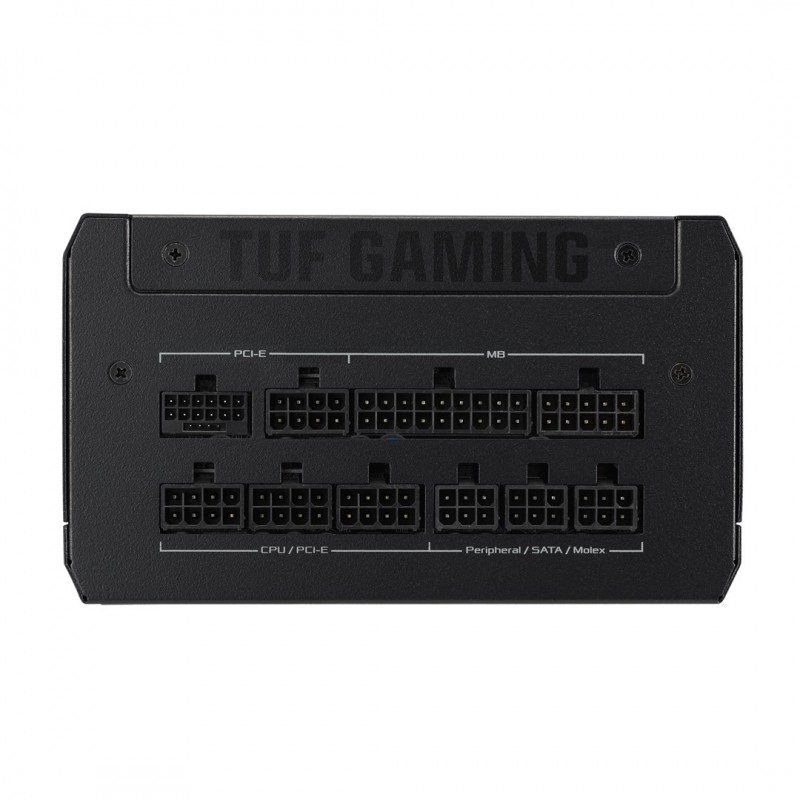

Ports & interfaces
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular
CPU power cable length65 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length61 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors5
PCI Express power cable length67.5 cm
PCI Express power connectors (16-pin)1
PCI Express power connectors (8-pin)4
Peripheral (Molex) power cable length150
Peripheral (Molex) power cable length400 mm
Peripheral (Molex) power connectors (4-pin)4
SATA power cable length120
SATA power cable length400 mm
Power
AC input voltage100 - 240 V
Combined power (-12V)9.6 W
Combined power (+12V)1000 W
Combined power (+3.3V)130 W
Combined power (+5V)130 W
Combined power (+5Vsb)15 W
Efficiency92%
Max output current (-12V)0.8 A
Max output current (+12V)83.3 A
Max output current (+3.3V)25 A
Max output current (+5V)25 A
Max output current (+5Vsb)3 A
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Power protection featuresOvercharge
Power protection featuresUnder voltage
Power protection featuresUnder power
Power protection featuresOver power
Total power1000 W
Technical details
Sustainability complianceYes
Weight & dimensions
Depth150 mm
Height86 mm
Weight2.48 kg
Width150 mm
