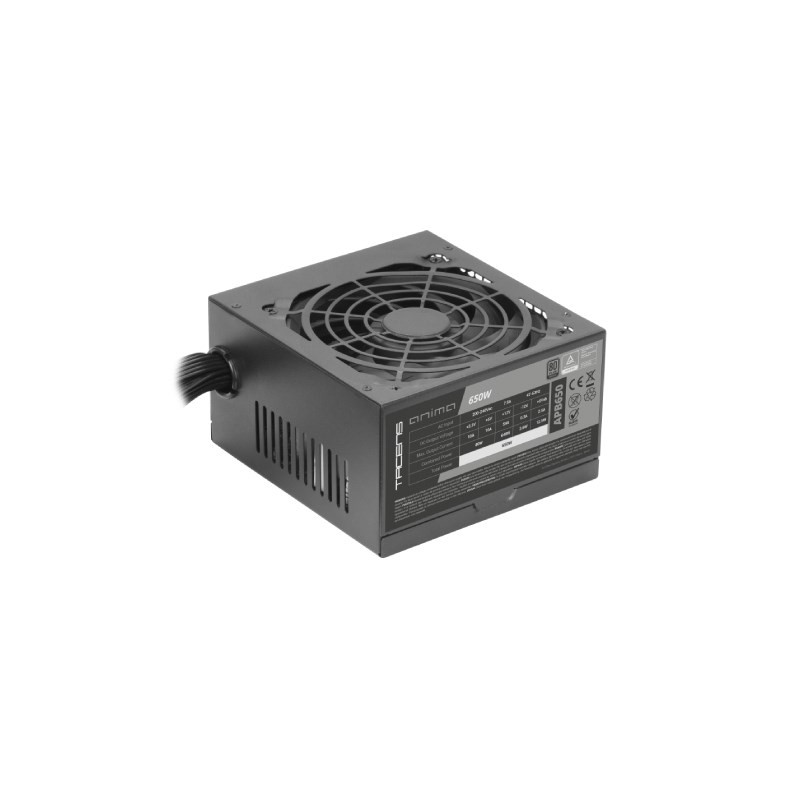

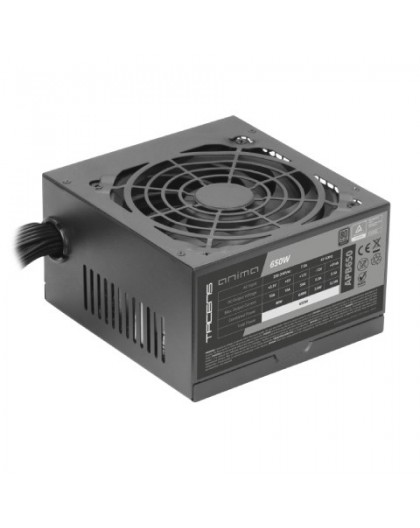

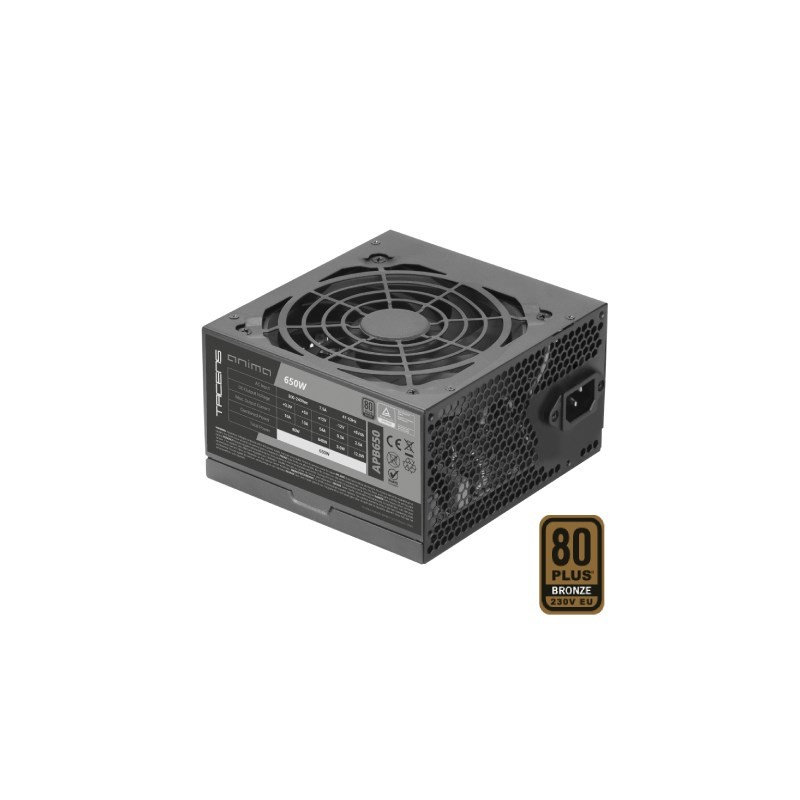

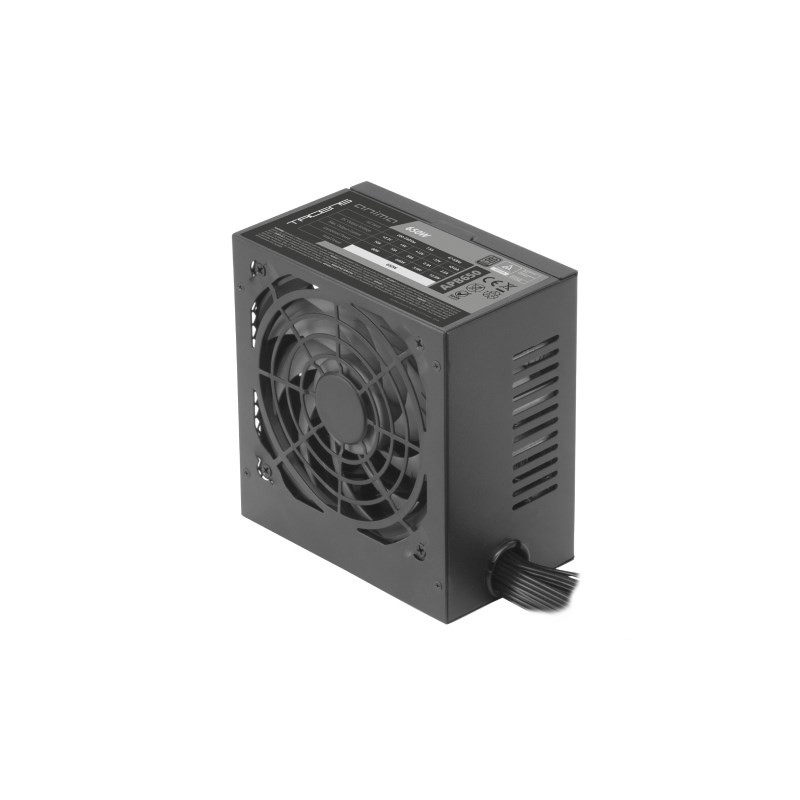

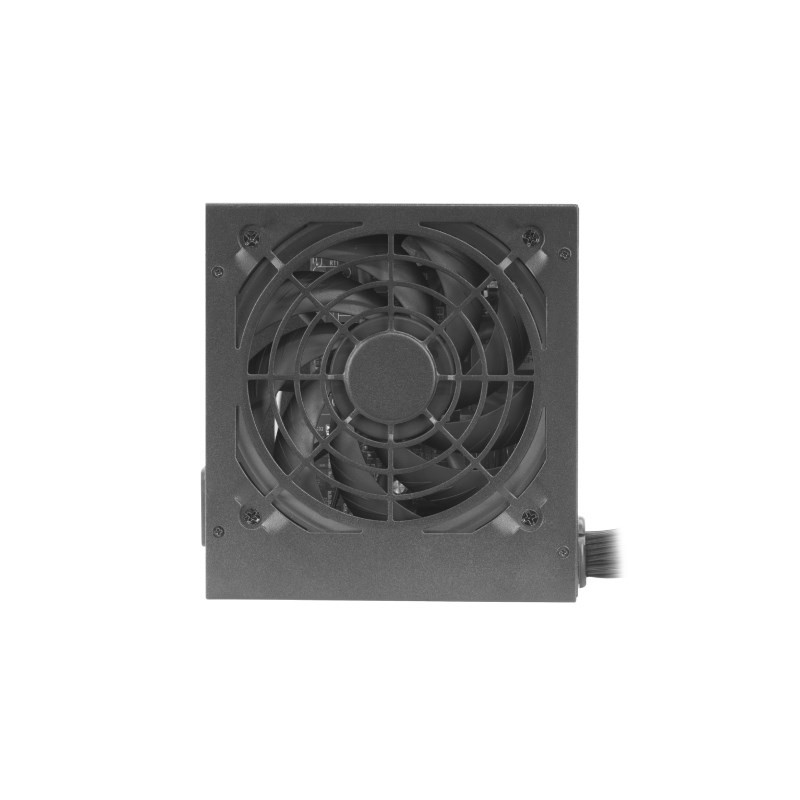

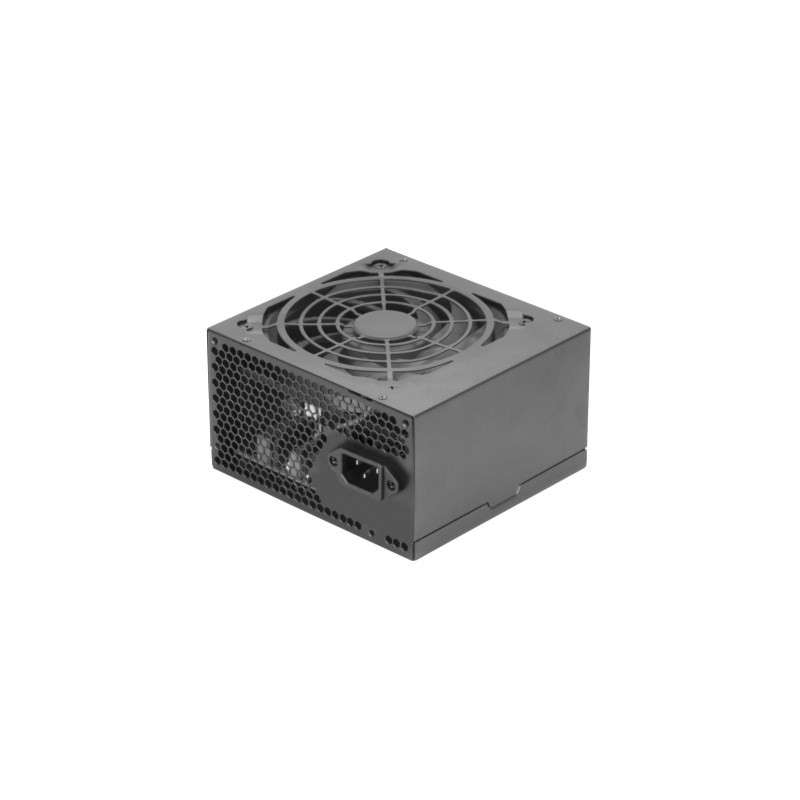

Tacens Anima APB650 power supply unit 650 W 24-pin ATX ATX Black

Reference: TACANIMA-APB650

Condition: New product

55 Item Items

Shipping 2025-11-14 days

59,00 € tax incl.

Design
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
Illumination	No
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Black
Packaging data
Package depth	237 mm
Package height	203 mm
Package type	Box
Package weight	1.51 kg
Package width	126 mm
Performance
80 PLUS certification	80 PLUS Bronze
Noise level	14 dB
Power supply unit (PSU) form factor	ATX
Purpose	PC
Ports & interfaces
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
CPU power connector (4+4 pin)	Yes
Motherboard power connector	24-pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	2
Power
AC input frequency	47 - 63 Hz
AC input voltage	200 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	648 W
Combined power (+3.3V)	80 W
Combined power (+5V)	80 W
Combined power (+5Vsb)	12.5 W
Efficiency	85%
Input current	7.5 A
Max output current (-12V)	0.3 A
Max output current (+12V)	54 A
Max output current (+3.3V)	10 A
Max output current (+5V)	10 A
Max output current (+5Vsb)	2.5 A
Power Factor Correction (PFC) type	Active
Power protection features	Over power
Power protection features	Under voltage
Power protection features	Over current
Power protection features	Short circuit
Power protection features	Over voltage
Total power	650 W
Weight & dimensions
Depth	145 mm
Height	85 mm
Weight	1.36 kg
Width	150 mm
