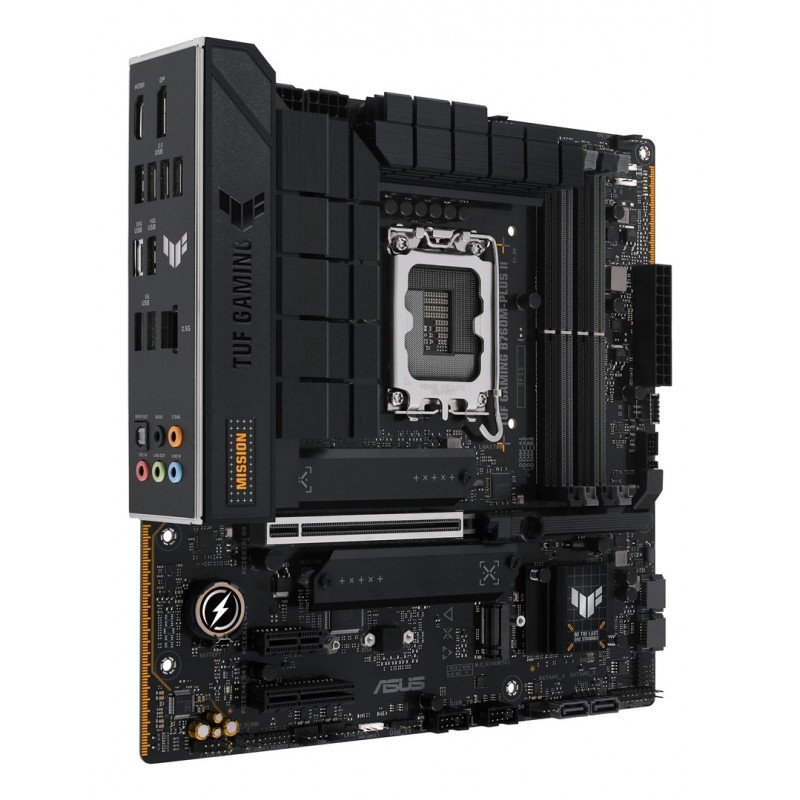

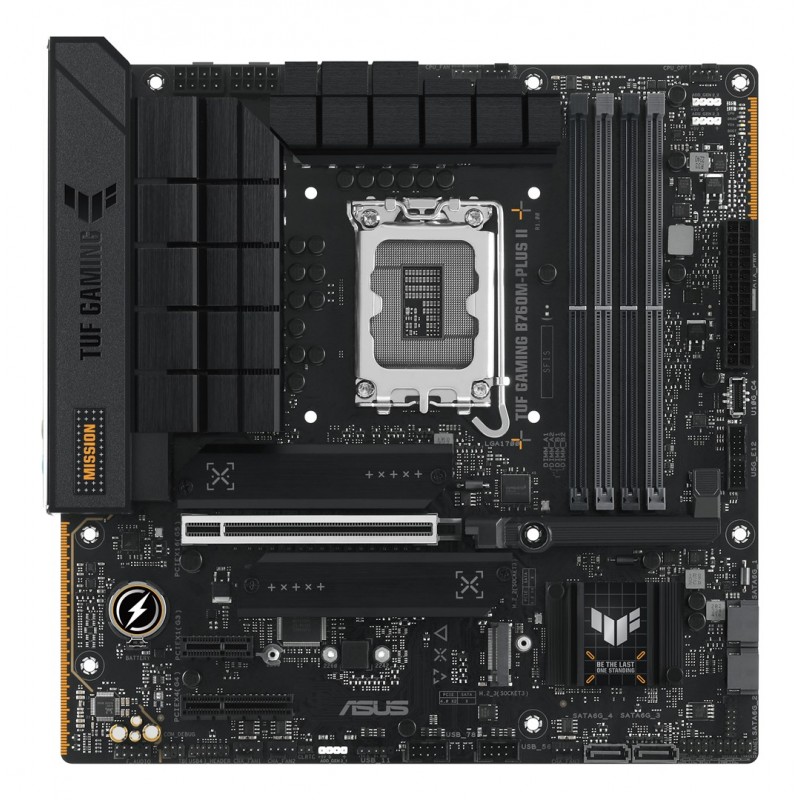

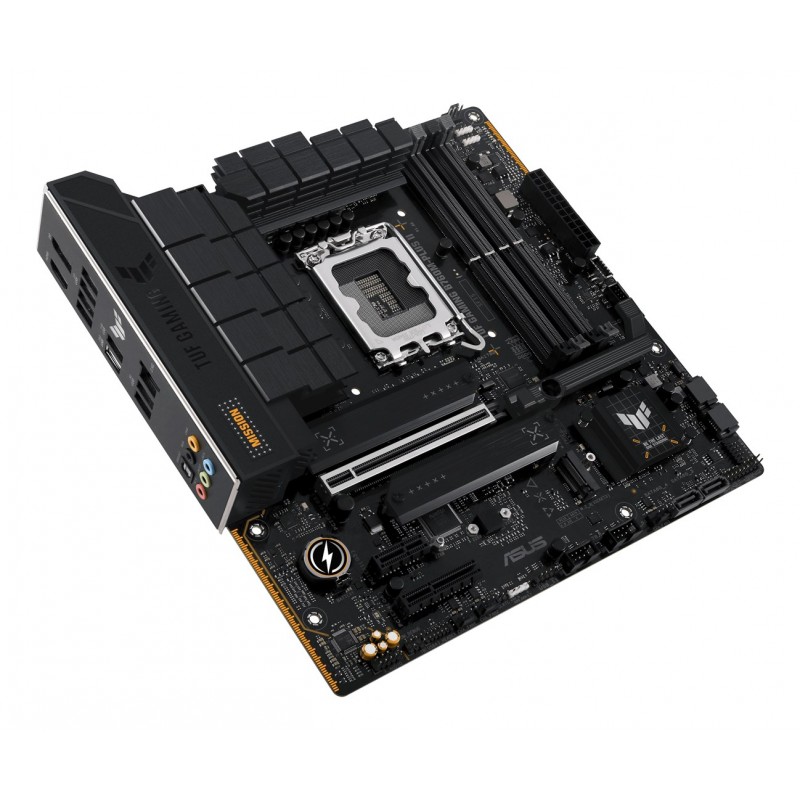

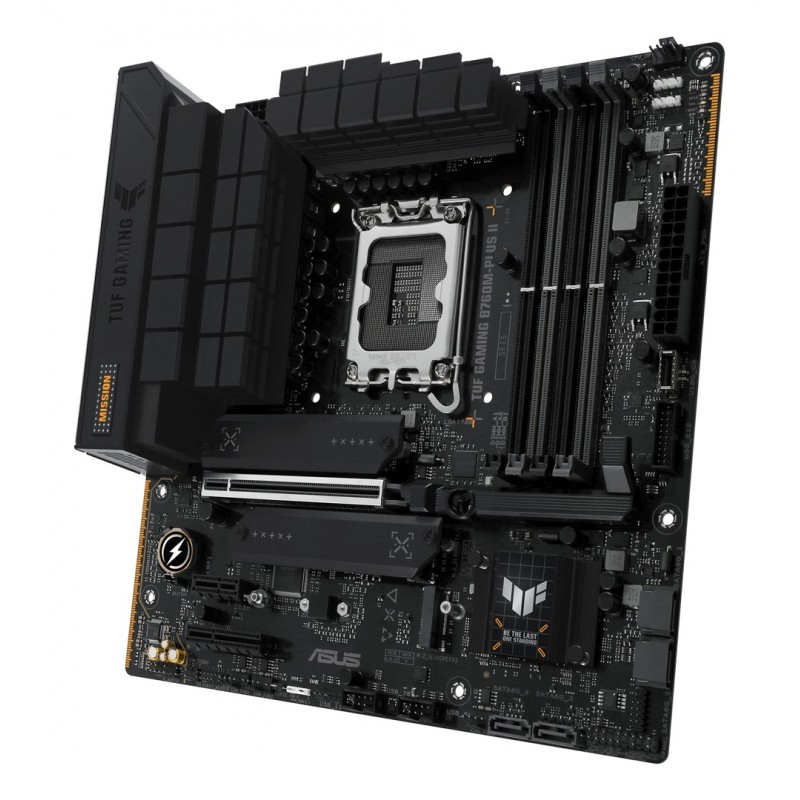

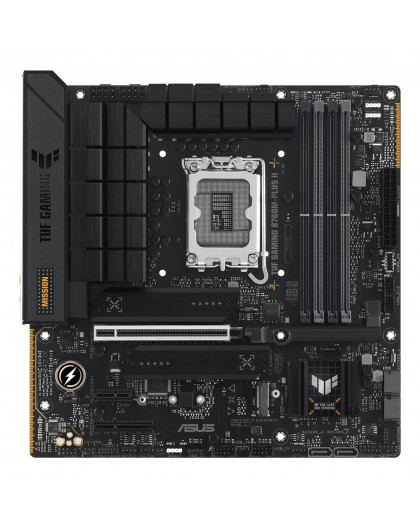

Home / ///ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
New ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

ASUS

90MB1HD0-M0EAY0

New product

3 Items

Shipping 2025-11-14 days

Warning: Last items in stock!

189,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
Features
Audio output channels7.1 channels
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11
Windows operating systems supportedWindows 10 x64
Graphics
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors3
Number of SATA III connectors4
Thunderbolt headers1
USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)7800 MHz
Supported memory clock speeds6000
Supported memory clock speeds5800
Supported memory clock speeds5400
Supported memory clock speeds5000
Supported memory clock speeds7600
Supported memory clock speeds7800 MHz
Supported memory clock speeds5200
Supported memory clock speeds7400
Supported memory clock speeds6400
Supported memory clock speeds6800
Supported memory clock speeds6200
Supported memory clock speeds6600
Supported memory clock speeds4800 MHz
Supported memory clock speeds7000
Supported memory clock speeds5600
Supported memory clock speeds7200
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
Other features
Weight982 g
Packaging content
Cables includedSATA
Screws includedYes
Packaging data
Package depth265 mm
Package height71 mm
Package weight1.65 kg
Package width280 mm
Processor
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Core™ i3
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700

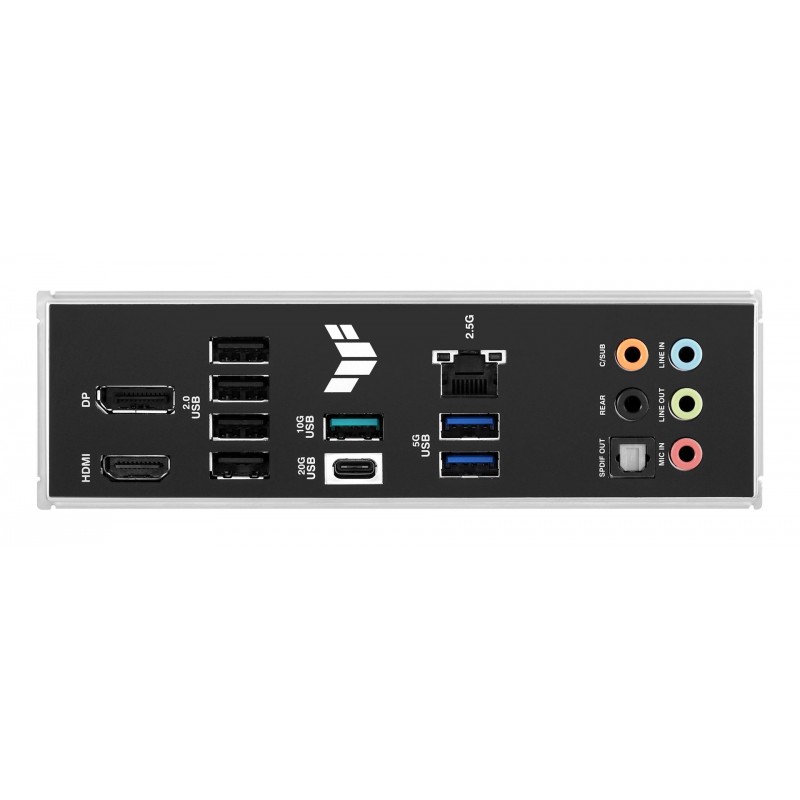

Rear panel I/O ports
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Safety warning
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Storage controllers
Number of HDDs supported4
Number of storage drives supported7
RAID levels1
RAID levels5
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Height50 mm
Width244 mm
