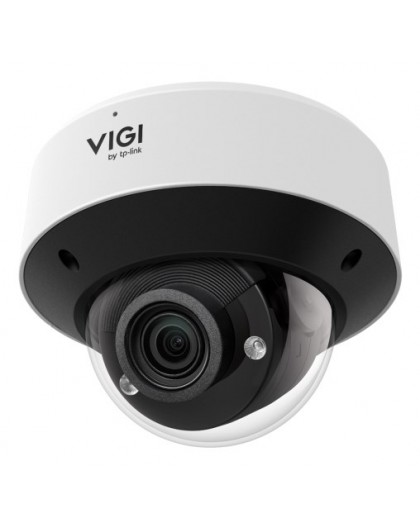

TP-LINK IP Camera InSight S245ZI

TP-LINK

INSIGHTS245ZI(UN)

New product

5 Items

Shipping 2025-11-25 days

259,00 € tax incl.

Audio
Audio formats supportedG.711 A-law
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio system2-way
Bit rate range0 - 64 Kbit/s
Built-in microphoneYes
Built-in speaker(s)Yes
Number of microphones1
Sample rate8 kHz
Camera
Camera pan controlYes
Camera shutter speed1/3 to 1/10000
Camera tilt controlYes
Lens viewing angle, diagonal34.1 - 122.8°
Lens viewing angle, horizontal29.6 - 102°
Lens viewing angle, vertical16.8 - 53.8°
Minimum illumination0 lx
Tilt angle range0 - 75°
Design
Form factorDome
Housing materialMetal
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Protection featuresWaterproof
WeatherproofYes
Image sensor
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes
Sensor typeCMOS
Lens system
Auto focusYes
Detect distance200 m
FocusMotorized
Identify distance21 m
Maximum aperture number1.6
Observe distance84 m
Optical zoom5x
Recognize distance40 m
Management features
Cloud-managedYes
Reset buttonYes
Web browserYes
Web-based managementYes
Network
BluetoothNo
Ethernet LANYes
Live viewYes
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-FiNo
Night vision
LED typeIR/White
Night visionYes
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-30 - 60 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 60 °C
Packaging content
ManualYes
Number of cameras1
Packaging data
Package typeBox
Performance
Connectivity technologyWired
Day/night modeYes
Dynamic range120 dB
Infrared (IR) cut-off filterYes
Maximum operating distance200 m
Placement supportedOutdoor
Remote viewingYes
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Power
DC output voltage12
Power consumption (max)10.8 W
Power consumption (Power over Ethernet (PoE))12 W
Power source typeDC, PoE
Security
Alert notification typePush notification
Built-in sirenYes
Detection distance200 m
Digest authenticationYes
HTTPS encryptionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbnormal sound detection
Intelligent Video Surveillance (IVS) system featuresHuman detection
Intelligent Video Surveillance (IVS) system featuresMoving object
Intelligent Video Surveillance (IVS) system featuresCrossing line
Intelligent Video Surveillance (IVS) system featuresVehicle detection
Intelligent Video Surveillance (IVS) system featuresRegion entrance detection
Intelligent Video Surveillance (IVS) system featuresRegion exiting detection
Intelligent Video Surveillance (IVS) system featuresIntrusion
Intelligent Video Surveillance (IVS) system featuresScene change
Intelligent Video Surveillance (IVS) system featuresLine crossing detection
IP address filteringYes
MirrorYes
Motion sensorYes
Password protectionYes
Video motion detectionYes
Storage
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Video
Back Light Compensation (BLC)Yes
Bit rateMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentSaturation
Image quality adjustmentSharpness
Image quality adjustmentContrast
Image quality adjustmentMirror
Image quality adjustmentBrightness
Maximum resolution2688 x 1520 pixels
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions2048 x 1280
Supported graphics resolutions2304 x 1296
Supported graphics resolutions2688 x 1520
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions2560 x 1440
Total megapixels4 MP
Video compression formatsH.265
Video compression formatsH.264+
Video compression formatsH.264
Video compression formatsH.265+
Video recordingYes
Weight & dimensions
Depth129.9 mm
Height102.5 mm
Weight775 g
Width129.9 mm
