New ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX motherboard

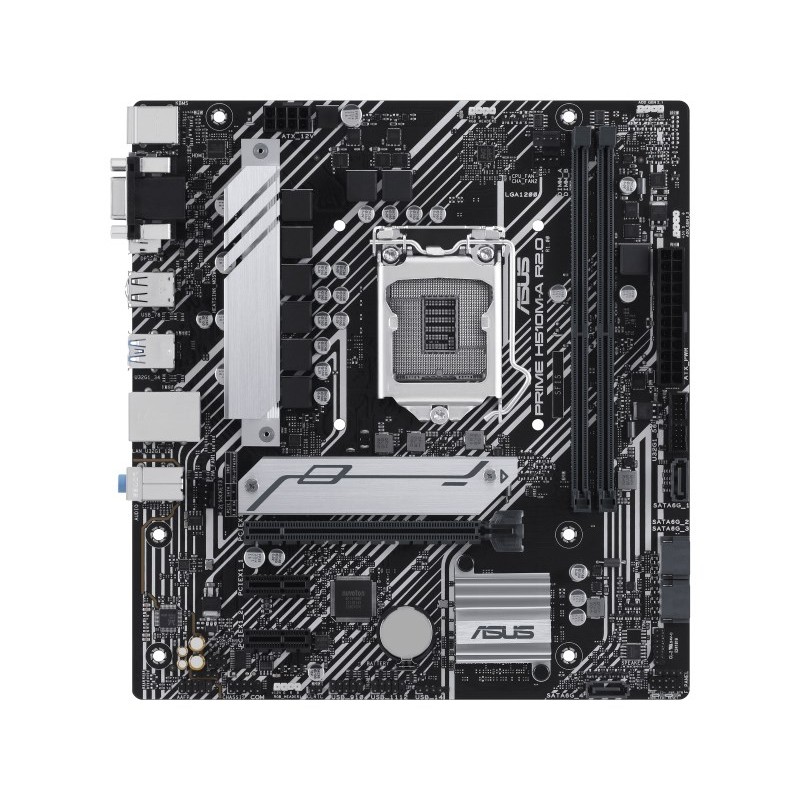

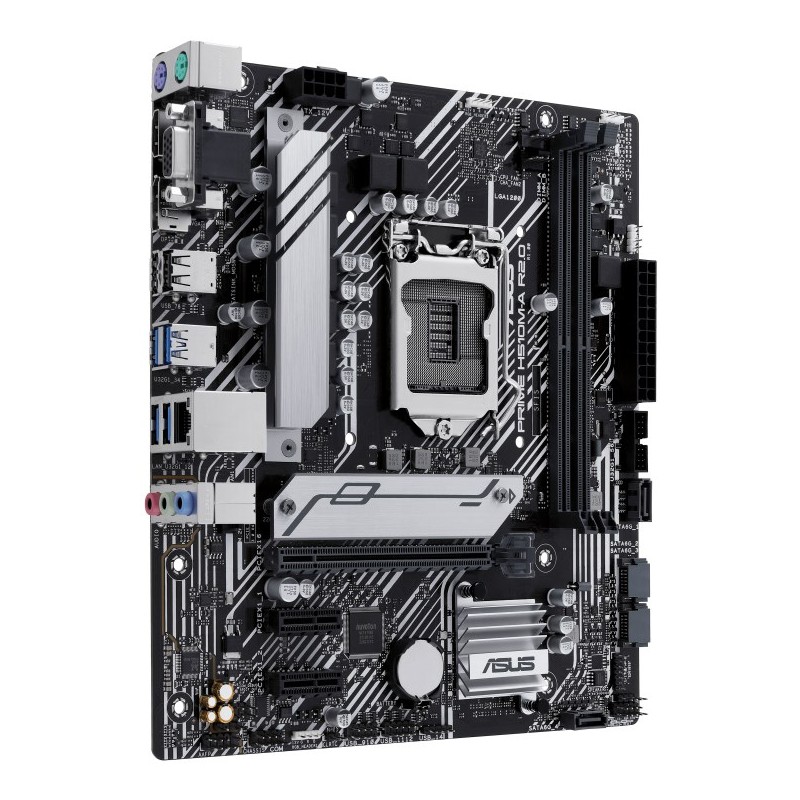

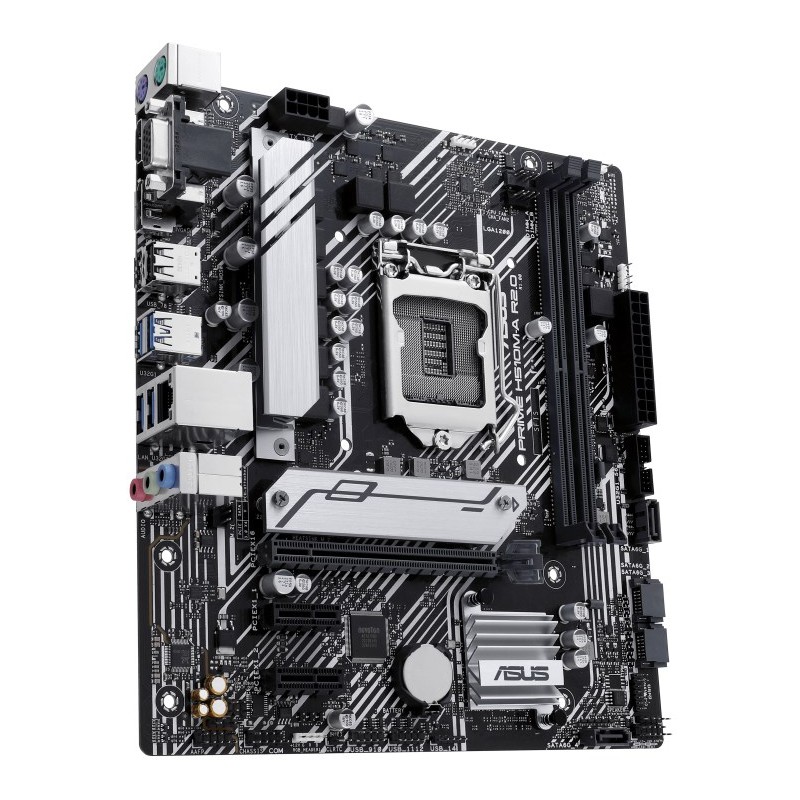

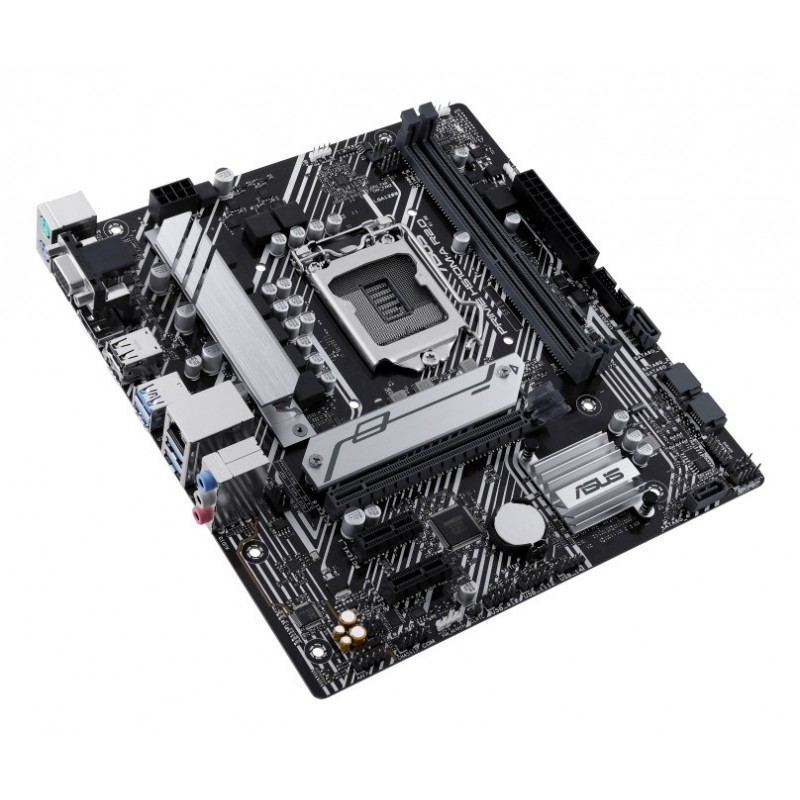

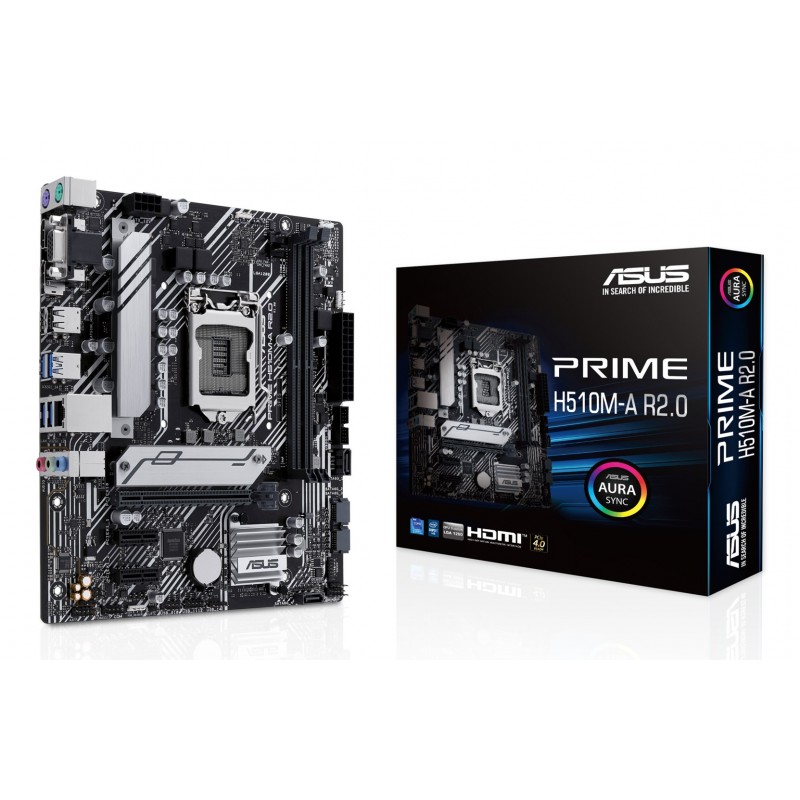

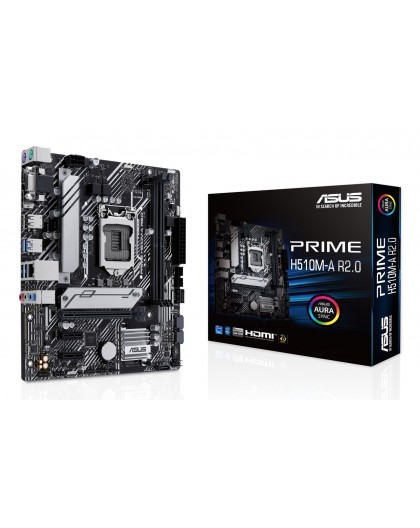

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX motherboard

ASUS

90MB1FP0-M0EAY0

New product

2 Items

Shipping 2025-11-17 days

Warning: Last items in stock!

79,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots2
Features
Audio output channels7.1 channels
Motherboard chipsetIntel H510
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Graphics
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
Audio connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors2
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
S/PDIF out connectorYes
TPM connectorYes
USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speed (max)3200 MHz
Supported memory clock speeds2666 MHz
Supported memory clock speeds3000
Supported memory clock speeds2400 MHz
Supported memory clock speeds2800
Supported memory clock speeds3200
Supported memory clock speeds2933
Supported memory clock speeds2133 MHz
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Wi-FiNo
Packaging content
Cables includedSATA
Packaging data
Package depth270 mm
Package height51.5 mm
Package weight1.03 kg
Package width260 mm
Processor
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Core™ i3
Processor manufacturerIntel
Processor socketLGA 1200 (Socket H5)
Supported processor socketsLGA 1200 (Socket H5)
Rear panel I/O ports
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Headphone outputs1
Line-inYes
Microphone inYes
PS/2 ports quantity2
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
VGA (D-Sub) ports quantity1
Safety warning
WarningsAvoid contact with liquids to prevent damage to electronic components.
WarningsDo not make changes or modifications to the appliance, which may void the warranty or cause damage.
WarningsBe careful when assembling to avoid damage to electronic components caused by electrostatic discharge.
Storage controllers
Number of HDDs supported4
Number of storage drives supported5
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth211 mm
Width226 mm
