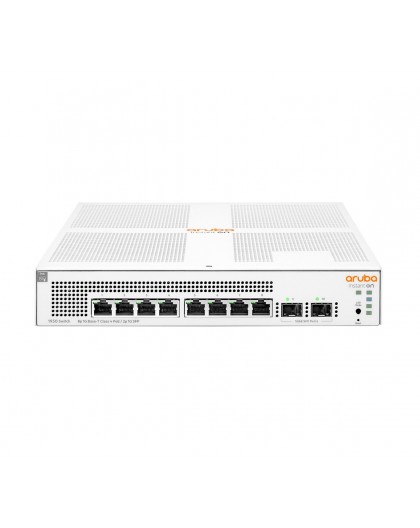

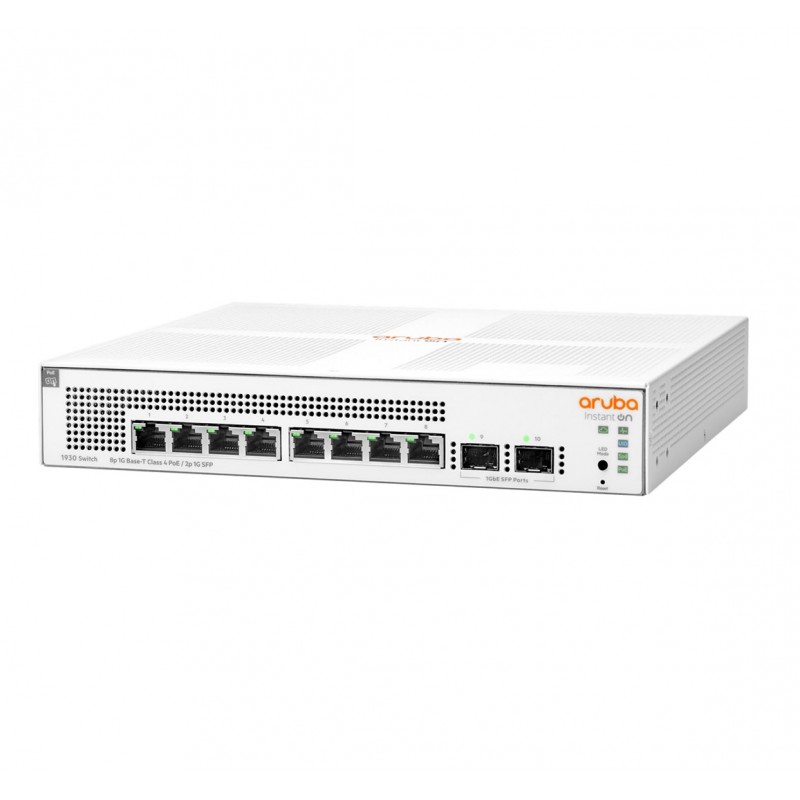

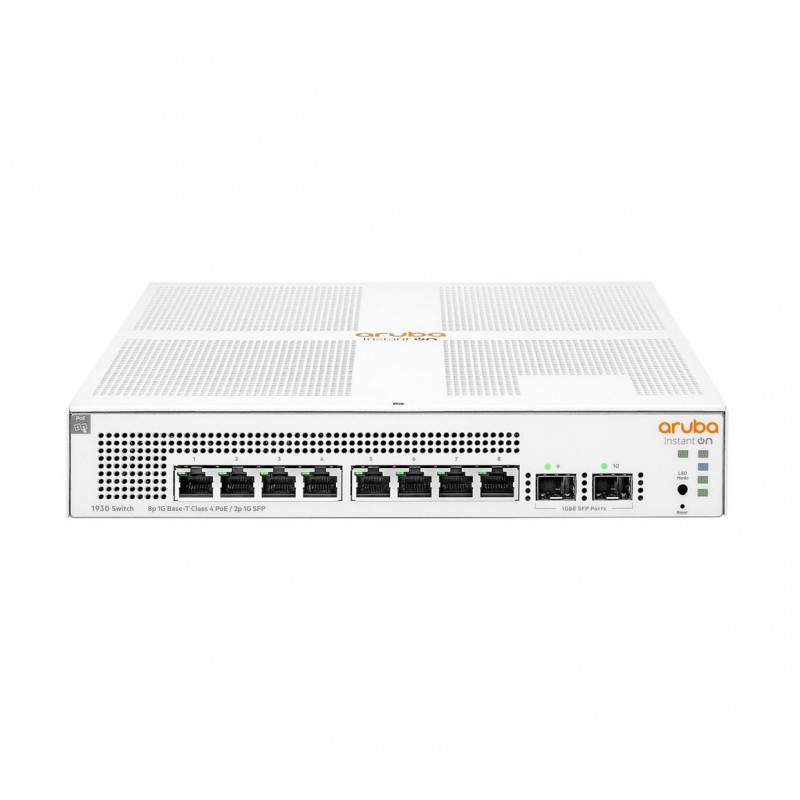

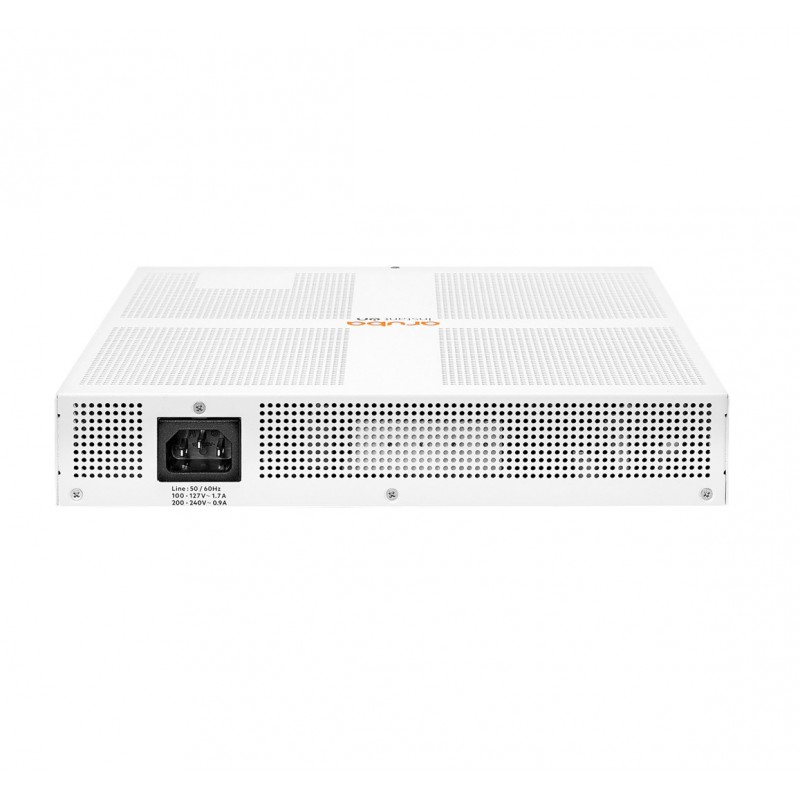

Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
JL681A
Новый продукт
21 Элементы
Shipping 2025-11-20 days
299,00 € включая налог.
| Data transmission | |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 3 µs |
| Latency (10-100 Mbps) | 5.2 µs |
| MAC address table | 8000 entries |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Stackable | No |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 1000BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Performance | |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM Cortex-A9 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 150.2 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 124 W |
| Safety warning | |
| Warnings | Follow the safety guidelines for electrical current. |
| Warnings | Do not open the case or try to repair it yourself. |
| Warnings | Avoid contact of the device with liquid. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| Security | |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 254 mm |
| Height | 43.9 mm |
| Weight | 1.16 kg |
| Width | 254 mm |
