Дома / ///HUAWEI eKit S110 Series S110-16LP2SR Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Новый HUAWEI eKit S110 Series S110-16LP2SR Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

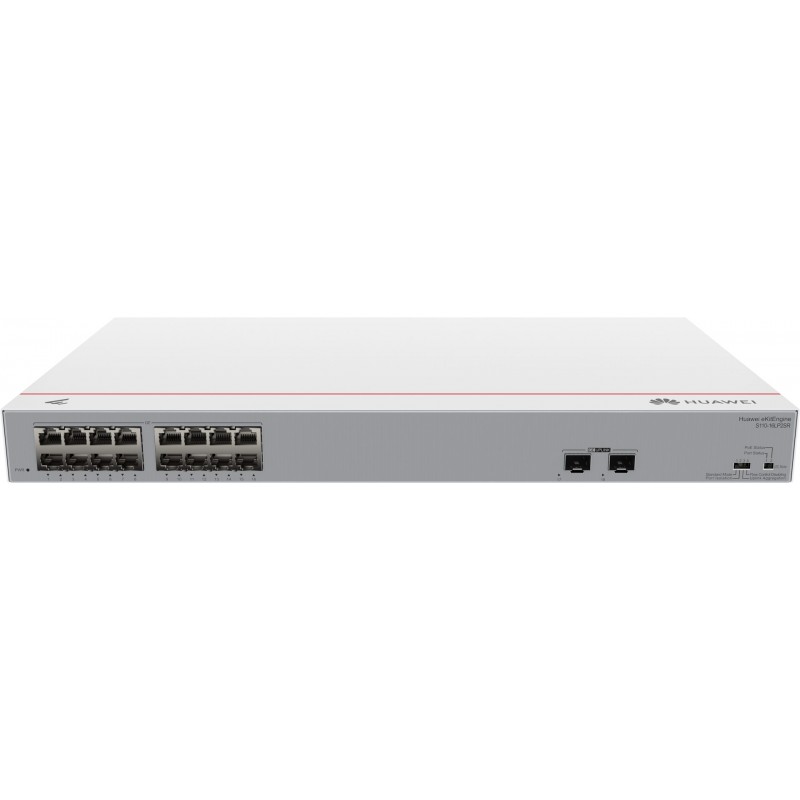

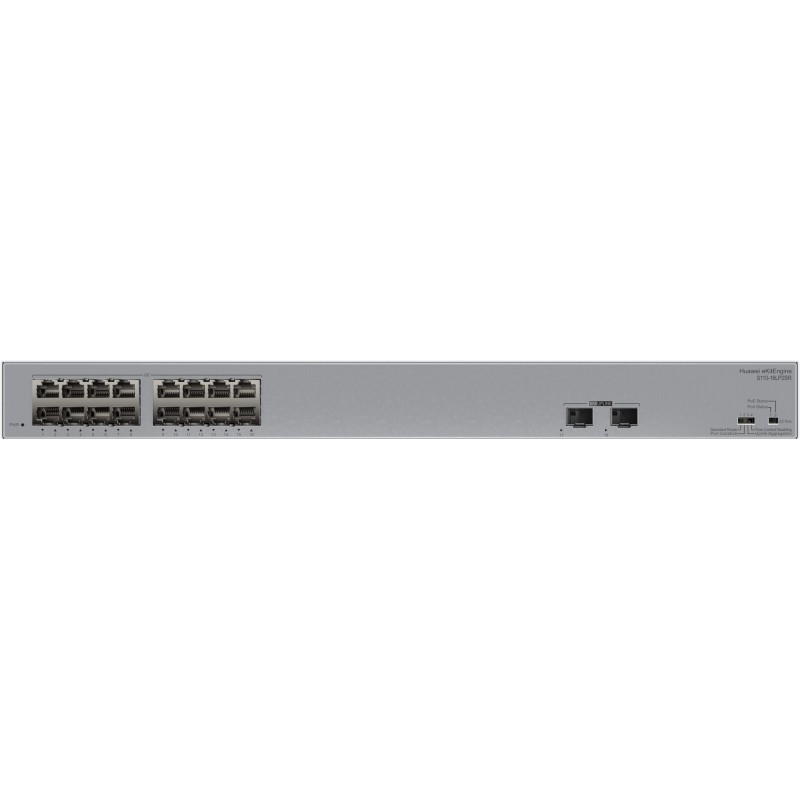

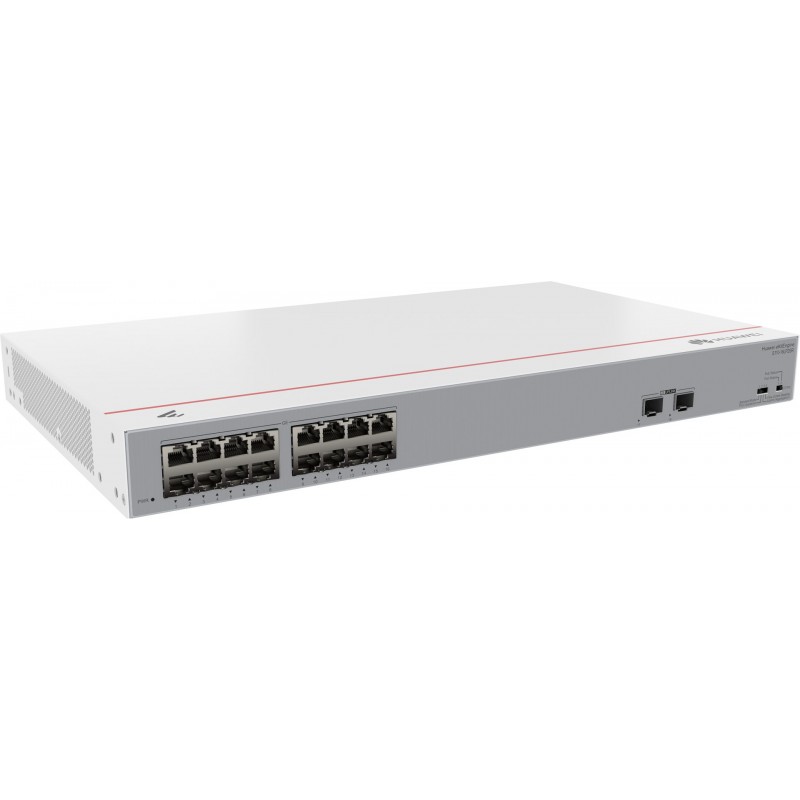

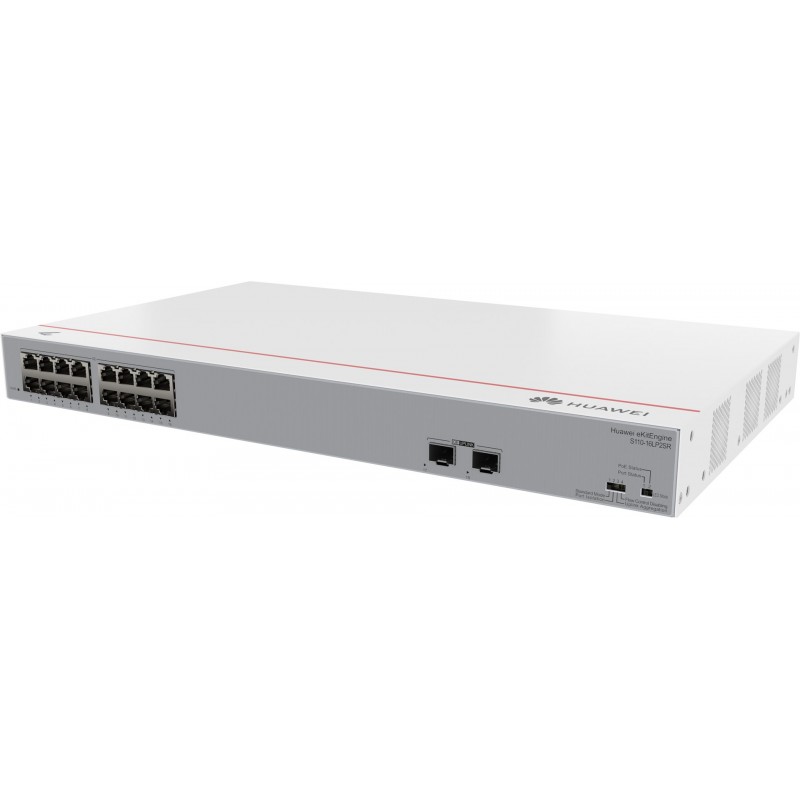

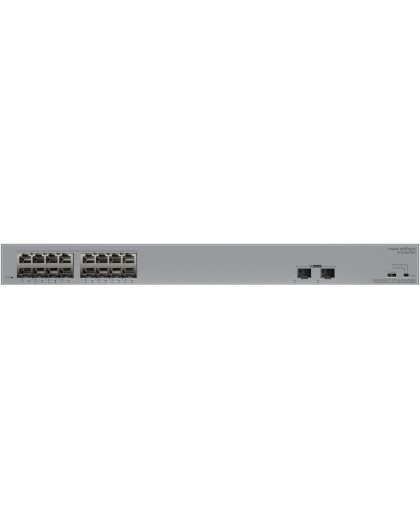

HUAWEI eKit S110 Series S110-16LP2SR Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Huawei

S110-16LP2SR

Новый продукт

26 Элементы

Shipping 2025-11-18 days

219,00 € включая налог.

Data transmission
Forwarding rate26.78 Mpps
MAC address table8000 entries
Switching capacity36 Gbit/s
Design
Form factor1U
LED indicatorsYes
Product colourGrey
Rack mountingYes
Management features
Switch layerL2
Switch typeUnmanaged
Network
10G supportNo
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating altitude0 - 5000 m
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 5000%
Storage temperature (T-T)5 - 95 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Power
AC input frequency50/60 Hz
AC input voltage110 - 240 V
Power consumption (max)146 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget124 W
Safety warning
WarningsDo not open the case or try to repair it yourself.
WarningsDo not use the device in damp conditions to avoid a short circuit.
WarningsEnsure the unit is adequately ventilated during operation.
WarningsElectronic devices should be recycled in accordance with local regulations.
WarningsDo not open the housing of the unit due to the risk of electric shock.
WarningsThe product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Weight & dimensions
Depth260 mm
Height43.6 mm
Weight3.2 kg
Width442 mm
