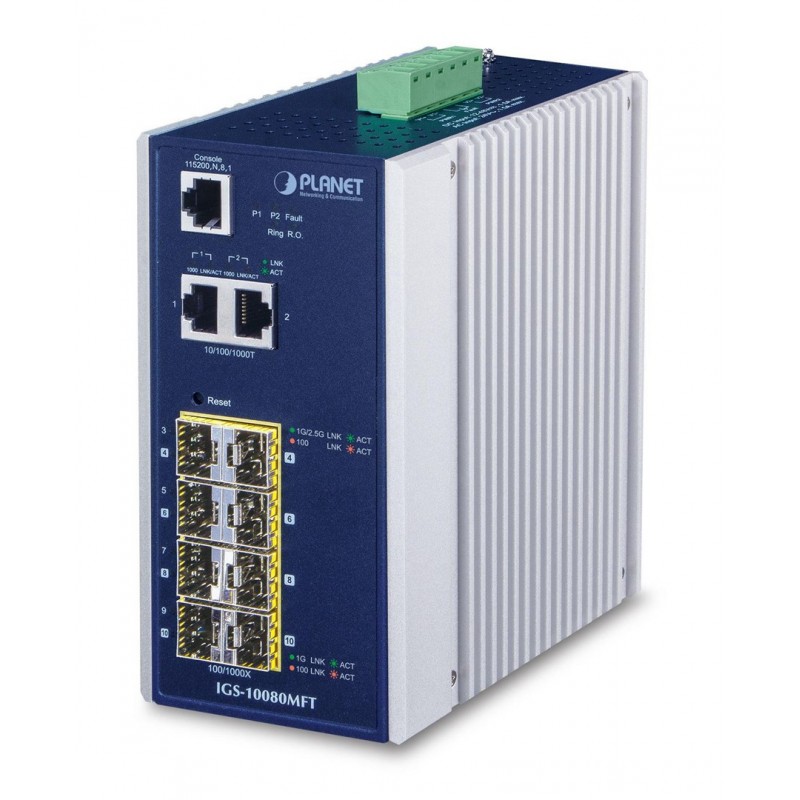

PLANET IGS-10080MFT network switch Managed Gigabit Ethernet (10/100/1000) Blue, White
IGS-10080MFT
Новый продукт
Этого товара нет в наличии
379,00 € включая налог.
| Certificates | |
| Certification | FCC, CE |
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Store-and-forward | Yes |
| Switching capacity | 26 Gbit/s |
| Throughput | 19.3 Mpps |
| Design | |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | White |
| Product colour | Blue |
| Rack mounting | No |
| Reset button | Yes |
| Wall mountable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 1000BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 1588v2 |
| Number of VLANs | 4095 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Protocol-based VLAN |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 47.76 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 °C |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | MiniGBIC |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 8 |
| Power | |
| DC input voltage | 12 - 48 V |
| Power consumption (max) | 13.92 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Protocols | |
| Management protocols | web, telnet, SNMP |
| Supported network protocols | IPv4 / IPv6 |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Port-based authentication |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SSH |
| Security algorithms | SSL/TLS |
| Security algorithms | 802.1x RADIUS |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 107.3 mm |
| Height | 152 mm |
| Weight | 1.04 kg |
| Width | 76.8 mm |
