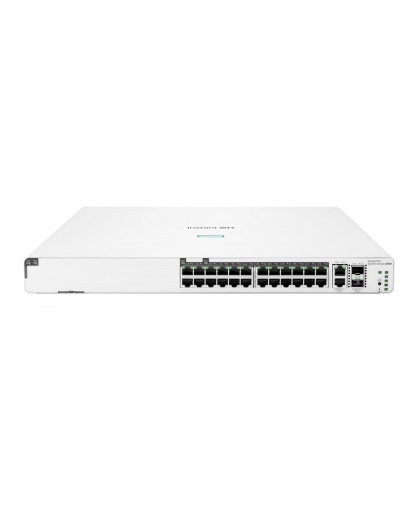

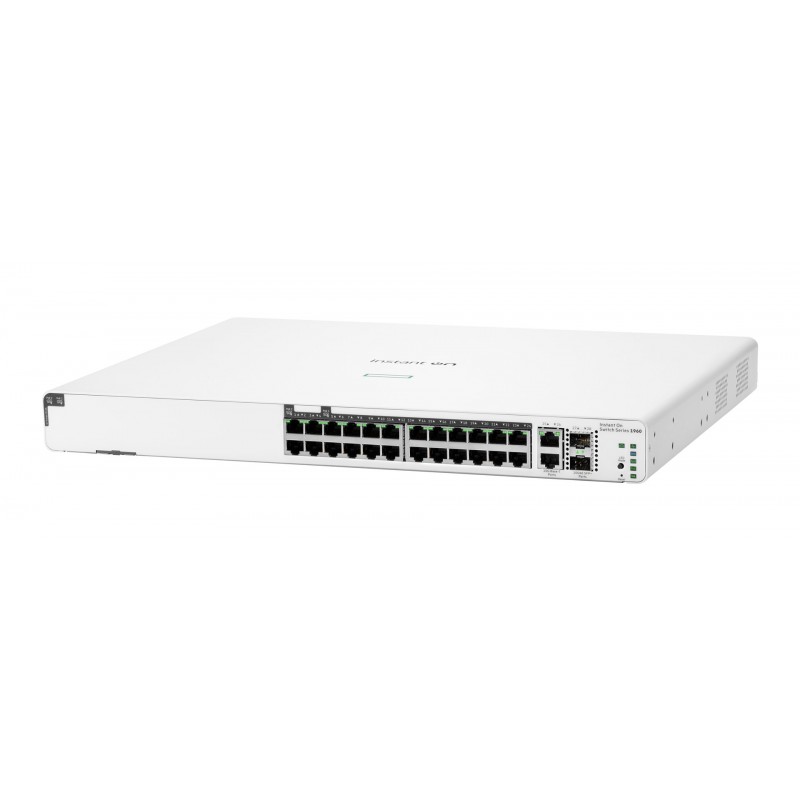

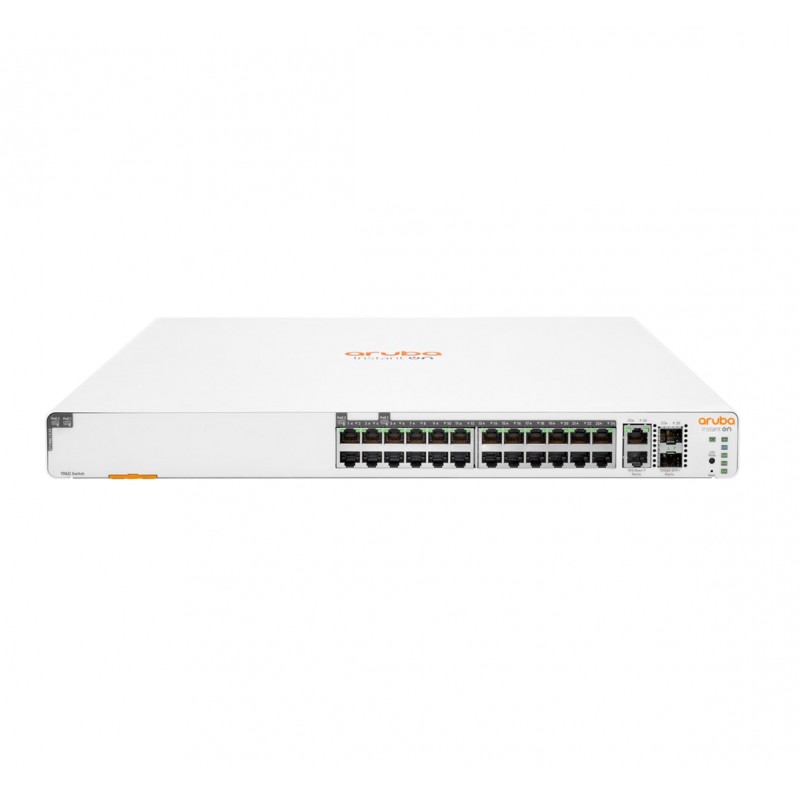

Дома / ///HPE Aruba Networking Инстант Он Коммутатор 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
Новый HPE Aruba Networking Инстант Он Коммутатор 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960

HPE Aruba Networking Инстант Он Коммутатор 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960

Hewlett-Packard

JL807A

Новый продукт

6 Элементы

Shipping 2025-11-24 days

769,00 € включая налог.

Data transmission
Jumbo frames9216
Jumbo frames supportYes
Latency (1 Gbps)2.2 µs
Latency (10 Gbps)1.1 µs
Latency (10-100 Mbps)4.4 µs
MAC address table16000 entries
Packet buffer memory1.5 MB
Switching capacity128 Gbit/s
Throughput95 Mpps
Design
Form factor1U
Product colourWhite
Rack mountingYes
StackableYes
Logistics data
Harmonized System (HS) code85176990
Management features
ARP inspectionYes
Cloud-managedYes
Quality of Service (QoS) supportYes
Switch layerL2+
Switch typeManaged
System event logYes
Web-based managementYes
Multicast features
Multicast supportYes
Network
10G supportYes
Auto MDI/MDI-XYes
Auto-sensingYes
Flow control supportYes
Full duplexYes
Link aggregationYes
Networking standardsIEEE 802.3ad
Networking standardsIEEE 802.1s
Networking standardsIEEE 802.1x
Networking standardsIEEE 802.3bt
Networking standardsIEEE 802.1AX
Networking standardsIEEE 802.1ab
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.1p
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.1Q
Networking standardsIEEE 802.3az
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.1D
Networking standardsIEEE 802.3z
Networking standardsIEEE 802.3at
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Operational conditions
Operating altitude0 - 3000 m
Operating relative humidity (H-H)15 - 95%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)15 - 90%
Storage temperature (T-T)-40 - 70 °C
Performance
Built-in processorYes
Flash memory512 MB
Internal memory1024 MB
Memory typeDDR3-SDRAM
Physical stacking (units)4
Processor frequency800 MHz
Processor modelARM Cortex-A9
Ports & interfaces
10G Ethernet (copper) ports quantity2
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity2
Power
AC input frequency50 - 60 Hz
AC input voltage200 - 240 V
Power consumption (max)480 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget370 W
Protocols
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)
IPv4 FIB entries32
IPv6 FIB entries32
Safety warning
WarningsDo not open the case or try to repair it yourself.
WarningsThe product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
WarningsEnsure the unit is adequately ventilated during operation.
Security
Access Control List (ACL)Yes
AuthenticationPort-based authentication
Authentication typeRADIUS
DHCP featuresDHCP snooping
IGMP snoopingYes
SSH/SSL supportYes
Weight & dimensions
Depth442.5 mm
Height44 mm
Weight4.7 kg
Width350.5 mm
