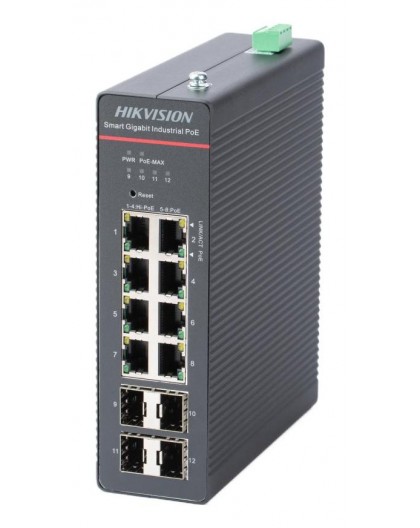

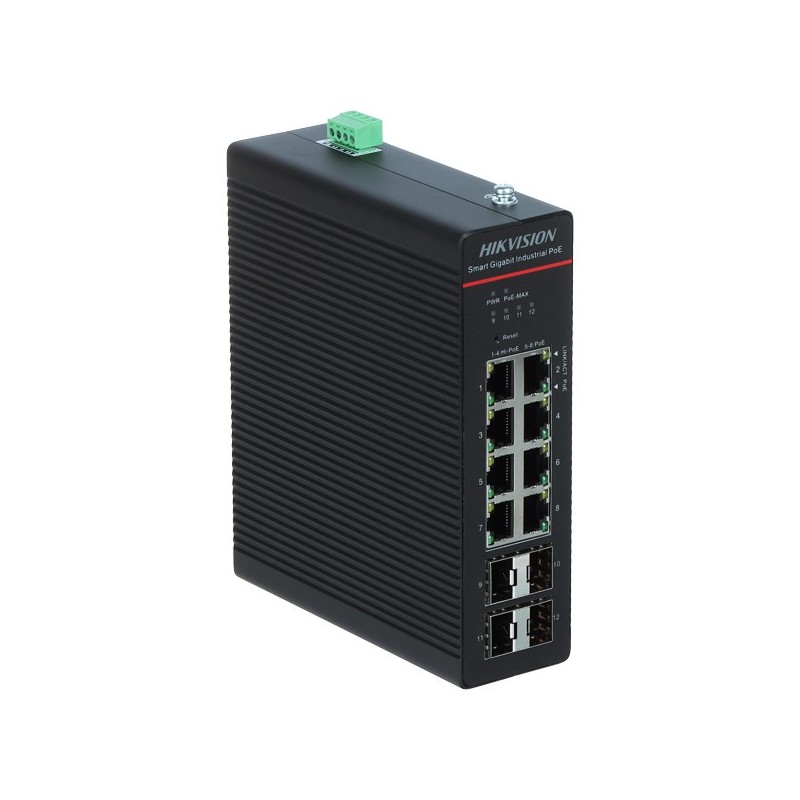

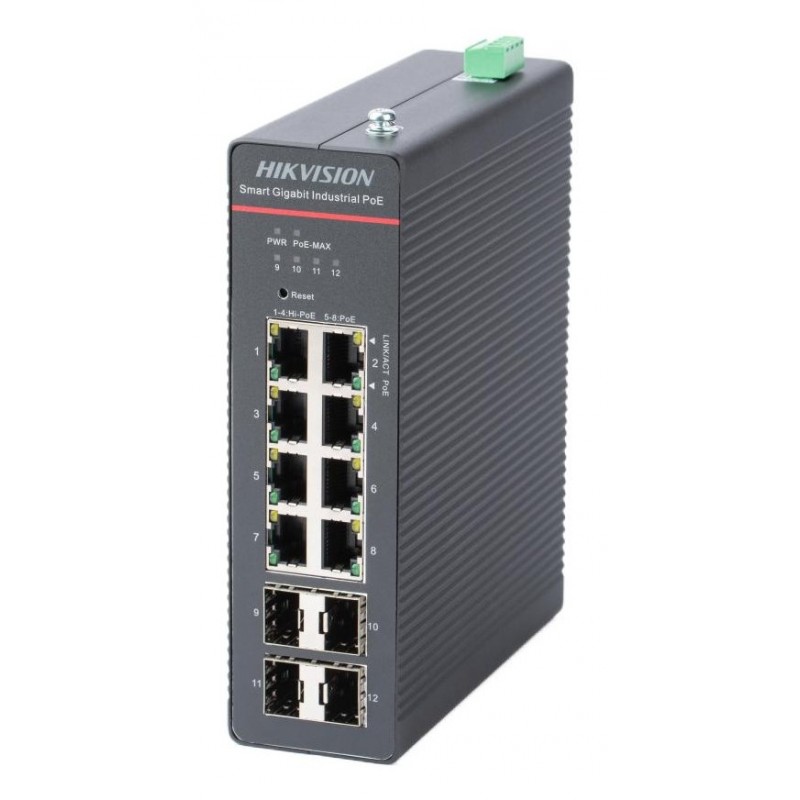

Дома / ///Hikvision DS-3T1512HP-SI-8P4F network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Новый Hikvision DS-3T1512HP-SI-8P4F network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Hikvision DS-3T1512HP-SI-8P4F network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Hikvision

301803311

Новый продукт

4 Элементы

Shipping 2025-11-19 days

199,00 € включая налог.

Certificates
Compliance certificatesREACH
Compliance certificatesWEEE
Compliance certificatesRoHS
Compliance certificatesLow Voltage Directive (LVD)
Compliance certificatesElectromagnetic Compatibility (EMC)
Compliance certificatesCB
Data transmission
Forwarding rate41.66 Mpps
MAC address table8000 entries
Packet buffer memory4.1 MB
Switching capacity56 Gbit/s
Design
DIN rail mountingYes
Housing materialMetal
International Protection (IP) codeIP40
LED indicatorsYes
Product colourBlack
Rack mountingNo
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368- 1: 2014+A11: 2017)
StackableNo
Management features
Quality of Service (QoS) supportYes
Switch typeManaged
Web-based managementYes
Network
10G supportNo
Broadcast storm controlYes
Ethernet LAN data rates1000 Mbit/s
Link aggregationYes
Networking standardsIEEE 802.3af
Networking standardsIEEE 802.1p
Networking standardsIEEE 802.3bt
Networking standardsIEEE 802.3at
Number of VLANs4094
Port mirroringYes
Rate limitingYes
Virtual LAN featuresVLAN Identifier ( VLAN ID)
VLAN supportYes
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 85 °C
Optical fiber
Switching optical modules typeGigabit Ethernet
Packaging content
Quick start guideYes
Packaging data
Package weight1.16 kg
Performance
FanlessYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Power connectorTerminal block (4-pin)
SFP module slots quantity4
Power
DC input voltage48 - 57 V
Input current7.5 A
Power consumption (max)307 W
Power consumption (typical)7 W
Power protection featuresSurge protection
Power sourceDC
Surge protectionYes
Surge protection voltage6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget300 W
Protocols
IP Source Guard (IPSG)Yes
Security
DHCP featuresDHCP client
DHCP featuresDHCP snooping
Loop protectionYes
Security algorithmsSNMP
Security algorithmsSNMPv2
Sustainability
Sustainability complianceYes
Weight & dimensions
Depth130 mm
Height46 mm
Weight840 g
Width155 mm
