Дома / ///D-Link DGS-1510-28XMP/E network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Новый D-Link DGS-1510-28XMP/E network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

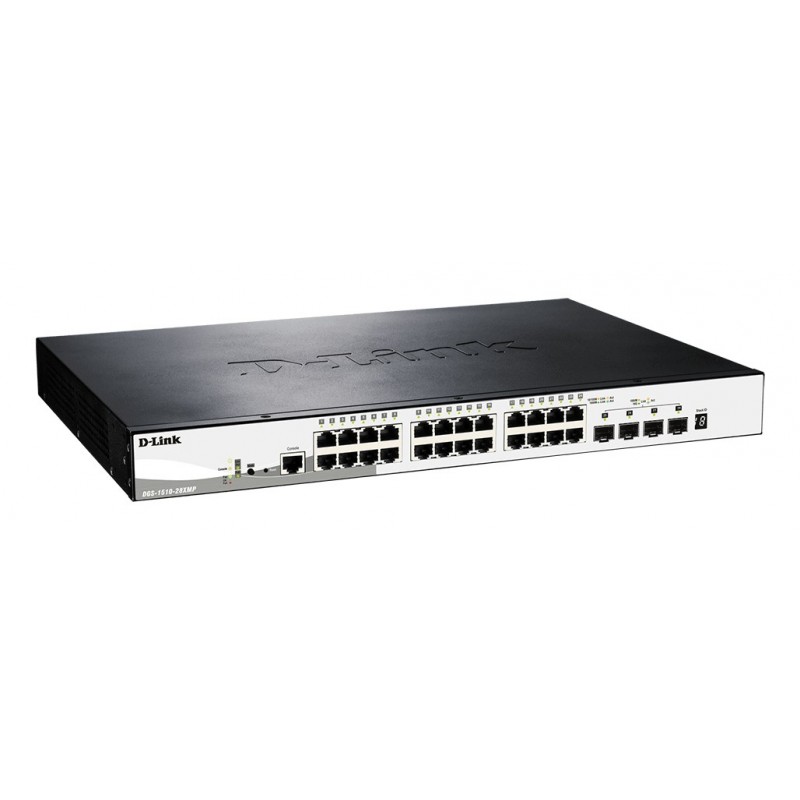

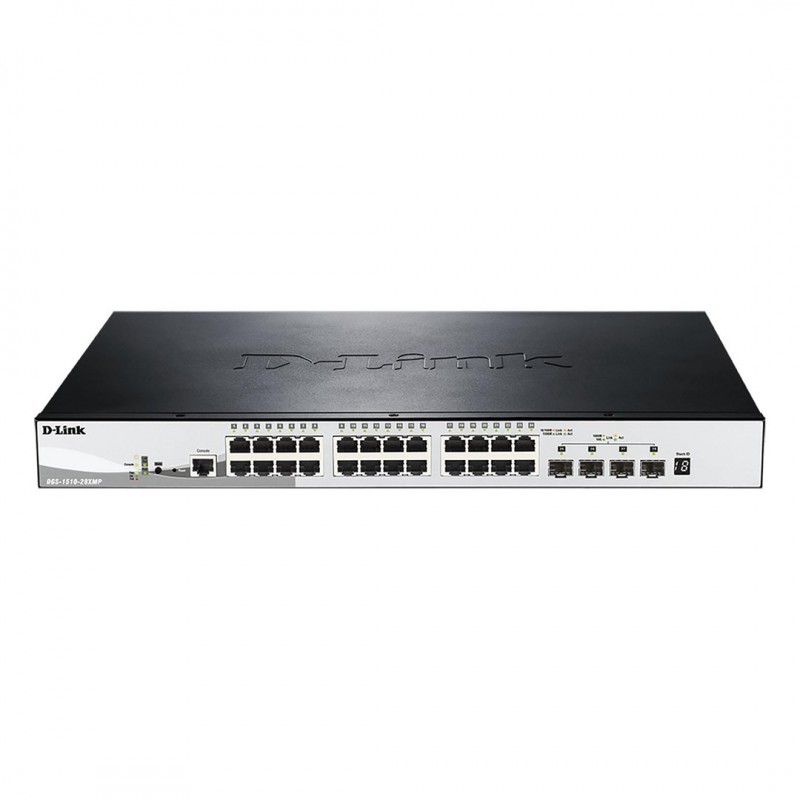

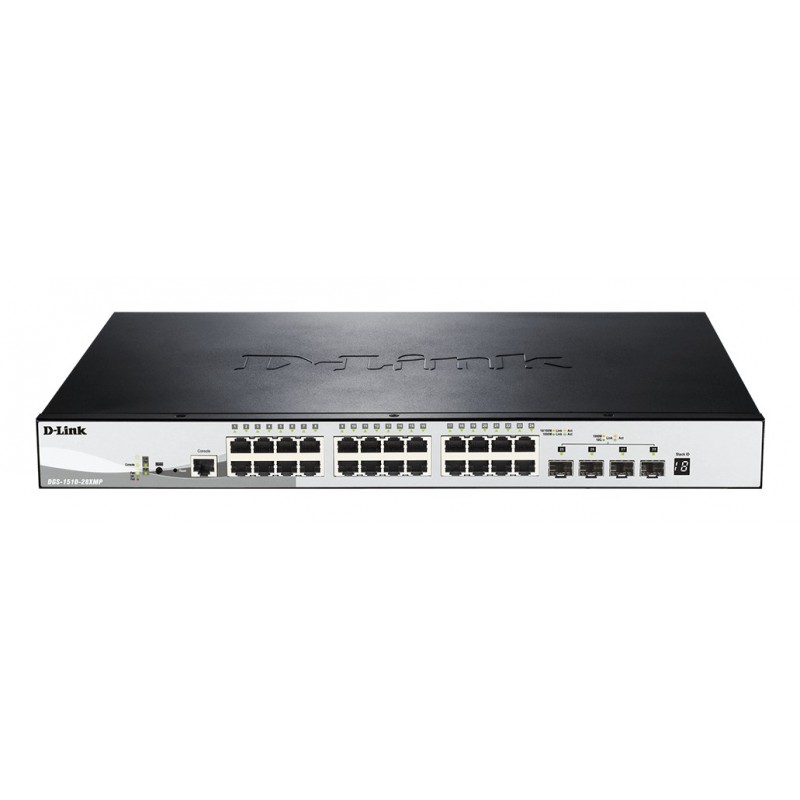

D-Link DGS-1510-28XMP/E network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

D-Link

DGS-1510-28XMP/E

Новый продукт

3 Элементы

Shipping 2025-11-25 days

Внимание: последний на складе!

889,00 € включая налог.

Data transmission
Jumbo frames9216
Jumbo frames supportYes
MAC address table16384 entries
Number of queues8
Packet buffer memory1.5 MB
Store-and-forwardYes
Switching capacity128 Gbit/s
Throughput95.24 Mpps
Design
LED indicatorsActivity
LED indicatorsPower
LED indicatorsPoE
LED indicatorsSpeed
LED indicatorsLink
Number of fans2 fan(s)
Product colourBlack
Product colourGrey
Rack mountingYes
SafetycUL, CB
StackableYes
Logistics data
Harmonized System (HS) code85176990
Management features
Quality of Service (QoS) supportYes
Switch layerL2/L3
Switch typeManaged
System event logYes
Traffic classificationYes
Multicast features
Multicast supportYes
Network
10G supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Cable types supportedCat5
Cable types supportedCat5e
Copper ethernet cabling technology1000BASE-T
Copper ethernet cabling technology100BASE-TX
Copper ethernet cabling technology10BASE-T
Flow control supportYes
Full duplexYes
Head-of-line (HOL) blockingYes
Link aggregationYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.1p
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.1Q
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.1D
Networking standardsIEEE 802.3ae
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.3ad
Networking standardsIEEE 802.1s
Networking standardsIEEE 802.1x
Networking standardsIEEE 802.3af
Number of VLANs4094
Port mirroringYes
Spanning tree protocolYes
Virtual LAN featuresTagged VLAN
Virtual LAN featuresProtocol-based VLAN
VLAN supportYes
Operational conditions
Heat dissipation1487.78 BTU/h
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-5 - 50 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 70 °C
Packaging data
Package depth510 mm
Package height121 mm
Package weight7.06 kg
Package width450 mm
Performance
Built-in processorYes
Flash memory32 MB
Internal memory256 MB
Mean time between failures (MTBF)274796 h
Processor frequency400 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fiber optic connectorSFP+
SFP+ module slots quantity4
Power

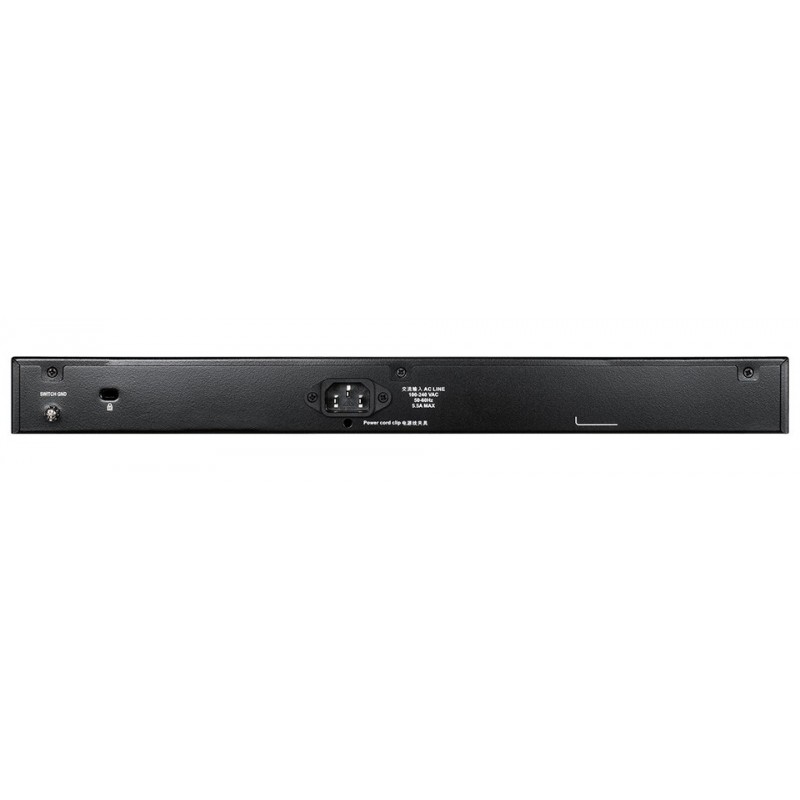

AC input voltage100 - 240 V
Power consumption (max)436.3 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget370 W
Security
Access Control List (ACL)Yes
Access Control List (ACL) rules768
AuthenticationMAC-based authentication, Port-based authentication
BPDU filtering/protectionYes
DHCP featuresDHCP server
DHCP featuresDHCP client
IGMP snoopingYes
Security algorithmsEAP
Security algorithmsSSL/TLS
Security algorithms802.1x RADIUS
Security algorithmsSSH
Security algorithmsSSH-2
Security algorithmsSNMP
SSH/SSL supportYes
Technical details
Master (outer) cases per pallet (air)24 pc(s)
Master (outer) cases per pallet (sea)24 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)561.6 kg
Pallet gross weight (sea)561.6 kg
Pallet gross width120 cm
Pallet height (air)2.08 m
Pallet height (sea)2.08 m
Products per pallet (air)72 pc(s)
Products per pallet (sea)72 pc(s)
Products per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight22.6 kg
Shipping (inner) case height48.5 cm
Shipping (inner) case length53 cm
Shipping (inner) case net weight14.3 kg
Shipping (inner) case width38.5 cm
Weight & dimensions
Depth308.5 mm
Height44 mm
Weight4.25 kg
Width440 mm
