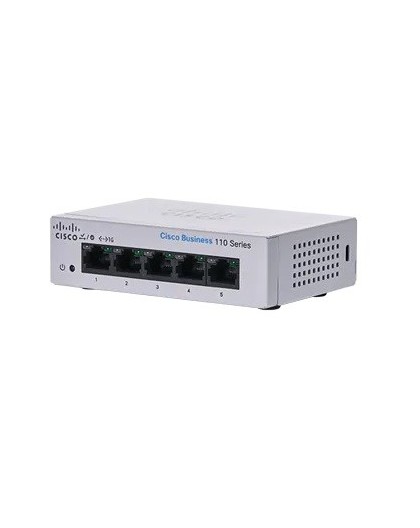

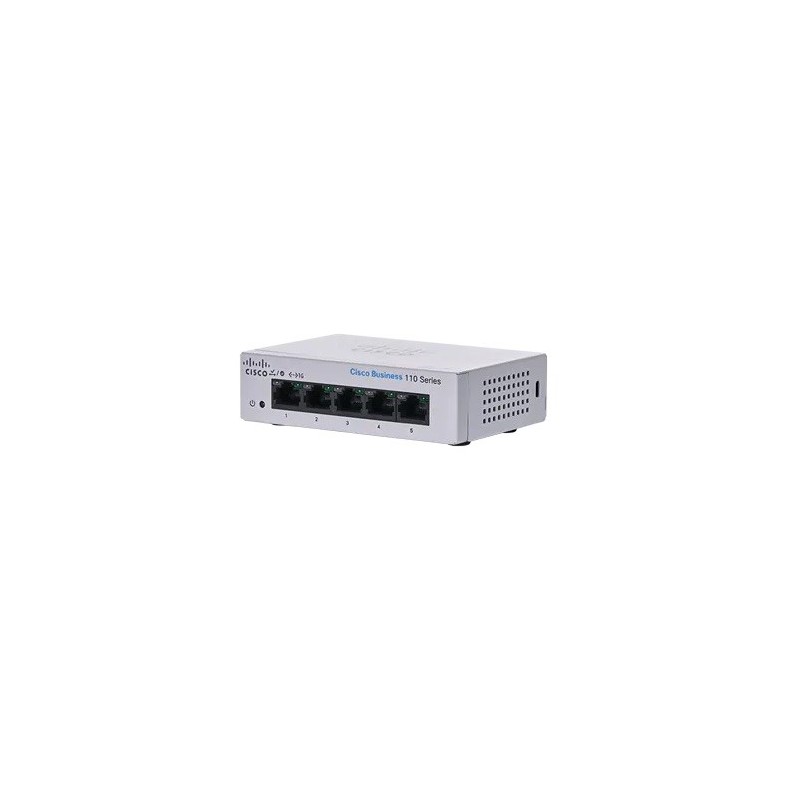

CBS110 UNMANAGED 5-PORT GE/DESKTOP EXT PS
CBS110-5T-D-EU
Новый продукт
10 Элементы
Shipping 2025-11-20 days
49,00 € включая налог.
| Data transmission | |
| Forwarding rate | 7.4 Mpps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Number of queues | 4 |
| Switching capacity | 10 Gbit/s |
| Design | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3x |
| Operational conditions | |
| Heat dissipation | 9.34 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Packaging data | |
| Quick start guide | Yes |
| Performance | |
| Mean time between failures (MTBF) | 4243002 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power | |
| DC input voltage | 12 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Redundant power supply (RPS) support | No |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Weight & dimensions | |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 230 g |
| Width | 110 mm |
