Дома / ///RF Elements HG3-CC-S90 network antenna Horn antenna N-type 9.6 dBi
Новый RF Elements HG3-CC-S90 network antenna Horn antenna N-type 9.6 dBi

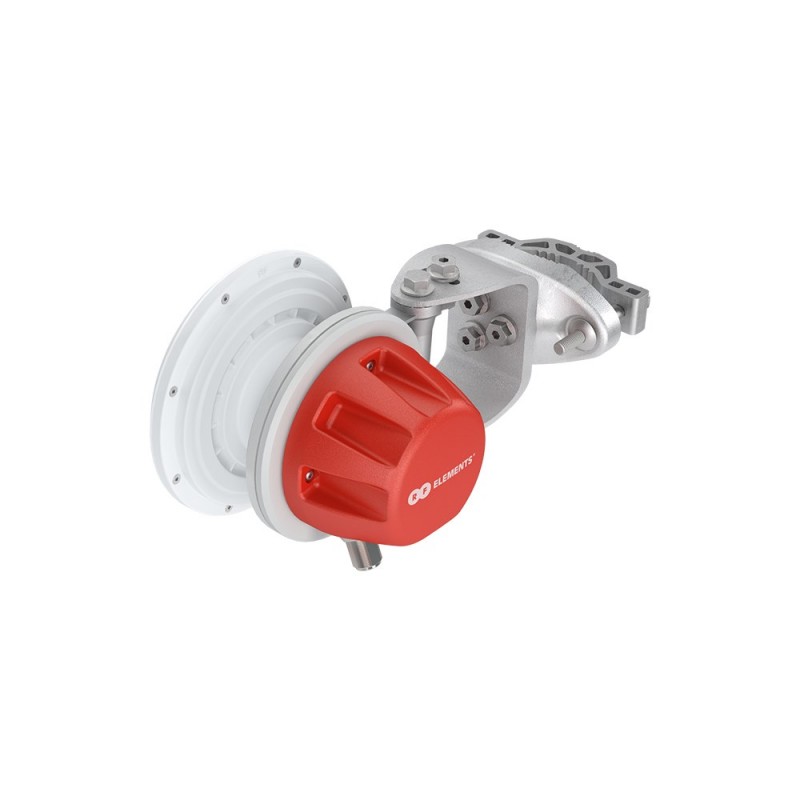

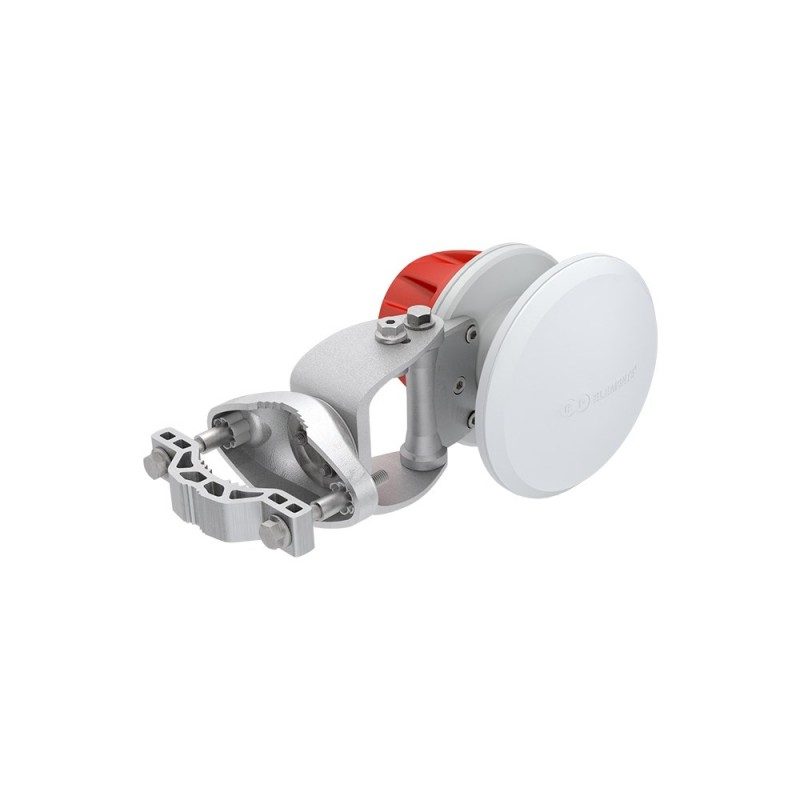

RF Elements HG3-CC-S90 network antenna Horn antenna N-type 9.6 dBi

RF Elements

HG3-CC-S90

Новый продукт

8 Элементы

Shipping 2025-11-18 days

109,00 € включая налог.

Features
Antenna connector typeN-type
Antenna typeHorn antenna
Connector genderFemale
Downtilt25°
Front to back ratio28 dB
Housing materialAluminium
Housing materialStainless steel
Housing materialZinc
Housing materialPolypropylene (PP)
International Protection (IP) codeIP55
MountingPole
Mounting pipe30 - 90 mm
PolarizationDual polarization
Product colourWhite
Product colourRed
PurposeOutdoor
Survival wind speed160 km/h
Ultraviolet (UV) resistantYes
Voltage Standing Wave Ratio (VSWR)1.6/1.9
Wind load22
Logistics data
Master (outer) case gross weight27.4 kg
Master (outer) case height335 mm
Master (outer) case length510 mm
Master (outer) case width940 mm
Products per master (outer) case10 pc(s)
Operational conditions
Operating temperature (T-T)-30 - 55 °C
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package depth239 mm
Package height183 mm
Package weight2.6 kg
Package width305 mm
Performance
Antenna gain level (max)9.6 dBi
Frequency band5.18 - 6.4 GHz
Horizontal beam width90°
Impedance50 Ω
Vertical beam width90°
Weight & dimensions
Depth157 mm
Height152 mm
Weight1.8 kg
Width312 mm
