Дома / ///Teltonika Industrial router, IoT LTE gateway TRB246 Cat 4, 1x RJ45 100Mb/s, IP30
Новый Teltonika Industrial router, IoT LTE gateway TRB246 Cat 4, 1x RJ45 100Mb/s, IP30

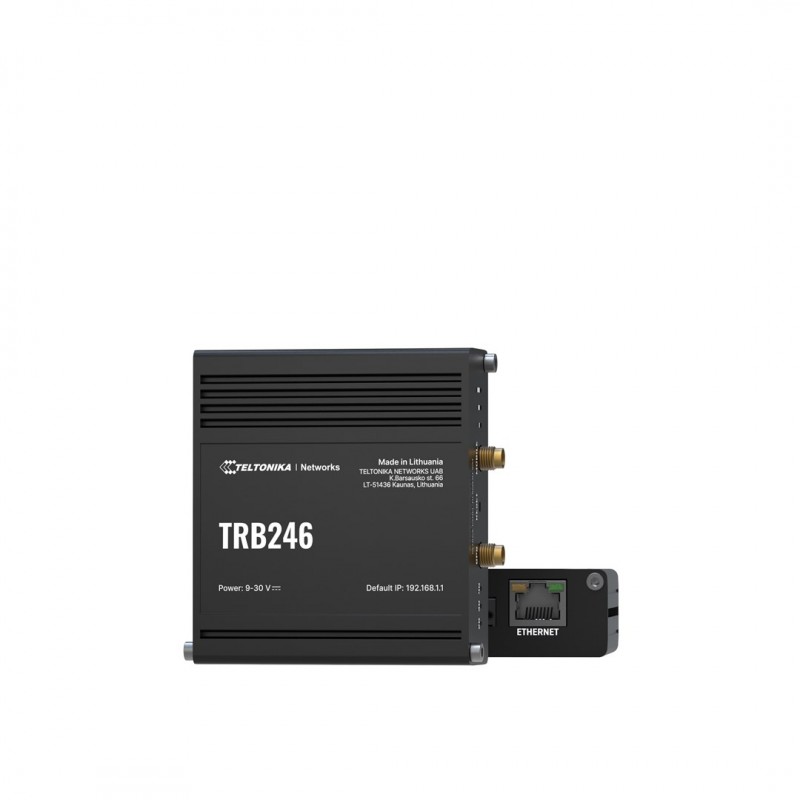

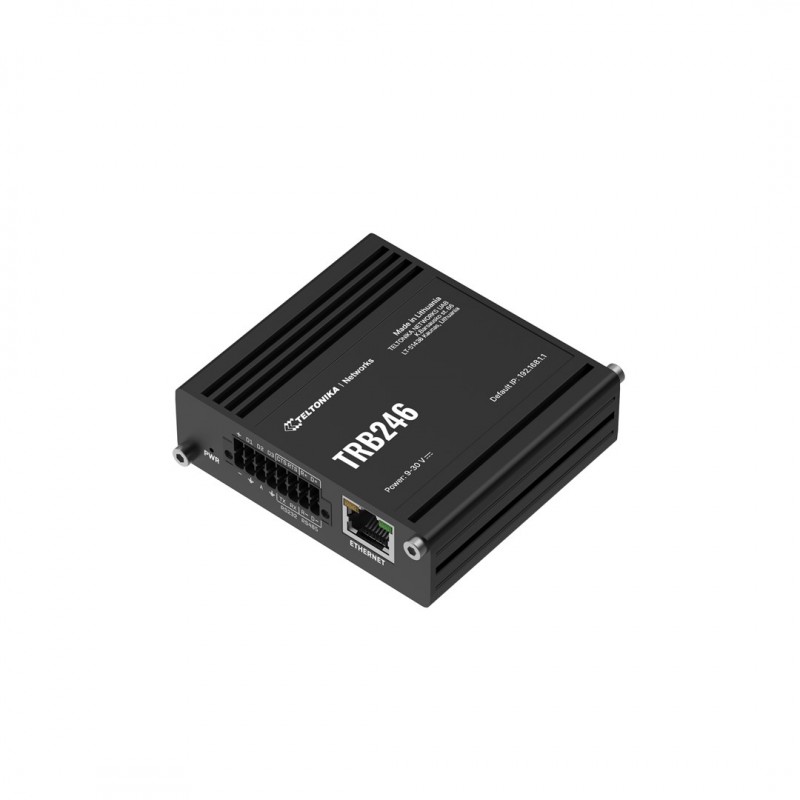

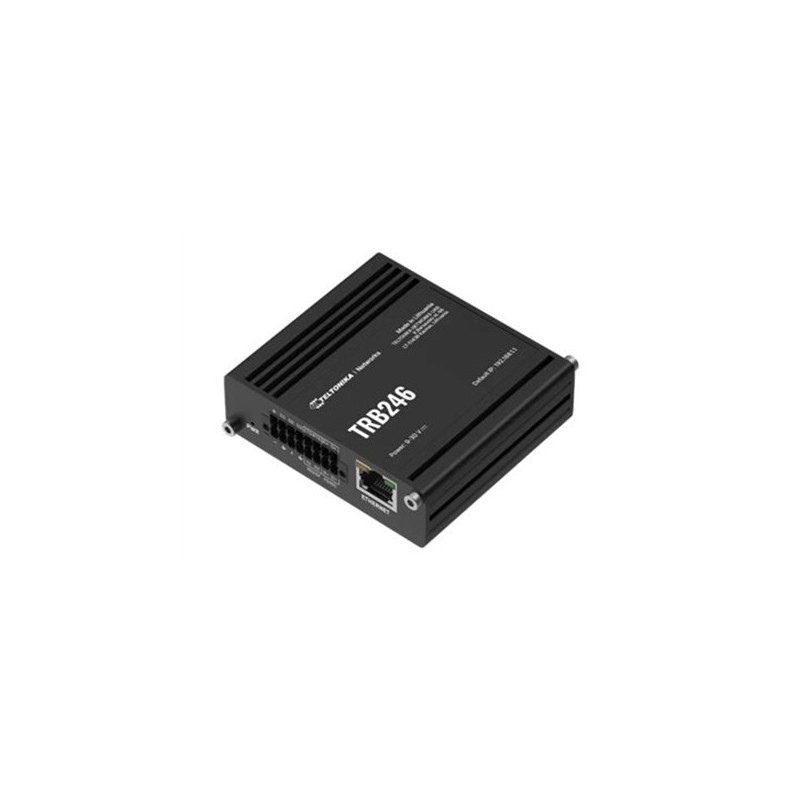

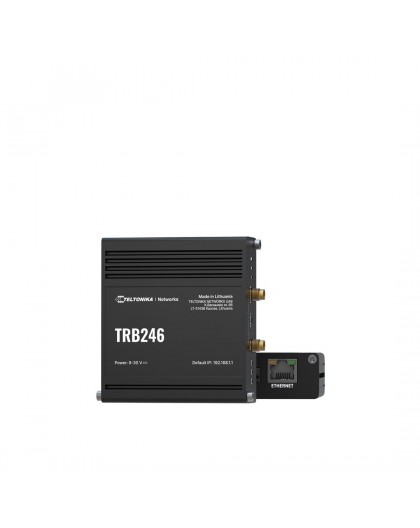

Teltonika Industrial router, IoT LTE gateway TRB246 Cat 4, 1x RJ45 100Mb/s, IP30

Teltonika

TRB246000000

Новый продукт

4 Элементы

Shipping 2025-11-19 days

229,00 € включая налог.

Certificates
CertificationCE, UKCA, RCM, CB, EAC, UCRF, WEEE
Design
Device typeCellular network gateway
Housing materialAluminium
LED indicatorsPower
LED indicatorsSignal strength
LED indicatorsLAN
LED indicatorsStatus
Market positioningIndustrial
MountingDIN-rail/Wall mounting
Product colourBlack
Suitable for indoor useYes
Ethernet LAN features
Auto MDI/MDI-XYes
DHCP serverYes
Ethernet LANYes
Ethernet LAN data rates100
Ethernet LAN data rates10
Ethernet LAN interface typeFast Ethernet
Full duplexYes
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.11e
Networking standardsIEEE 802.3az
Networking standardsIEEE 802.3
GPS Performance
BeiDouYes
Embedded GNSSYes
GalileoYes
GLONASSYes
Quasi-Zenith Satellite System (QZSS)Yes
Management features
Management platformRMS
Mobile network
Data network2G
Data networkLTE
Data network4G
Data network3G
Data transfer rate (LTE) (download)150 Mbit/s
Data transfer rate (LTE) (upload)50 Mbit/s
Number of SIM cards2
Short Message Service (SMS)Yes
SIM card typeMiniSIM
SIM interface3 V
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 75 °C
Performance

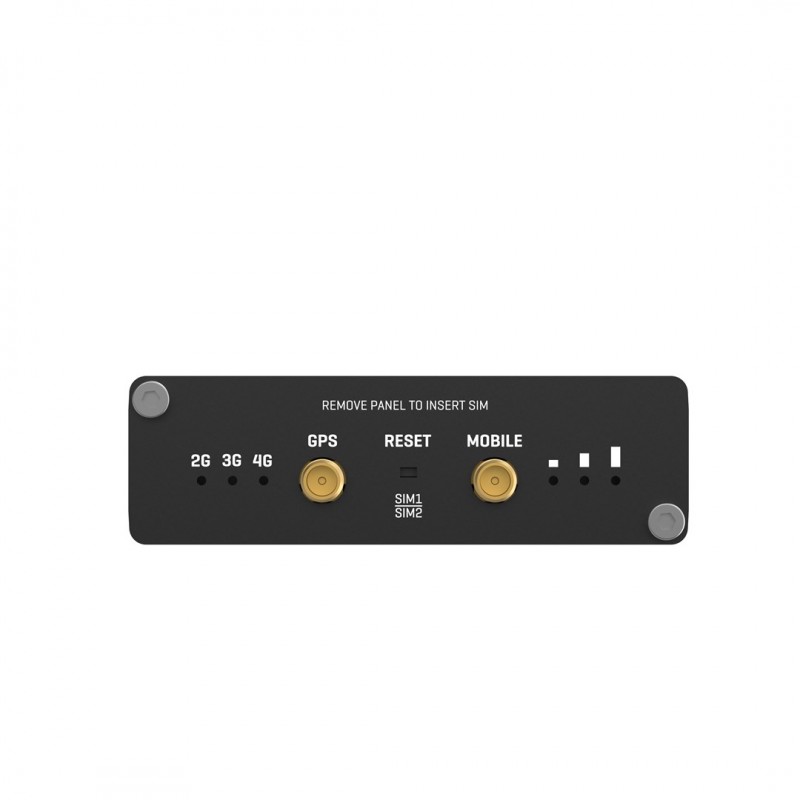

Antenna connector typeSMA
Antenna typeExternal
Antennas quantity2
Built-in processorYes
GPS (satellite)Yes
Internal storage capacity0.016 GB
Processor frequency0.58 GHz
Processor manufacturerMediaTek
RAM capacity0.128 GB
RAM typeDDR2
Web-based managementYes

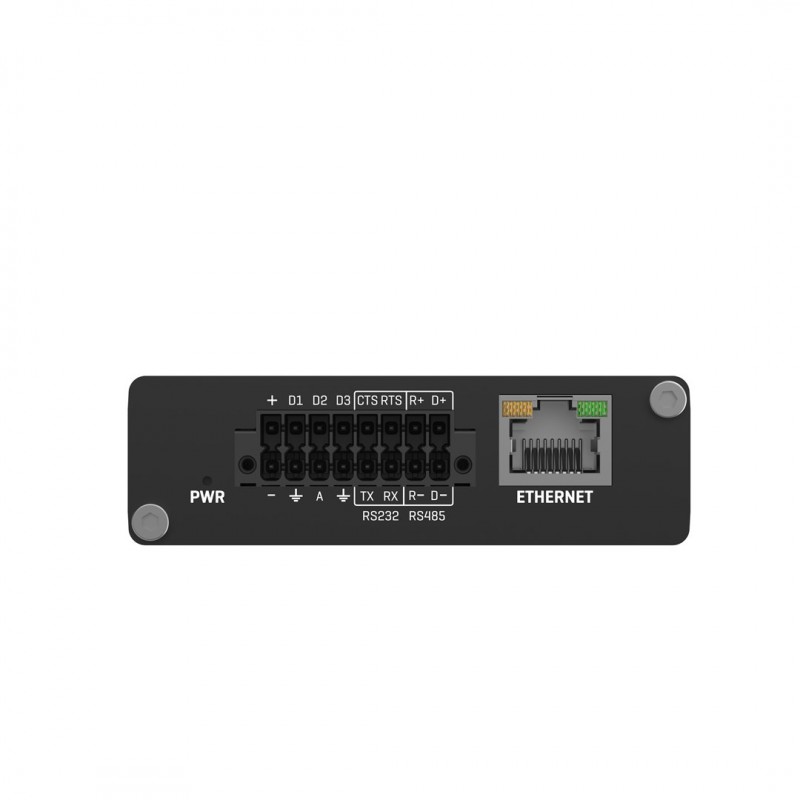

Ports & interfaces
Ethernet LAN (RJ-45) ports1
Serial interface typeRS-232
Serial interface typeRS-232/485
Serial ports quantity1
Power
External power adapterYes
Input voltage9 - 30 V
Power source typeDC
Safety warning
WarningsDo not dismantle the unit yourself, there is a risk of electric shock.
WarningsDo not open the appliance housing - risk of electric shock.
WarningsDo not expose the device to extreme temperatures.
WarningsAvoid contact with liquids as this may cause electric shock.
WarningsThe product may emit radio waves that may interfere with other electronic devices.
WarningsDo not expose the device to water or moisture.
Security
DMZ supportYes
Port forwardingYes
Serial interface
RS-232 signalsCTS
RS-232 signalsRx
RS-232 signalsRTS
RS-232 signalsTx
RS-485 signalsRDA-
RS-485 signalsRDB+
RS-485 signalsData-
RS-485 signalsData+
Weight & dimensions
Depth74.2 mm
Height25 mm
Weight165 g
Width83 mm
Wireless LAN features
Wi-FiNo
