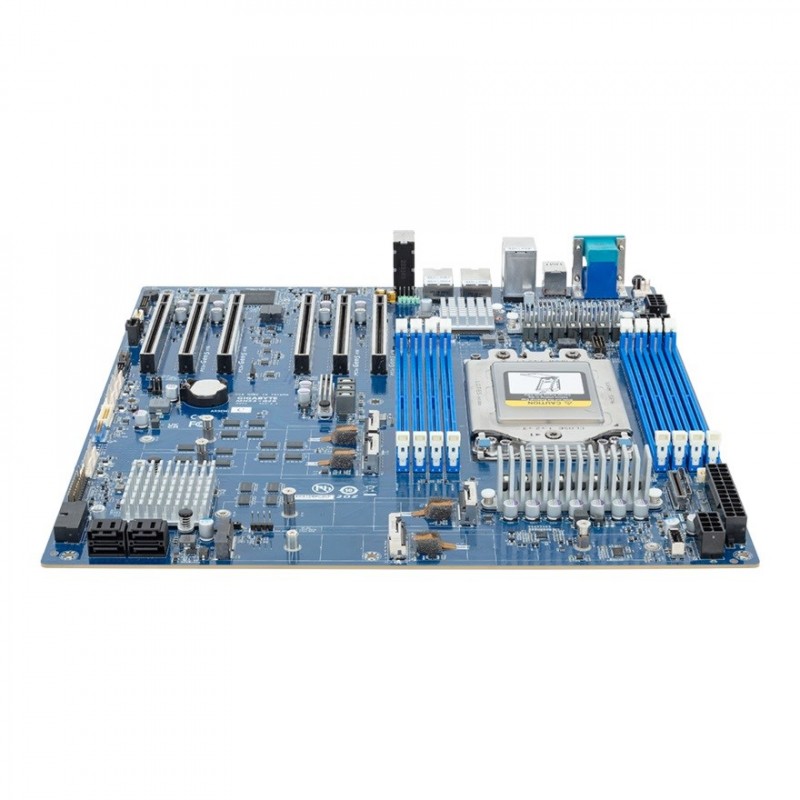

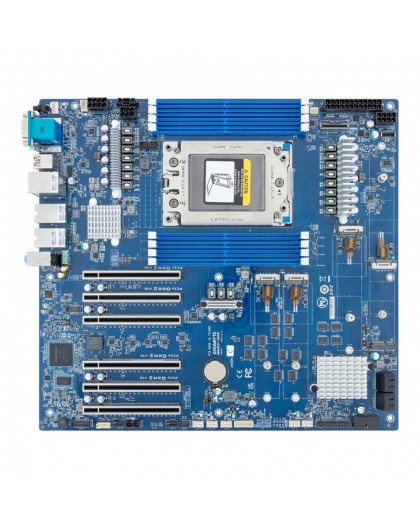

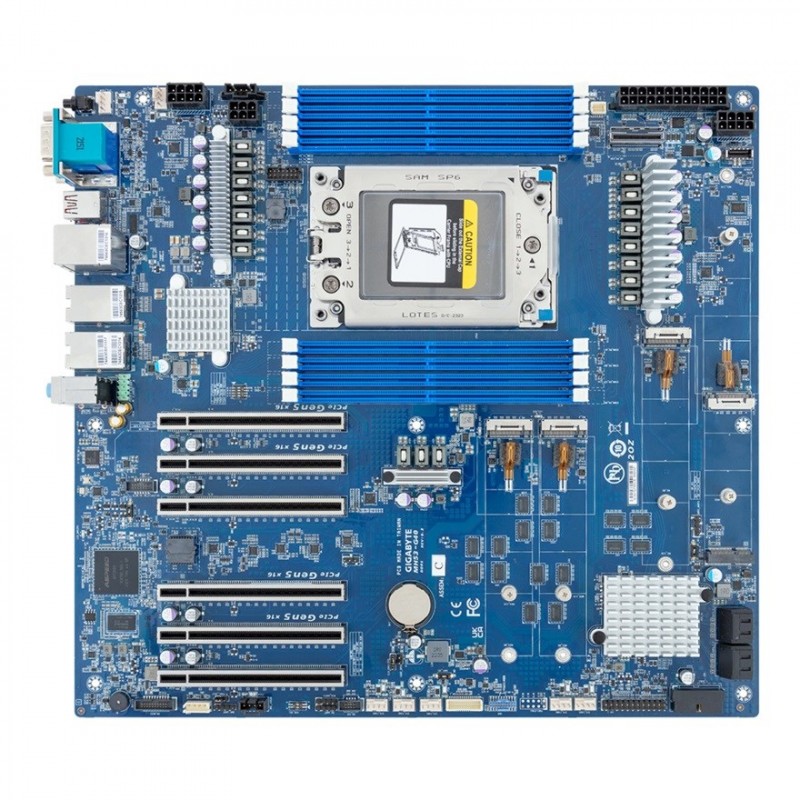

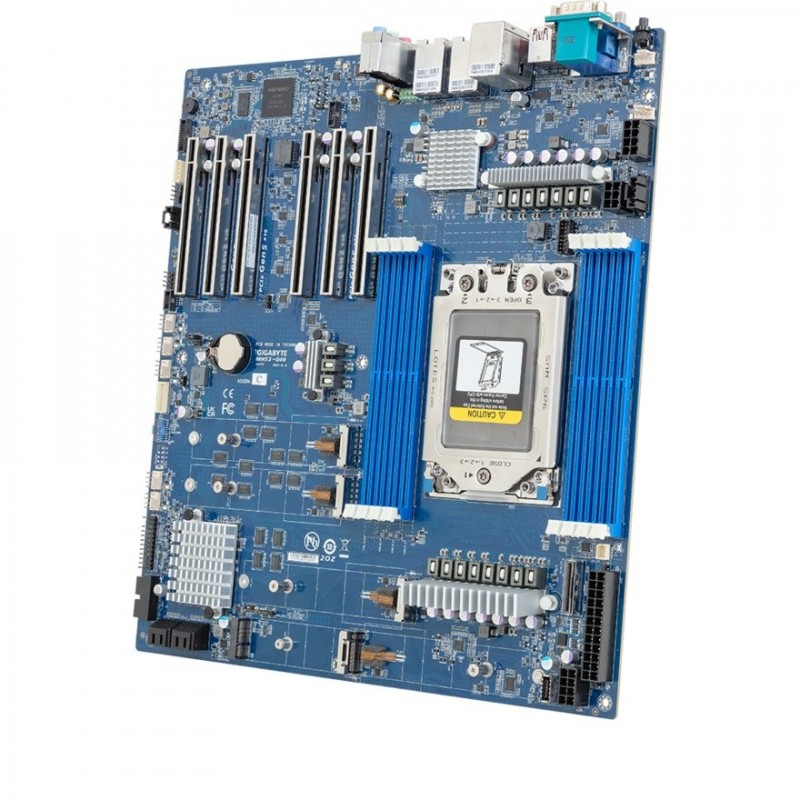

Motherboard - Gigabyte MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90
9MH53G40MR-000
Новый продукт
5 Элементы
Shipping 0001-01-05 days
1 009,00 € включая налог.
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 6 |
| Features | |
| Component for | Server/workstation |
| Motherboard chipset | AMD WRX90 |
| Motherboard chipset family | AMD |
| Motherboard form factor | EATX |
| Product colour | Blue |
| Windows operating systems supported | Windows 10 x64 |
| Windows operating systems supported | Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Number of MCIO connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| Memory | |
| ECC сompatibility | ECC |
| Memory channels | Octa-channel |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory clock speeds | 5200 |
| Supported memory types | DDR5 ECC RDIMM |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Packaging content | |
| DFU / User manual | Y |
| Packaging data | |
| Package depth | 355 mm |
| Package height | 78 mm |
| Package width | 409 mm |
| Processor | |
| Compatible processor series | AMD Ryzen Threadripper PRO 7000 WX-Series |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Supported processor sockets | Socket sTR5 |

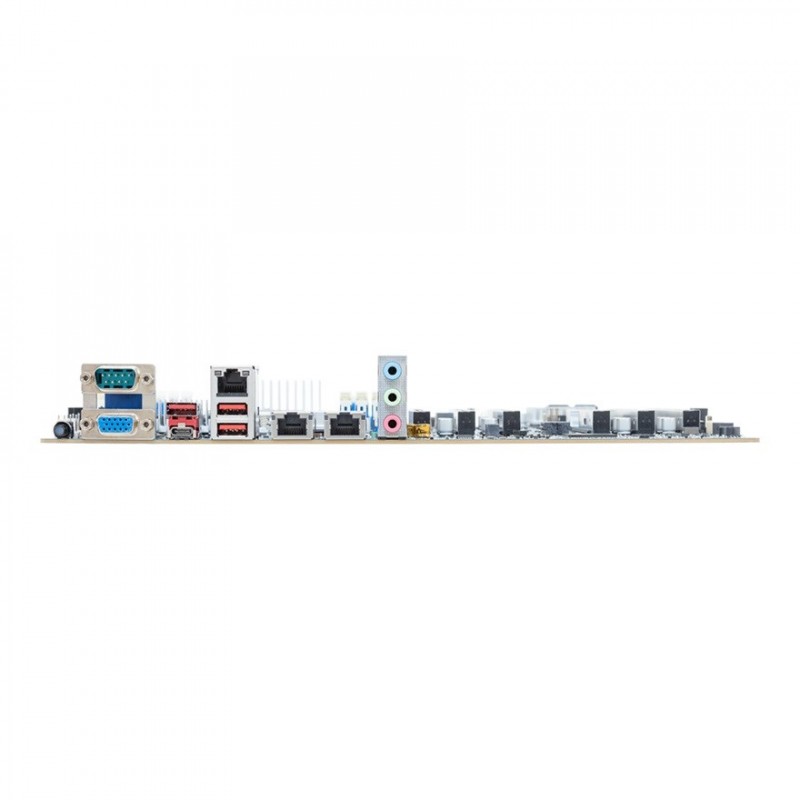

| Rear panel I/O ports | |
| COM ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of audio jack connectors | 3 |
| Port Management LAN | Yes, 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Warnings | The motherboard may contain electronic components hazardous to health - avoid direct contact. |
| Warnings | Do not open or disassemble the motherboard. |
| Storage controllers | |
| RAID levels | 5 |
| RAID levels | 10 |
| RAID levels | 1 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 330.2 mm |
| Width | 304.8 mm |
