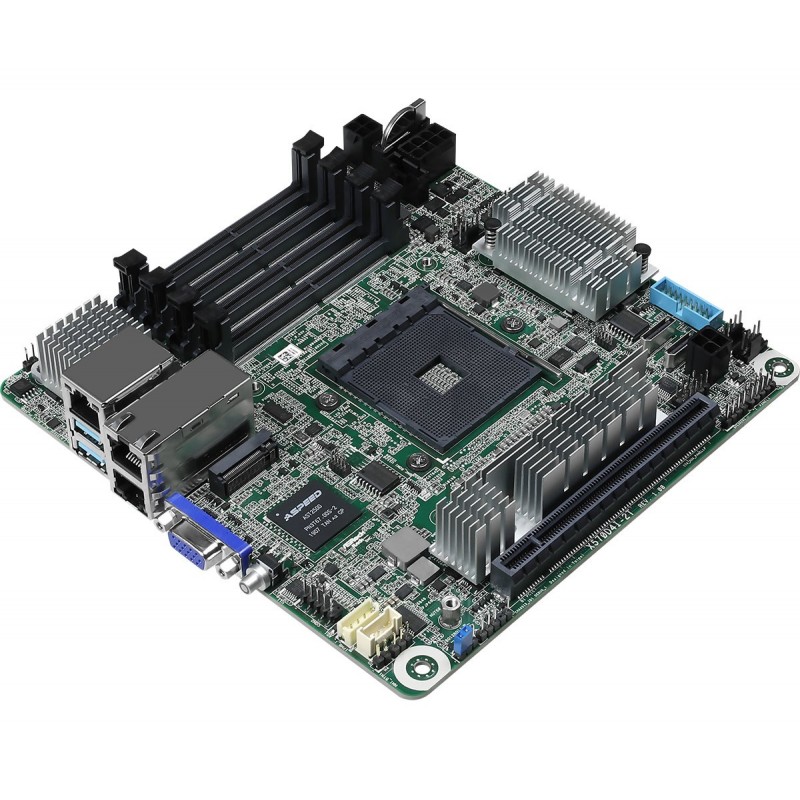

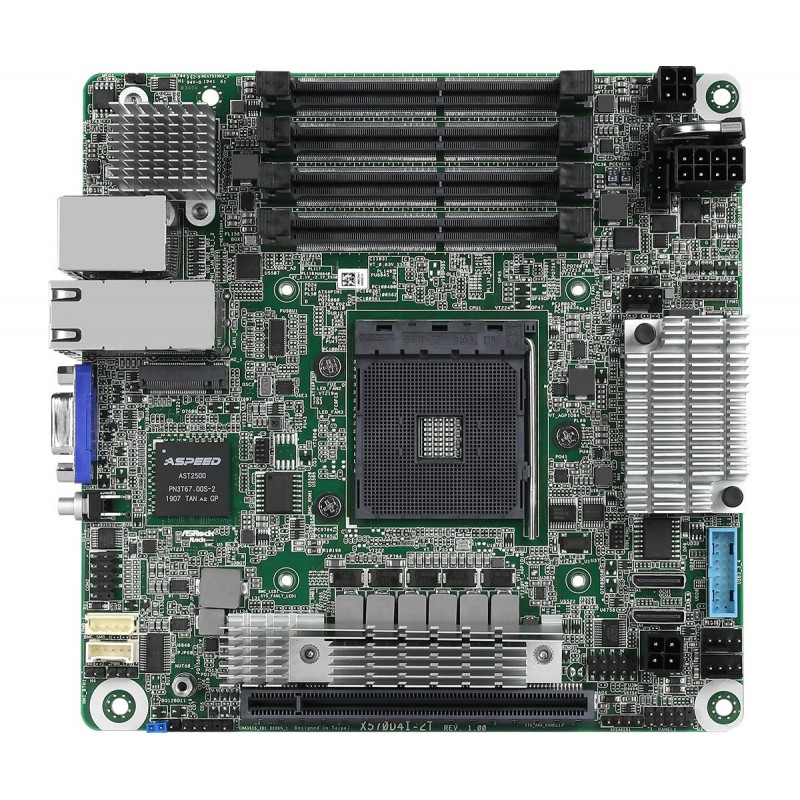

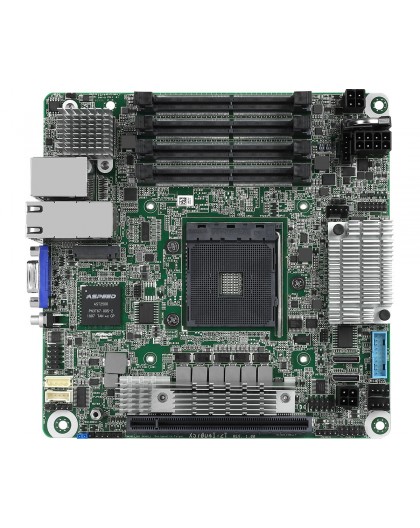

Asrock X570D4I-2T motherboard AMD X570 Socket AM4 mini ITX
X570D4I-2T
Новый продукт
Этого товара нет в наличии
639,00 € включая налог.
| BIOS | |
| ACPI version | 2.0 |
| BIOS memory size | 32 Mbit |
| BIOS type | UEFI AMI |
| System Management BIOS (SMBIOS) version | 2.8 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| Features | |
| Component for | PC |
| Motherboard chipset | AMD X570 |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Graphics | |
| Graphics card | AST2500 |
| Graphics card family | Aspeed |
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2500 |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 8 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.2 V |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2933 |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel® X550-AT2 |
| LAN controller | Realtek RTL8211E |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
| Weight | 760 g |
| Processor | |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| Supported storage drive interfaces | Serial ATA III, SATA III |
| Weight & dimensions | |
| Depth | 170.2 mm |
| Height | 285 mm |
| Width | 170.2 mm |
