Новый Материнская плата MSI PRO B650M-P, AMD B650, Socket AM5, micro ATX

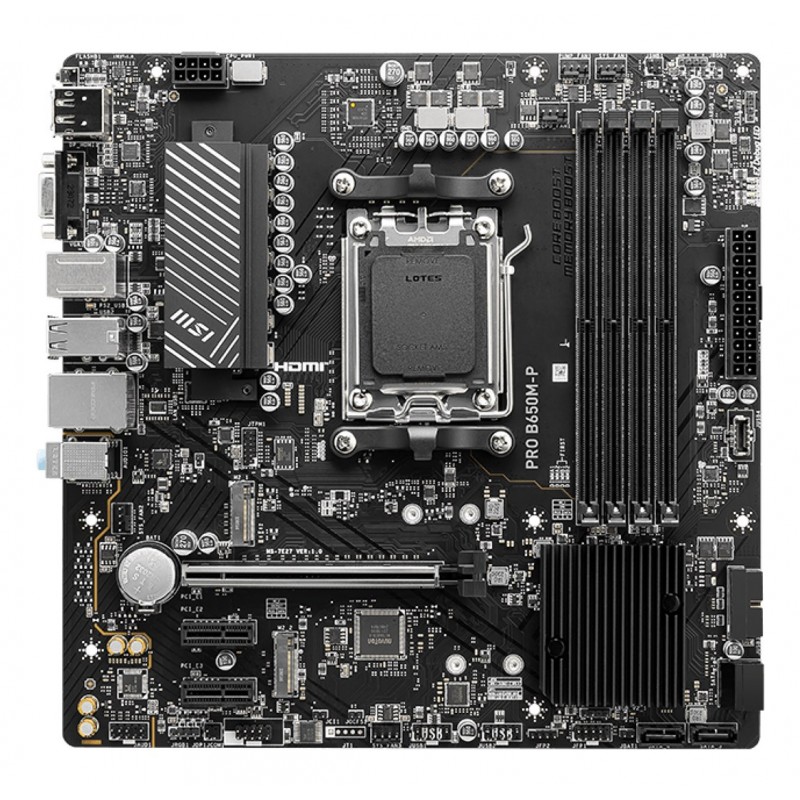

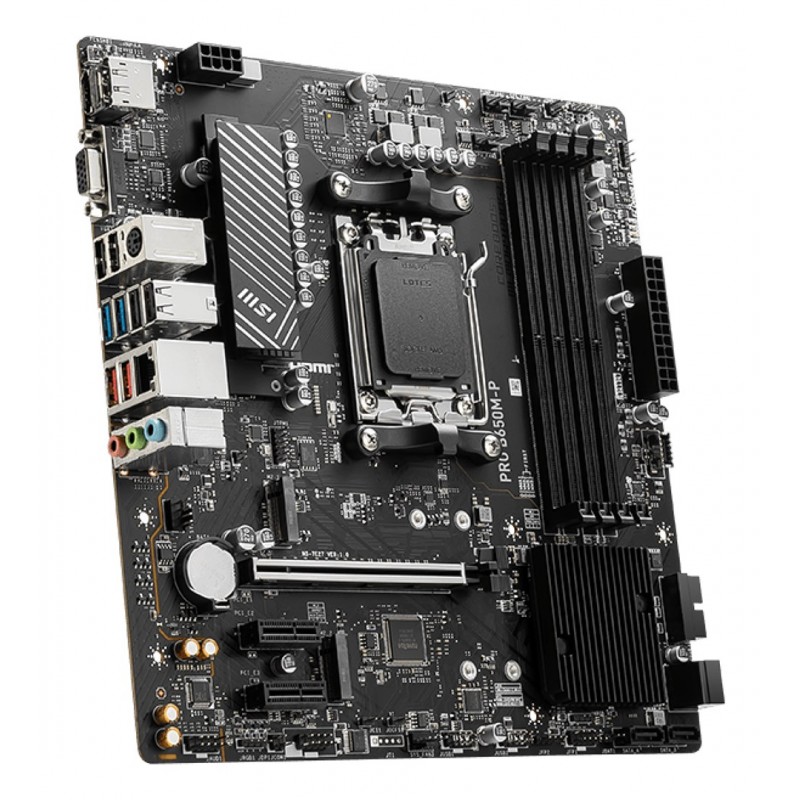

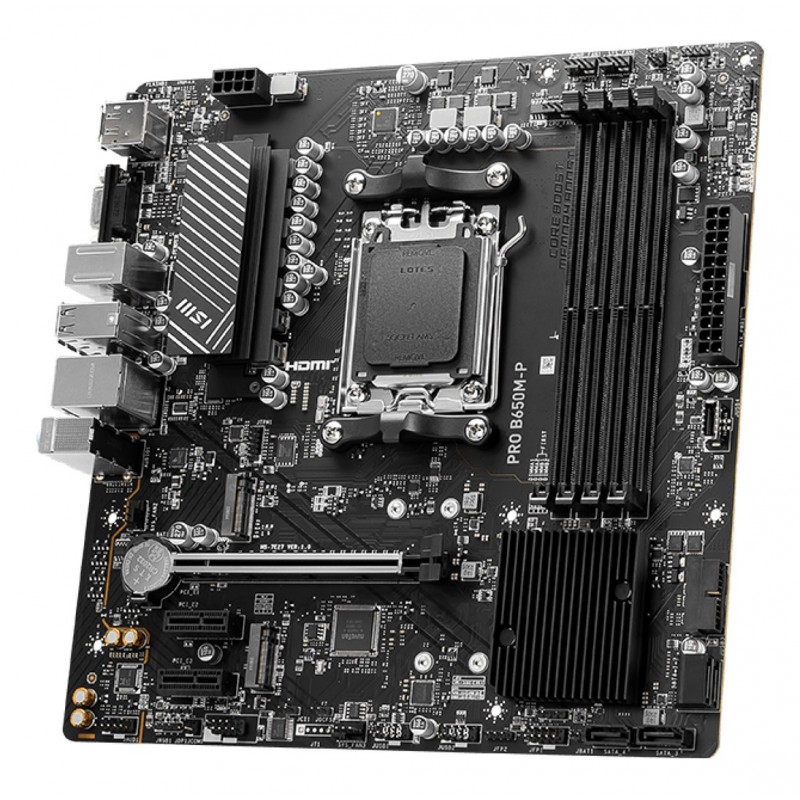

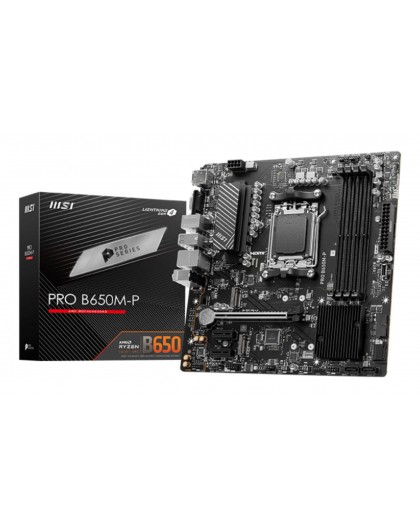

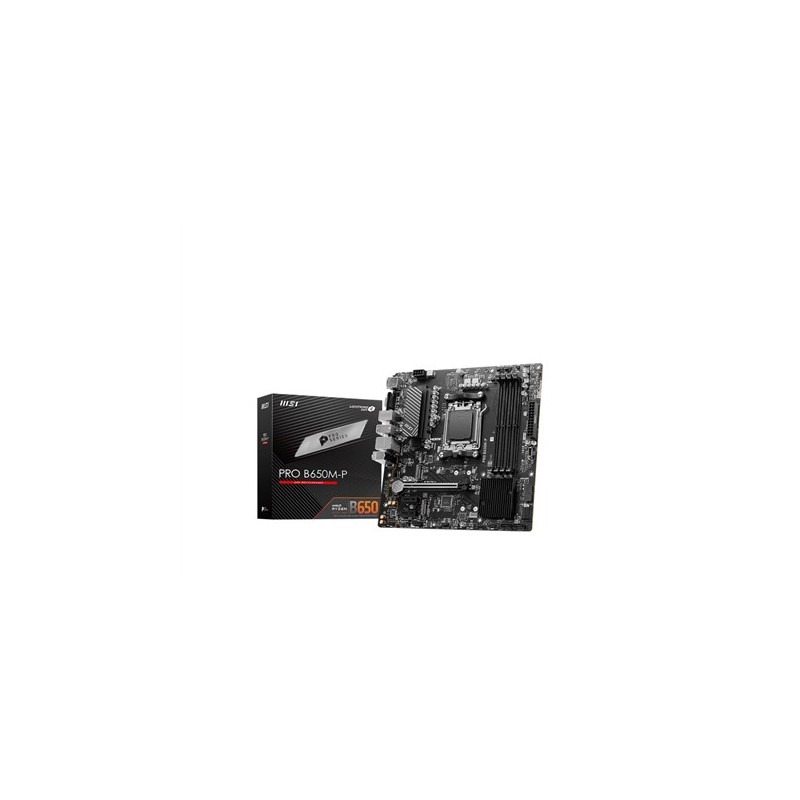

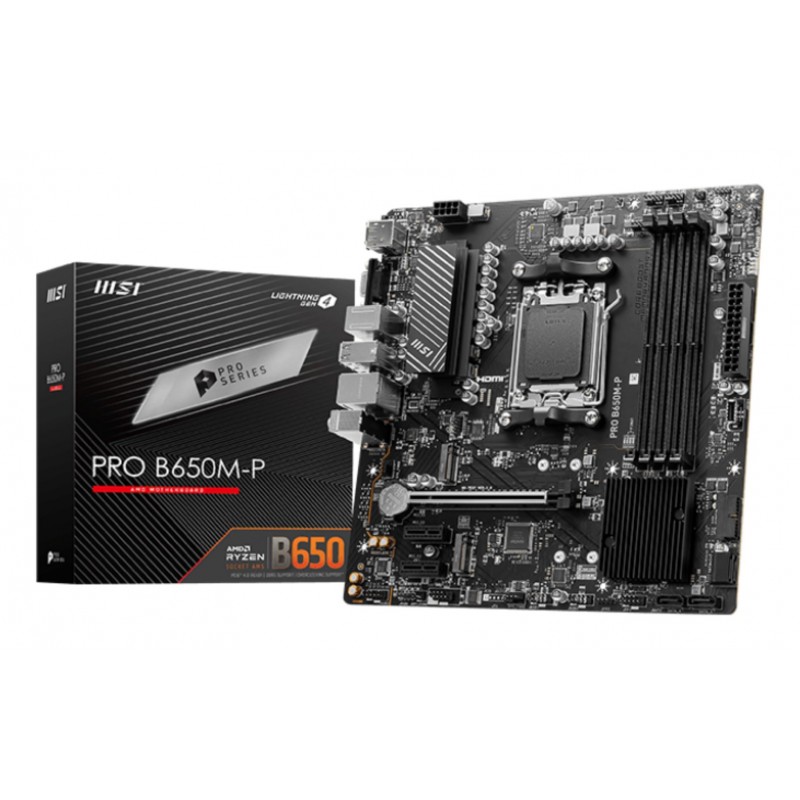

Материнская плата MSI PRO B650M-P, AMD B650, Socket AM5, micro ATX

MSI

7E27-001R

Новый продукт

69 Элементы

Shipping 2025-11-24 days

149,00 € включая налог.

BIOS
ACPI version6.4
BIOS memory size256 Mbit
BIOS typeUEFI AMI
System Management BIOS (SMBIOS) version3.5
Expansion slots
Number of M.2 (M) slots2
PCI Express x16 (Gen 3.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Component forPC
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Motherboard form factormicro ATX
PC health monitoringFan
Product colourBlack
Windows operating systems supportedWindows 11 x64
Graphics
On-board graphics cardNo
Internal I/O
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
CPU fan connectorYes
Front panel audio connectorYes
Front panel connectorYes
Number of SATA III connectors4
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory192 GB
Number of memory slots4
Supported memory clock speeds4800 MHz
Supported memory clock speeds5200
Supported memory clock speeds5800
Supported memory clock speeds5400
Supported memory clock speeds5000
Supported memory clock speeds6000
Supported memory clock speeds5600
Supported memory typesDDR5-SDRAM
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125-BG
Wi-FiNo
Processor
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
VGA (D-Sub) ports quantity1
Safety warning
WarningsAvoid contact with liquids to prevent electronic damage.
WarningsDispose of in accordance with local regulations for electronic waste.
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
Storage controllers
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA
Weight & dimensions
Depth243.8 mm
Width243.8 mm
