Новый BIOSTAR A520MT motherboard

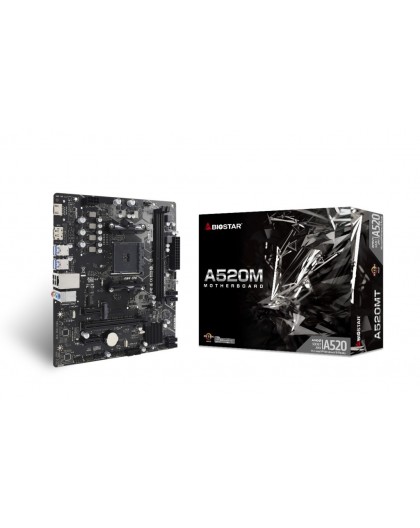

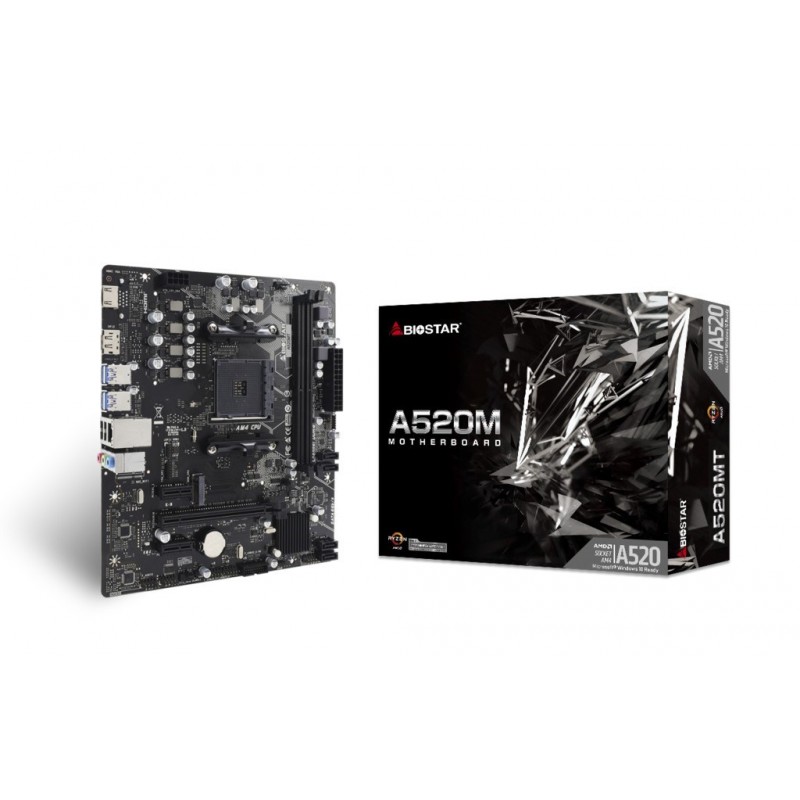

BIOSTAR A520MT motherboard

Biostar

A520MT

Новый продукт

9 Элементы

Shipping 2025-11-14 days

59,00 € включая налог.

Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetAMD A520
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Number of COM connectors1
Number of SATA III connectors4
TPM connectorYes
USB 2.0 connectors2
USB 3.2 (Gen 2) ports2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
Maximum internal memory64 GB
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds3200
Supported memory clock speeds2400
Supported memory clock speeds3800
Supported memory clock speeds2133
Supported memory clock speeds2667
Supported memory clock speeds4400
Supported memory clock speeds2933
Supported memory clock speeds3600
Supported memory clock speeds4000
Supported memory typesDDR4-SDRAM
Network
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wi-FiNo
Processor
Compatible processor seriesAMD Ryzen™ 3
Processor manufacturerAMD

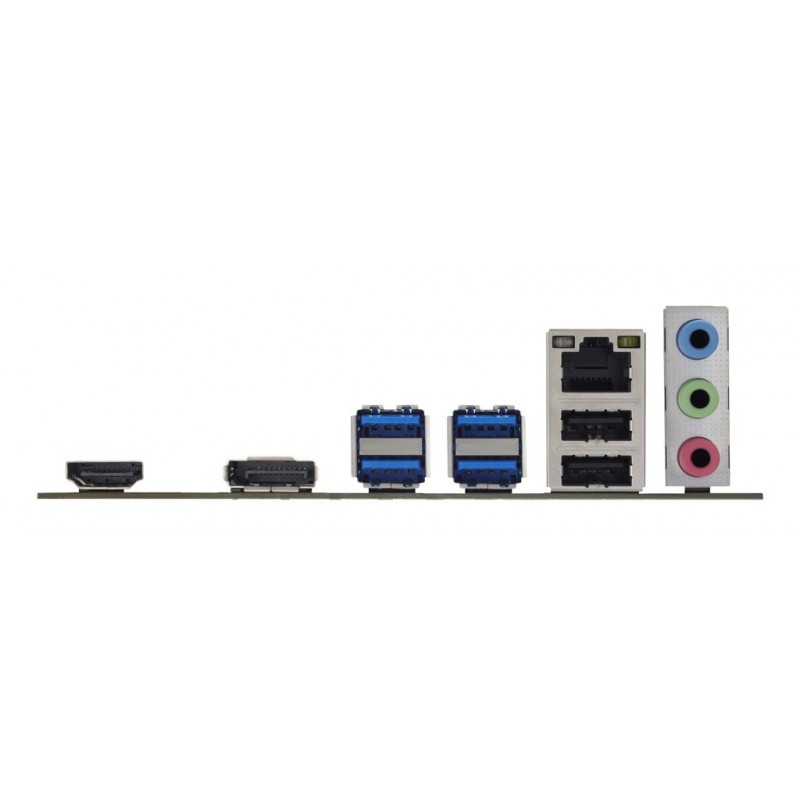

Rear panel I/O ports
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Headphone outputs1
Line-inYes
Microphone inYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Safety warning
WarningsDispose of according to local electro-waste regulations.
WarningsAvoid direct contact with sensitive electronic components.
WarningsStore away from water and sources of moisture.
Storage controllers
RAID levels10
RAID levels1
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Weight & dimensions
Depth208 mm
Width235 mm
