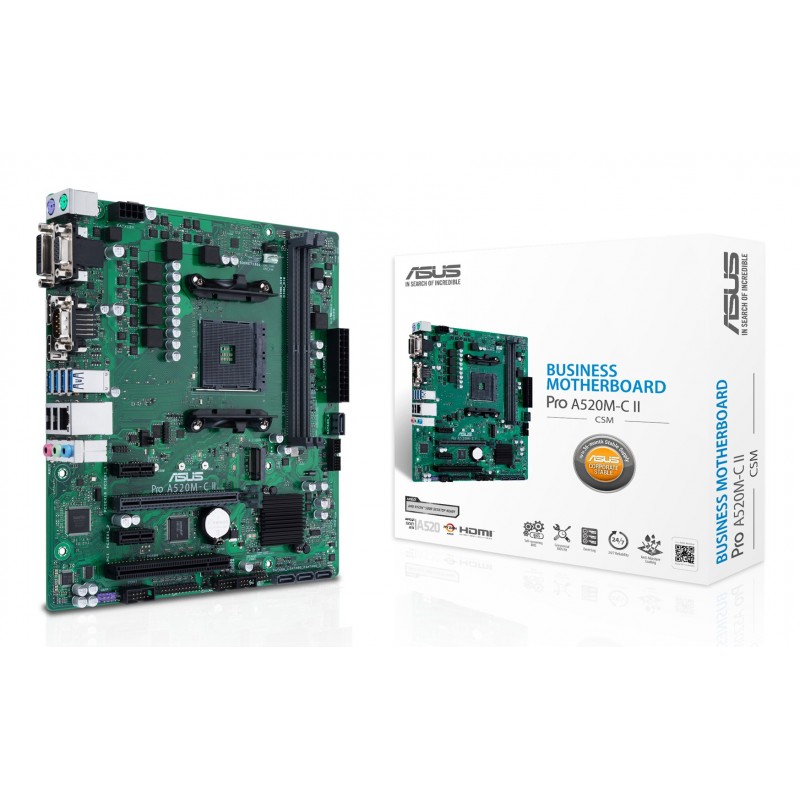

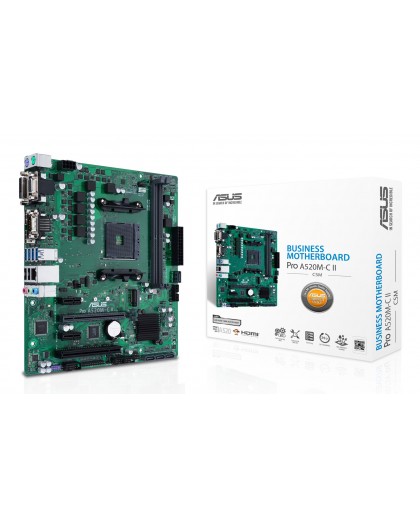

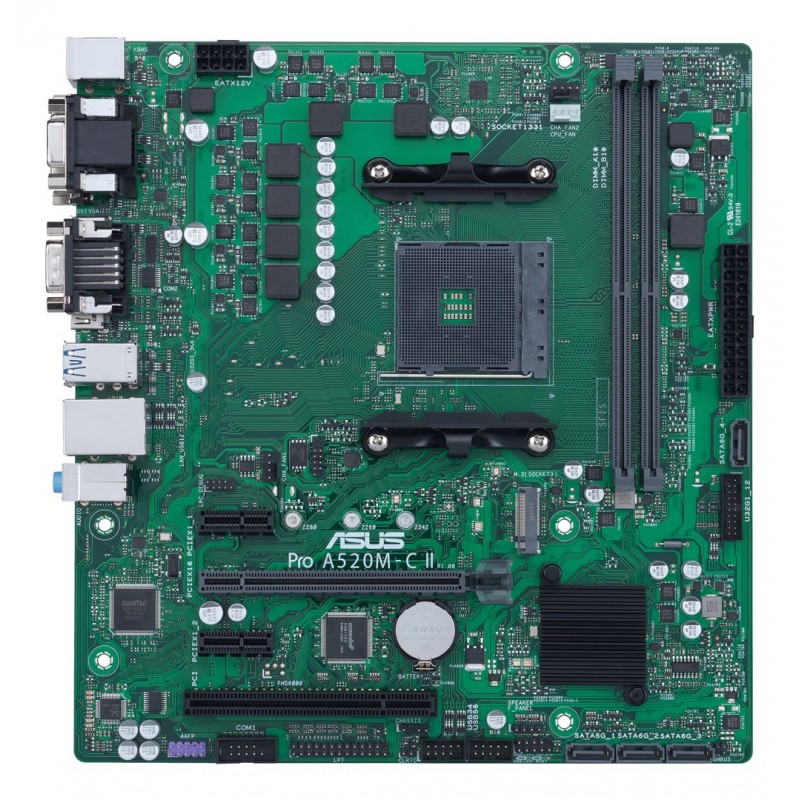

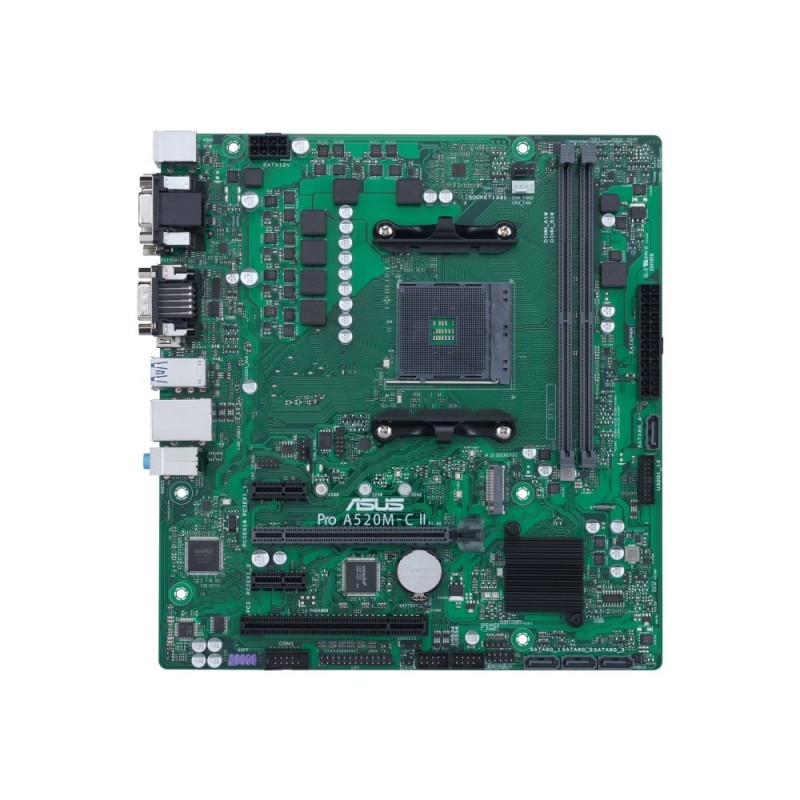

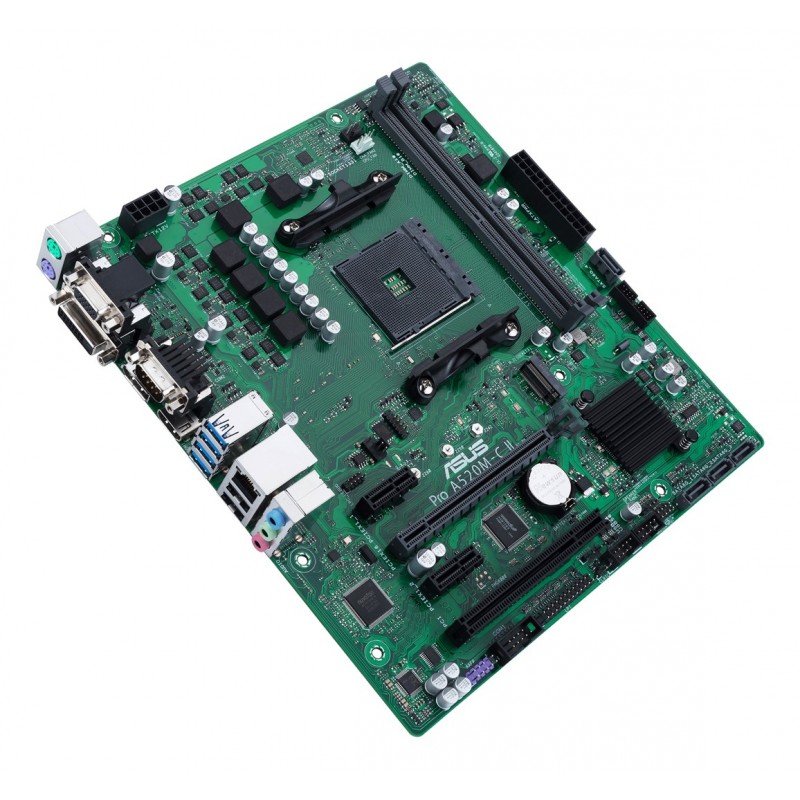

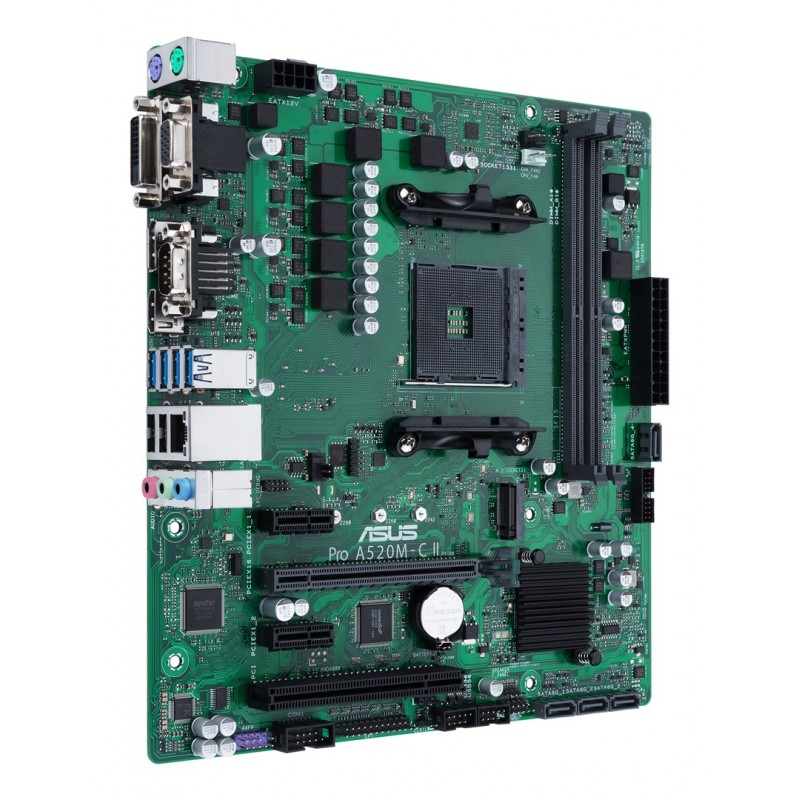

ASUS PRO A520M-C II/CSM AMD A520 Socket AM4 micro ATX
90MB18F0-M0EAYC
Новый продукт
26 Элементы
Shipping 2025-11-24 days
109,00 € включая налог.
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of EATX power connectors | 1 |
| Number of SATA III connectors | 4 |
| Parallel connector | Yes |
| Serial port headers | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Memory | |
| ECC сompatibility | ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 3466 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 3333 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 3866 |
| Supported memory clock speeds | 4133 |
| Supported memory clock speeds | 4000 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 3600 |
| Supported memory clock speeds | 4600 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Packaging data | |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 910 g |
| Package width | 270 mm |
| Processor | |
| Compatible processor series | AMD Ryzen™ 7 |
| Compatible processor series | AMD Ryzen™ 3 |
| Compatible processor series | AMD Ryzen™ 5 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| COM ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| Number of storage drives supported | 5 |
| RAID levels | 10 |
| RAID levels | 1 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 229 mm |
| Width | 244 mm |
