Новый Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

Asrock

B450MPRO4R2.0

Новый продукт

49 Элементы

Shipping 2025-11-14 days

79,00 € включая налог.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots1
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
Features
Audio chipRealtek ALC892 / Realtek ALC897
Audio output channels7.1 channels
Motherboard chipsetAMD B450
Motherboard chipset familyAMD
Motherboard form factormicro ATX
PC health monitoringVoltage
PC health monitoringFan
PC health monitoringTemperature
Power source typeATX
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Graphics
DirectX version12.0
Graphics card familyAMD
HDCPYes
Maximum resolution4096 x 2160 pixels
Number of displays supported3
On-board graphics cardYes
Parallel processing technology supportCrossFireX
Parallel processing technology supportQuad-GPU CrossFireX
Internal I/O
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors3
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds2133
Supported memory clock speeds3200
Supported memory clock speeds2400
Supported memory clock speeds2667
Supported memory clock speeds2933
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes
Wi-FiNo
Packaging content
Bundled softwareASRock A-Tuning ASRock Polychrome SYNC ASRock XFast LAN
Cables includedSATA
Drivers includedYes
Processor
Compatible processor seriesAMD Ryzen™ 7
Compatible processor seriesAMD Ryzen™ 5
Compatible processor seriesAMD Ryzen™ 3
Processor manufacturerAMD
Processor socketSocket AM4

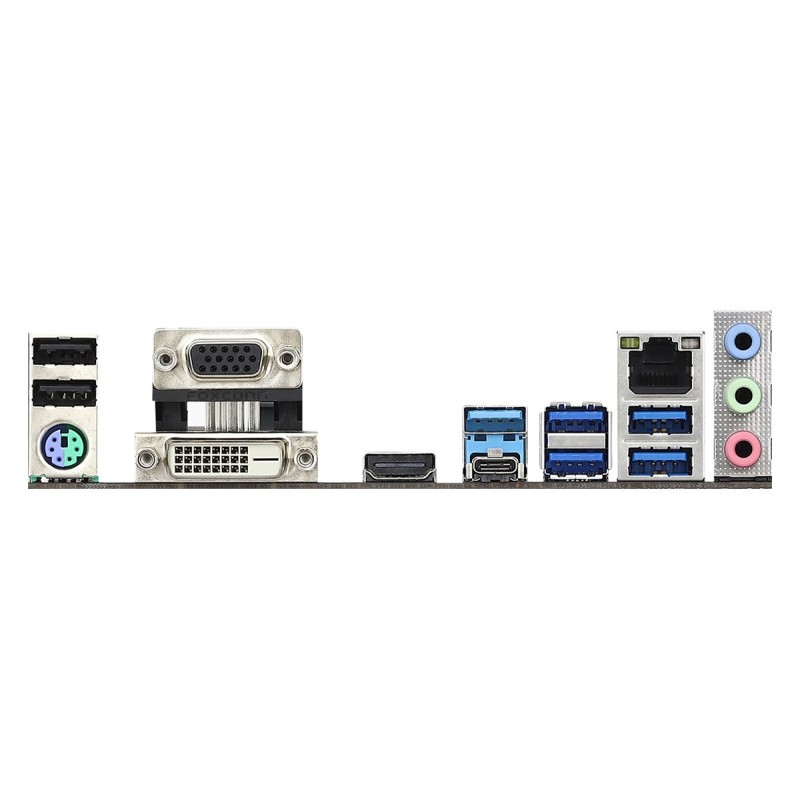

Rear panel I/O ports
DVI-D ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version1.4
Headphone outputs1
Microphone inYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB connector typeUSB Type-C
USB connector typeUSB Type-A
VGA (D-Sub) ports quantity1
Storage controllers
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 3.0, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width244 mm
