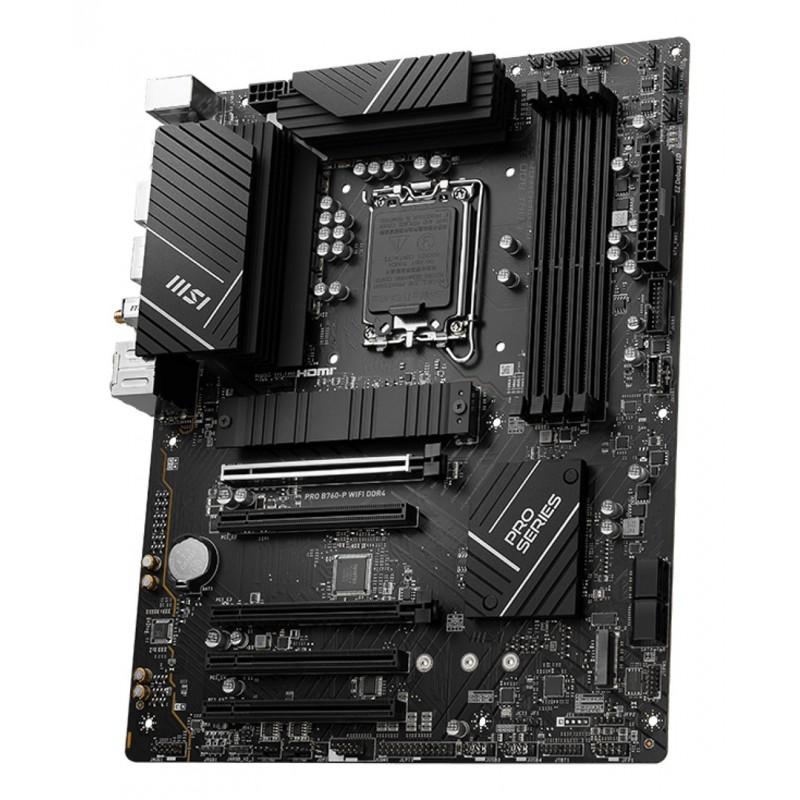

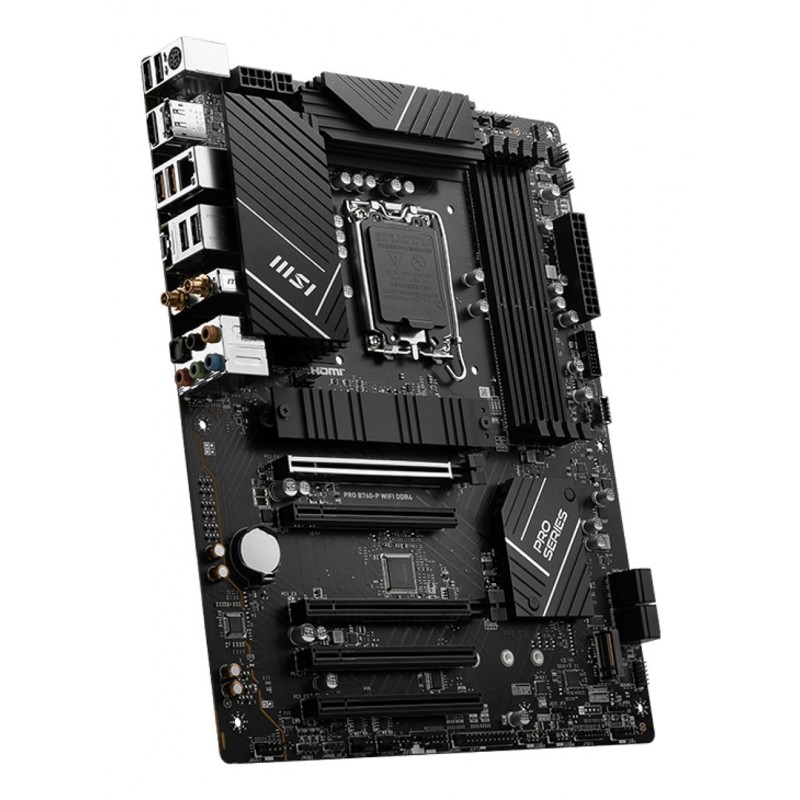

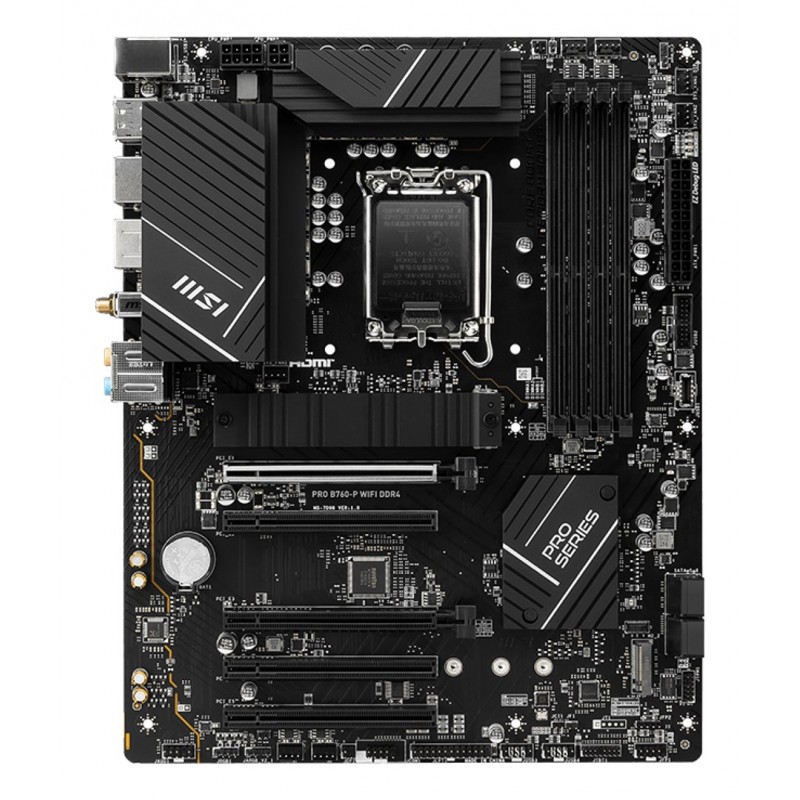

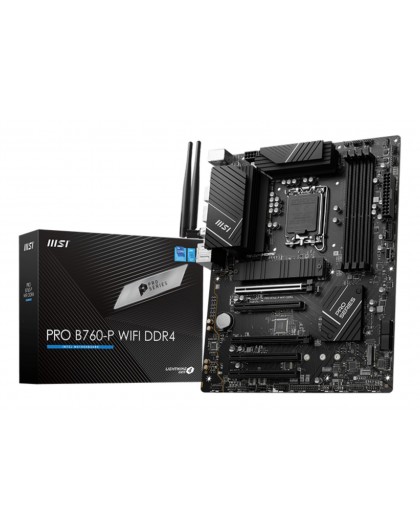

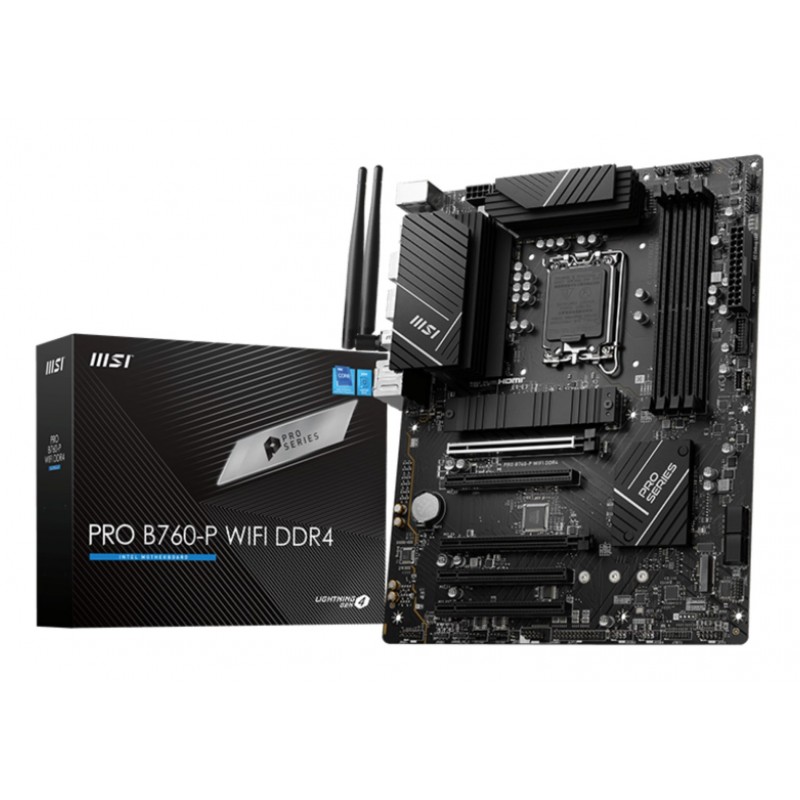

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
PROB760-PWIFIDDR4
Новый продукт
1 Пункт
Shipping 2025-11-14 days
Внимание: последний на складе!
149,00 € включая налог.
| BIOS | |
| BIOS type | UEFI AMI |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 5 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 |
| Graphics | |
| On-board graphics card | No |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3466 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 3800 |
| Supported memory clock speeds | 3333 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 4600 |
| Supported memory clock speeds | 3400 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 4266 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 4200 |
| Supported memory clock speeds | 5200 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Supported memory clock speeds | 4000 |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 5333 MHz |
| Supported memory clock speeds | 5066 |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Bluetooth | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Processor | |
| Compatible processor series | Intel® Pentium® Gold |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |

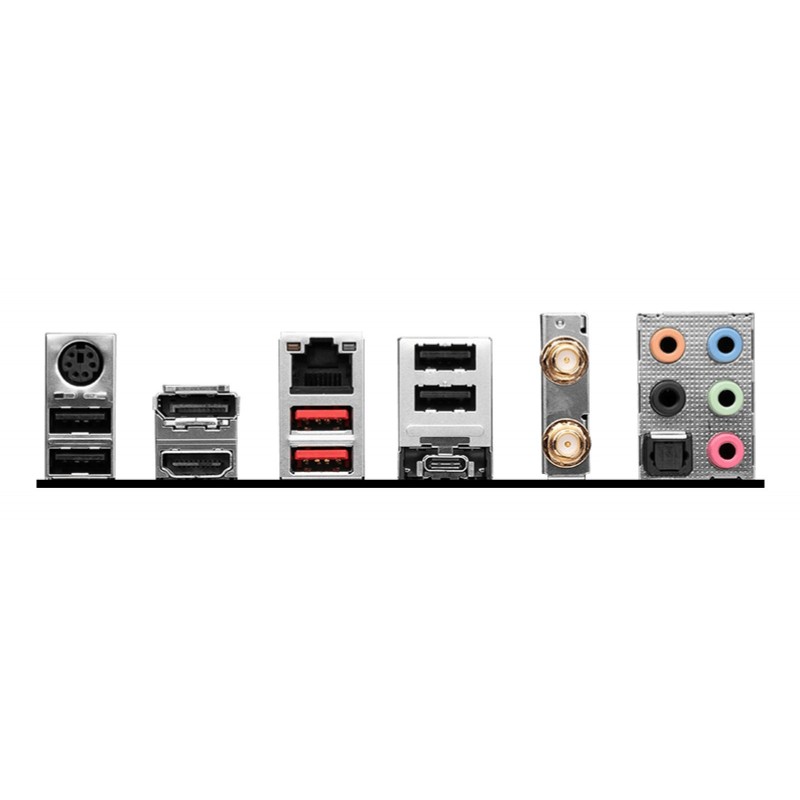

| Rear panel I/O ports | |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Safety warning | |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Storage controllers | |
| RAID levels | 10 |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Weight & dimensions | |
| Depth | 304.8 mm |
| Width | 243.8 mm |
