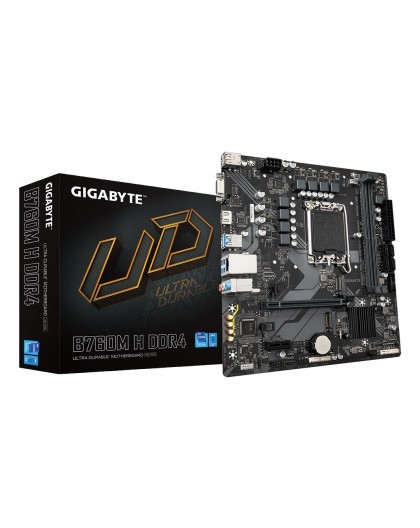

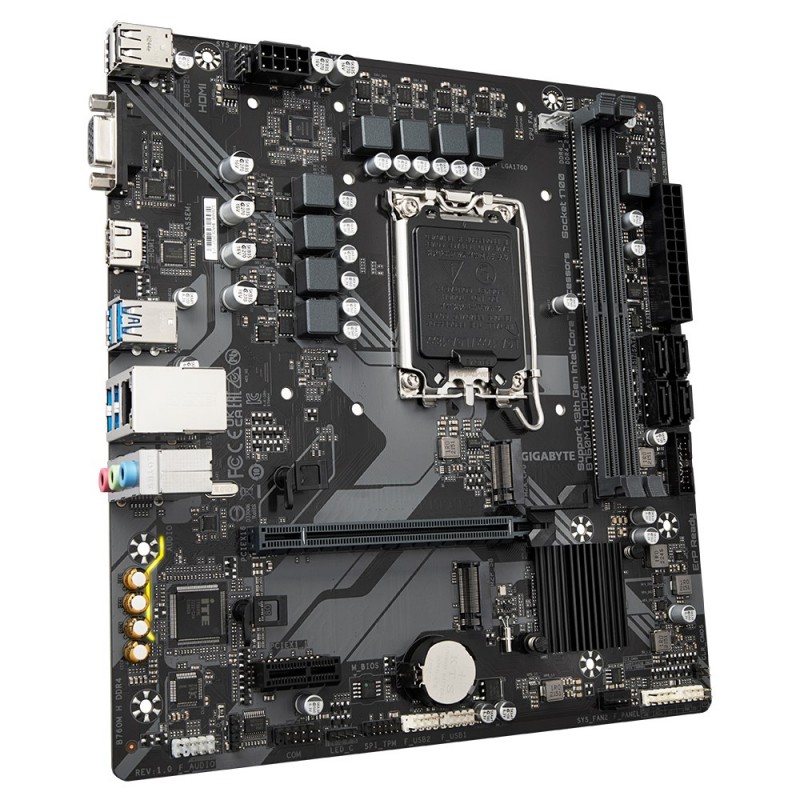

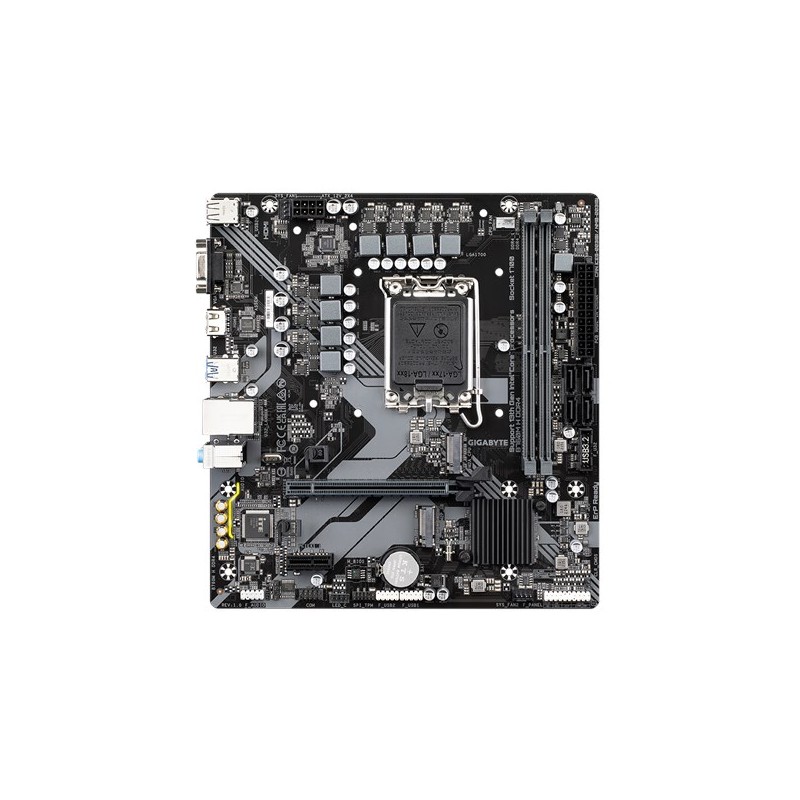

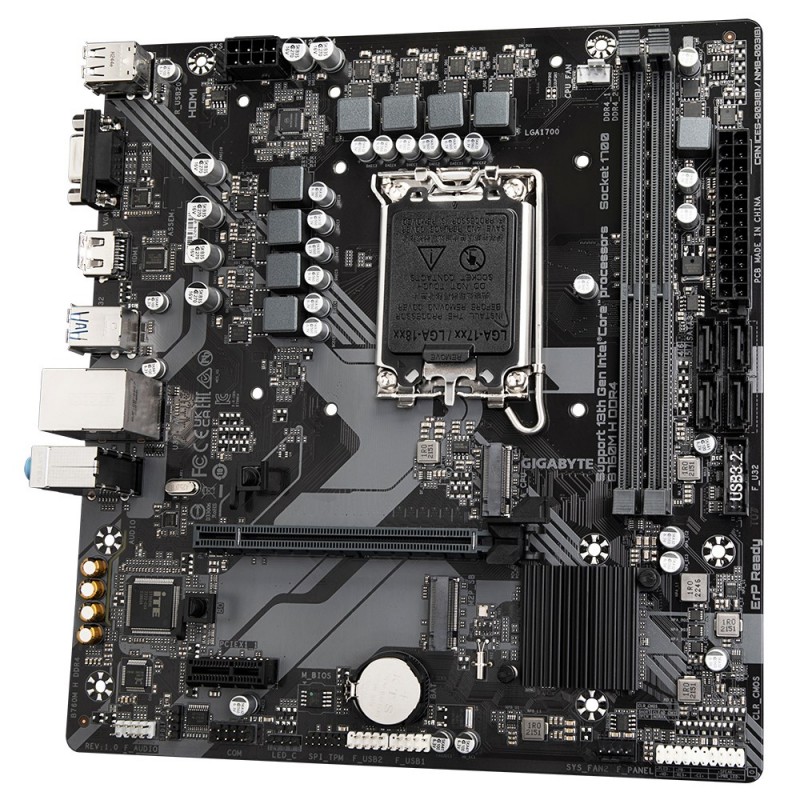

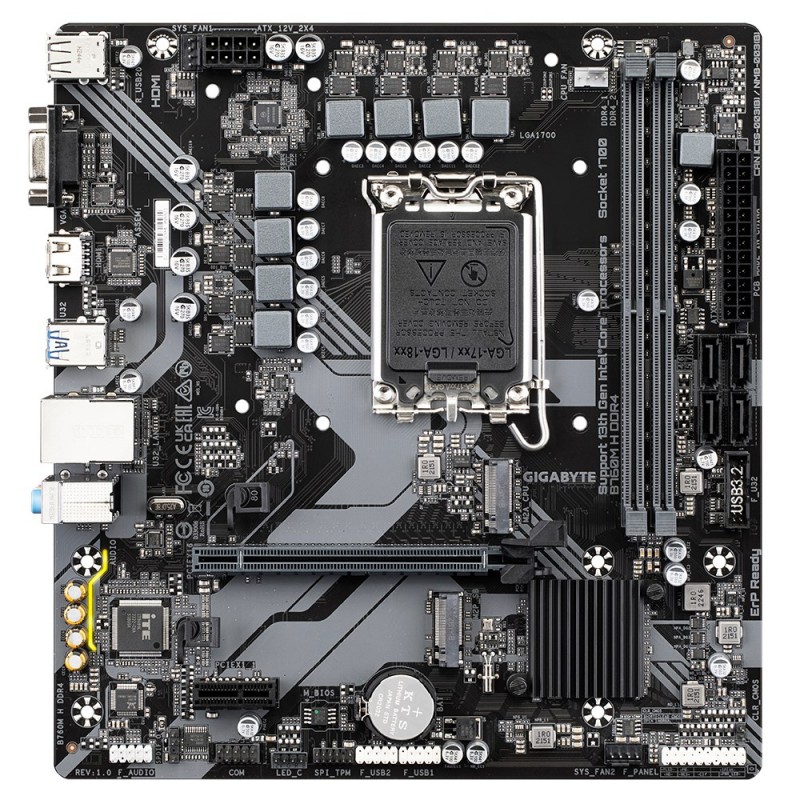

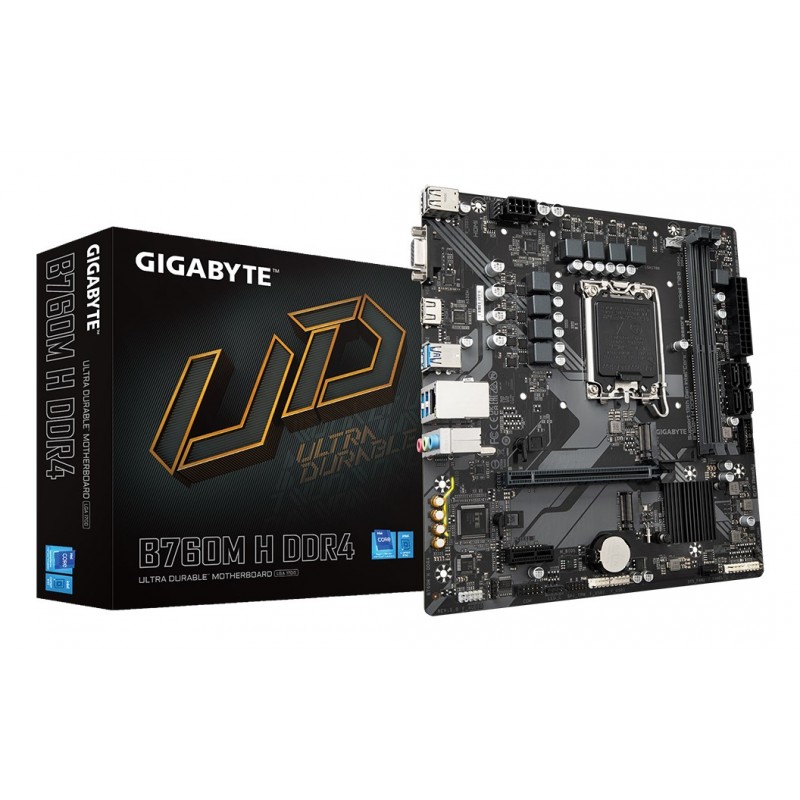

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe
B760MHDDR4
Новый продукт
10 Элементы
Shipping 2025-11-20 days
109,00 € включая налог.
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| BIOS | |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Product colour | Bronze |
| Windows operating systems supported | Windows 11 |
| Windows operating systems supported | Windows 10 |
| Graphics | |
| DirectX version | 12.1 |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2933 |
| Supported memory module capacities | 32GB |
| Supported memory module capacities | 8GB |
| Supported memory module capacities | 16GB |
| Supported memory module capacities | 12GB |
| Supported memory module capacities | 1GB |
| Supported memory module capacities | 2GB |
| Supported memory module capacities | 4GB |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Packaging content | |
| Batteries included | Yes |
| Packaging data | |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 825 g |
| Package width | 265 mm |
| Processor | |
| Compatible processor series | Intel® Pentium® Gold |
| Compatible processor series | Intel® Celeron® |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 1 |
| RAID levels | 10 |
| RAID levels | 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Depth | 215 mm |
| Height | 35 mm |
| Width | 230 mm |
