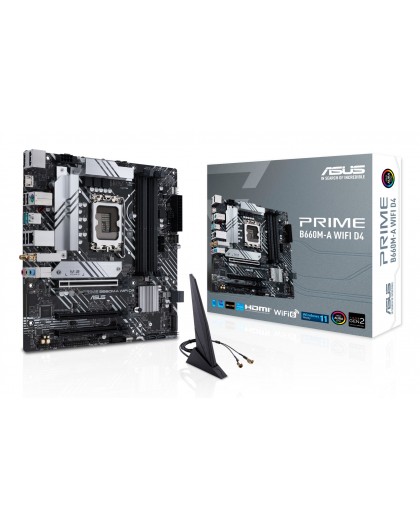

Дома / ///ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
Новый ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

ASUS

90MB1AE0-M1EAY0

Новый продукт

43 Элементы

Shipping 2025-11-14 days

129,00 € включая налог.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots2
PCI Express x16 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetIntel B660
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Windows operating systems supportedWindows 10 x64
Graphics
Number of displays supported3
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors2
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
S/PDIF out connectorYes
USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Logistics data
Harmonized System (HS) code84733020
Memory
ECC сompatibilityNon-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds3733
Supported memory clock speeds4400 MHz
Supported memory clock speeds5000
Supported memory clock speeds4000
Supported memory clock speeds4800 MHz
Supported memory clock speeds3400
Supported memory clock speeds3333
Supported memory clock speeds3000
Supported memory clock speeds5333 MHz
Supported memory clock speeds3200 MHz
Supported memory clock speeds2666
Supported memory clock speeds2400
Supported memory clock speeds2800
Supported memory clock speeds4600
Supported memory clock speeds3466
Supported memory clock speeds2933
Supported memory clock speeds3600
Supported memory clock speeds2133
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.2
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-FiYes
Wi-Fi standards802.11b
Wi-Fi standardsWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standards802.11a
Wi-Fi standardsWi-Fi 6 (802.11ax)
Wi-Fi standards802.11g
Other features
Weight819 g
Packaging content
Cables includedSATA
Drivers includedYes
Processor
Compatible processor seriesIntel® Pentium®
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Core™ i3
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity2
HDMI version2.1
Headphone outputs1
Microphone inYes
PS/2 ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Safety warning
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Storage controllers
RAID levels1
RAID levels5
RAID levels10
Supported storage drive interfacesM.2, SATA
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Height60 mm
Width244 mm
