Новый Biostar J4125NHU motherboard mini ITX

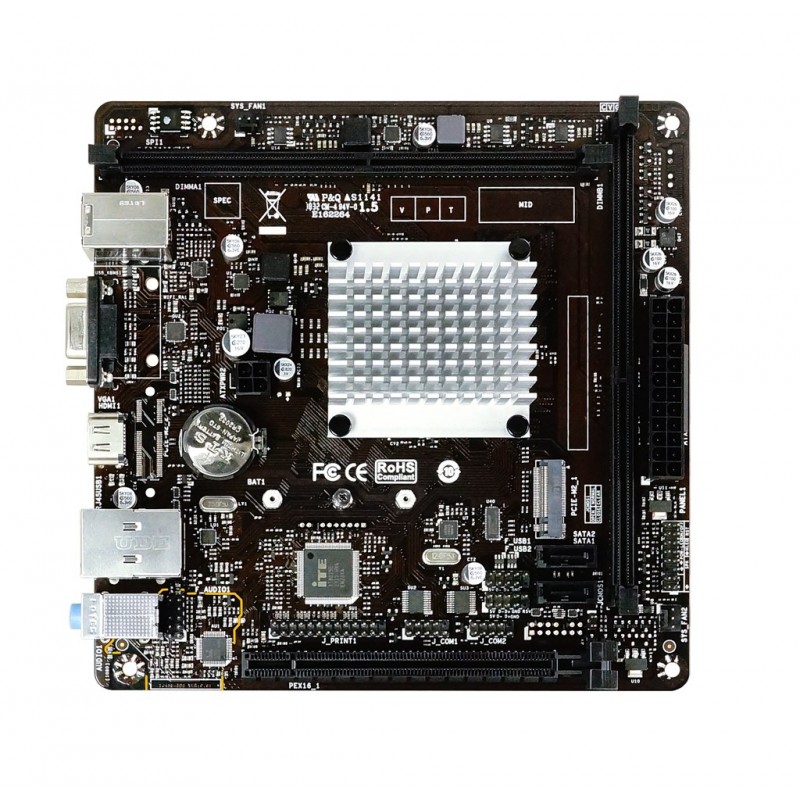

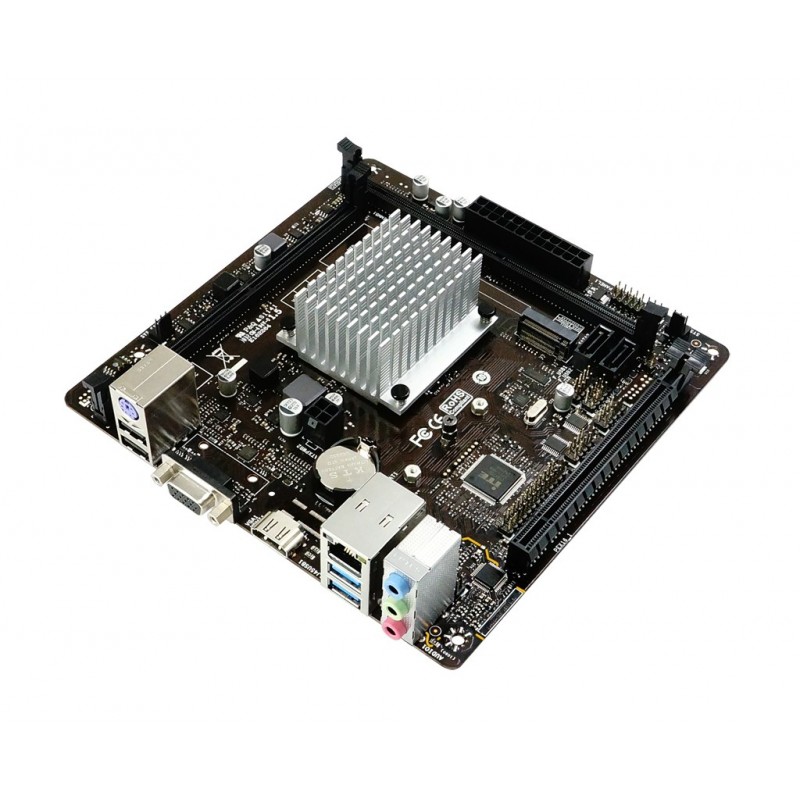

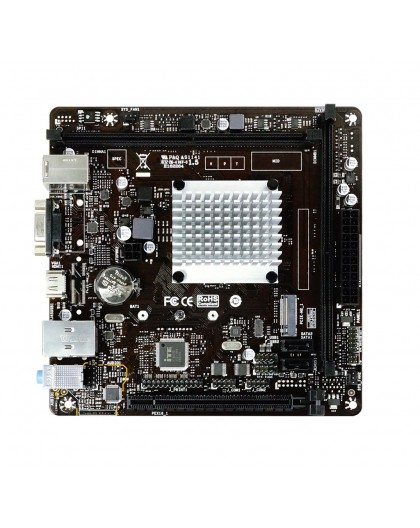

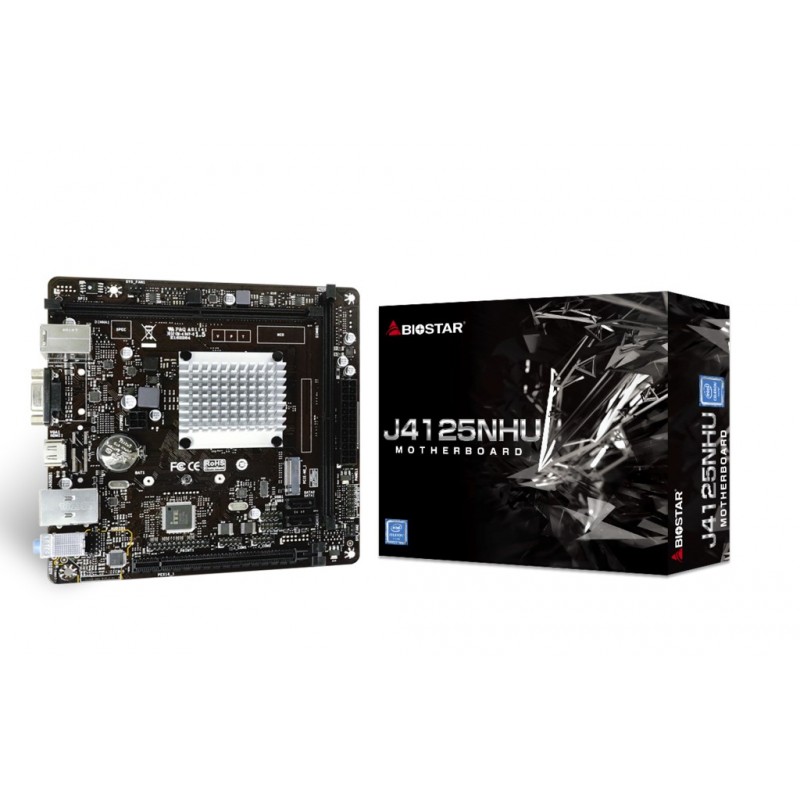

Biostar J4125NHU motherboard mini ITX

Biostar

J4125NHU

Новый продукт

20 Элементы

Shipping 2025-11-14 days

109,00 € включая налог.

BIOS
BIOS typeUEFI
Expansion slots
PCI Express x16 (Gen 2.x) slots2
Features
Audio chipRealtek ALC887
Audio output channels7.1 channels
Component forPC
Motherboard chipset familyIntel
Motherboard form factormini ITX
Windows operating systems supportedYes
Graphics
DirectX version12.0
Graphics cardIntel® UHD Graphics 600
Graphics card familyIntel
OpenGL version4.4
Internal I/O
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of COM connectors1
Number of SATA III connectors2
Peripheral (Molex) power connectors (4-pin)1
USB 2.0 connectors2
Memory
ECC сompatibilityNon-ECC
Maximum internal memory8 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds1866
Supported memory clock speeds2400 MHz
Supported memory clock speeds2133 MHz
Supported memory typesDDR4-SDRAM
Network
Ethernet LANYes
LAN controllerRealtek RTL8111H
Processor
Compatible processor seriesIntel® Celeron®
Maximum internal memory supported by processor8 GB
Maximum number of SMP processors1
Processor cores4
Processor manufacturerIntel
Processor modelJ4125

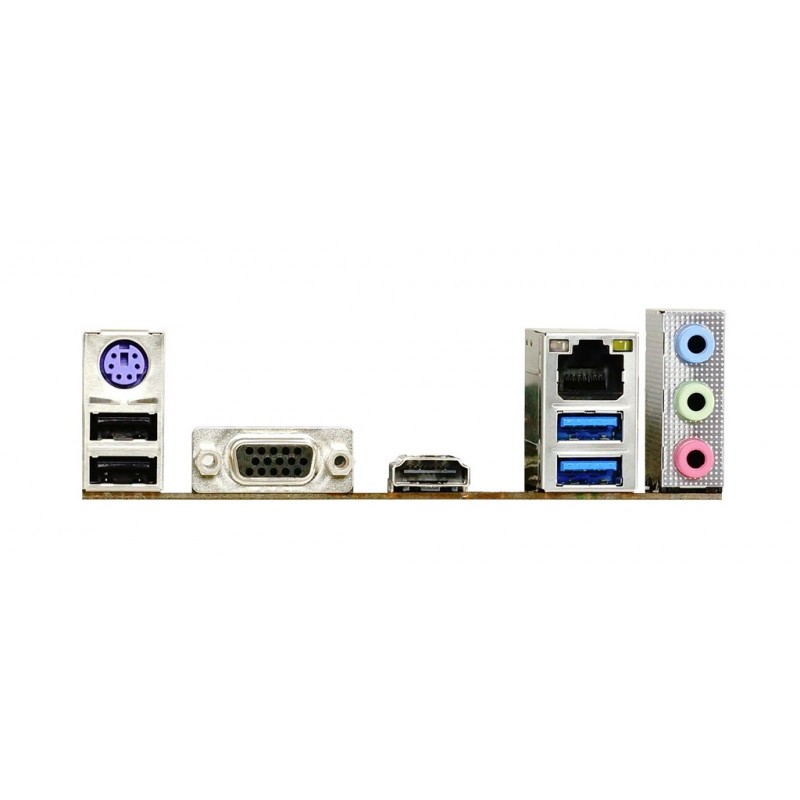

Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
Storage controllers
Number of HDDs supported2
Supported storage drive interfacesM.2, PCI Express 2.0, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth170 mm
Width170 mm
