Дома / ///DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black
Новый DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black

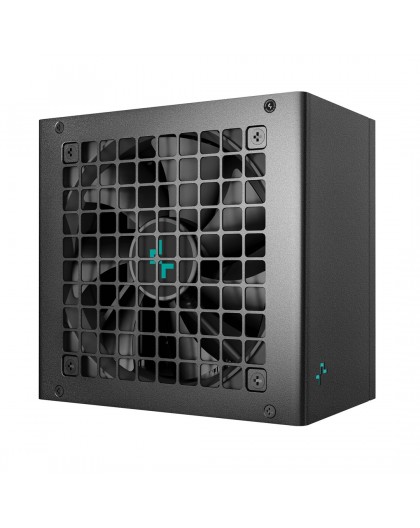

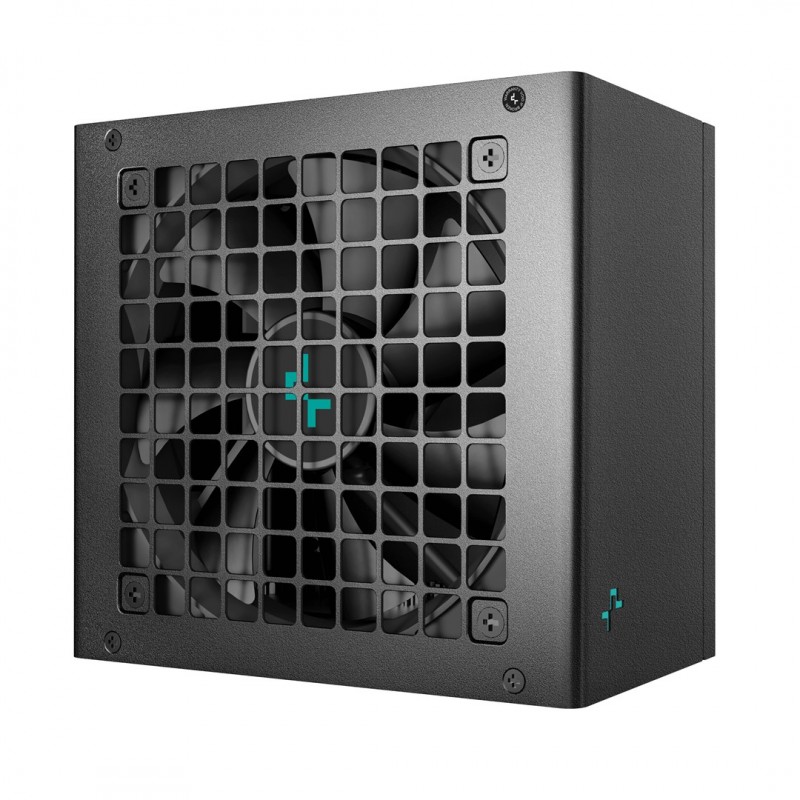

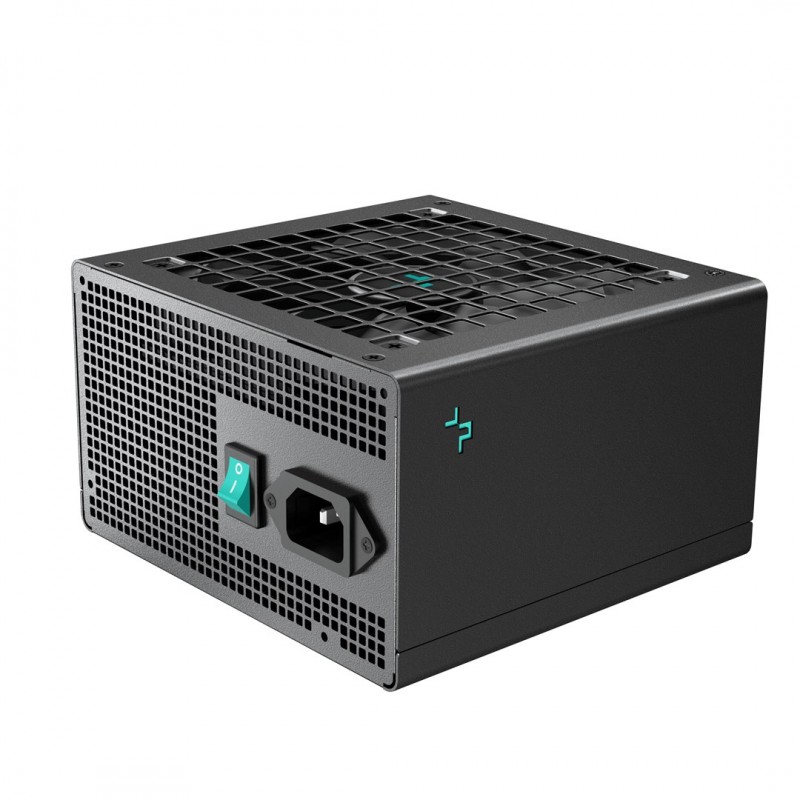

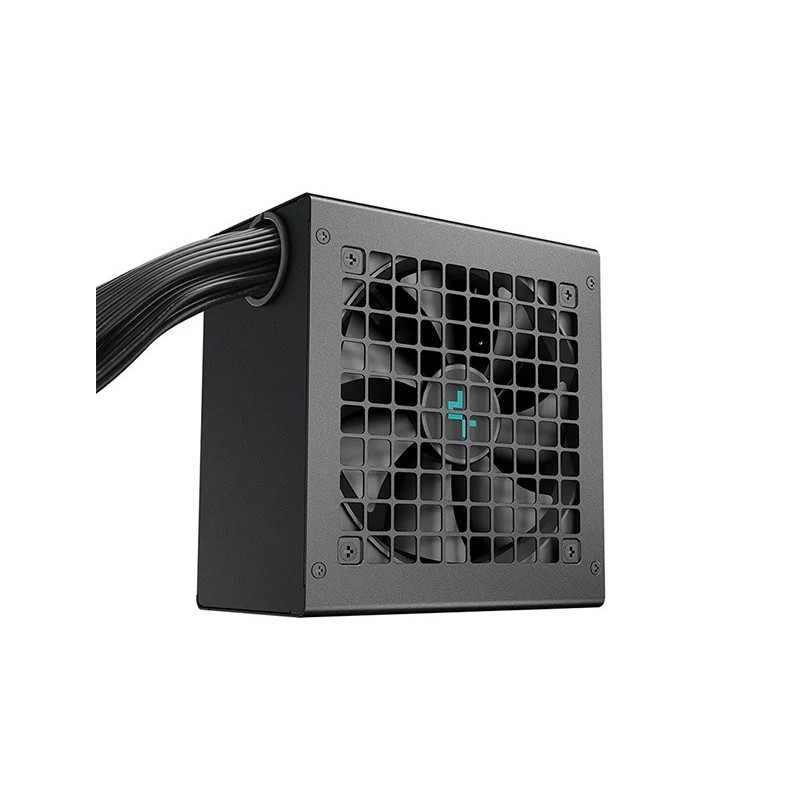

DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black

DEEPCOOL

R-PN750D-FC0B-EU

Новый продукт

5 Элементы

Shipping 2025-11-14 days

109,00 € включая налог.

Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C

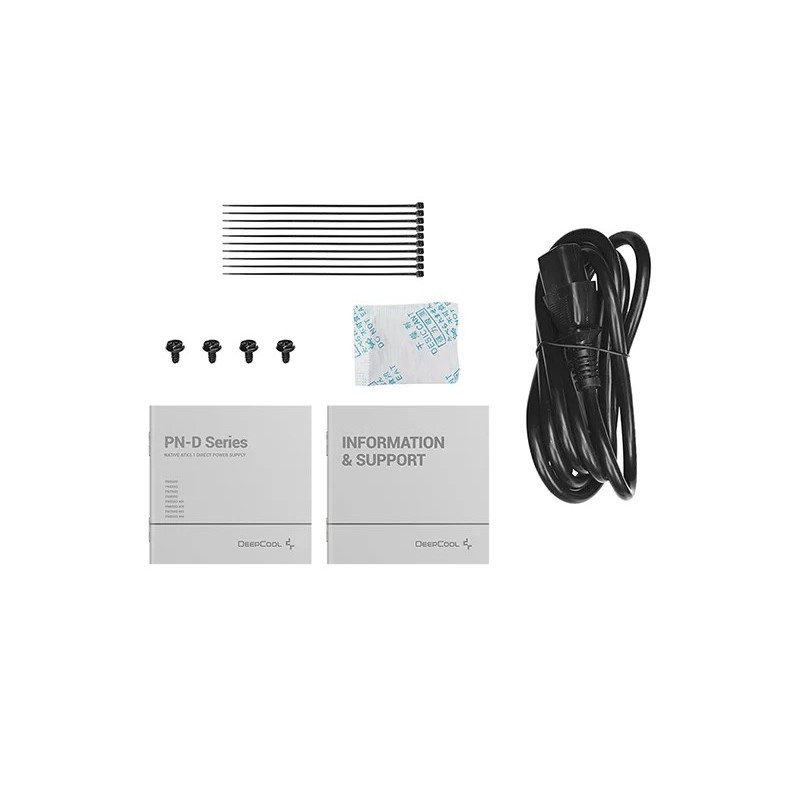

Packaging content
Cable tie(s) includedYes
Cables includedAC
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyFDB
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (20+4 pin)Yes
Cabling typeNon-Modular
CPU power cable length70 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors8
PCI Express power connectors (16-pin)1
PCI Express power connectors (6+2 pin)3
Peripheral (Molex) power cable length450 mm
Peripheral (Molex) power connectors (4-pin)2
SATA power cable length450
SATA power cable length750
SATA power cable length550
SATA power cable length650
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)750 W
Combined power (+3.3V)110 W
Combined power (+5V)110 W
Combined power (+5Vsb)15 W
Efficiency90%
Input current10 - 5 A
Max output current (-12V)0.3 A
Max output current (+12V)62.5 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Power protection featuresSurge protection
Power protection featuresNo load operation
Power protection featuresOver power
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresUnder voltage
Total power750 W
Safety warning
WarningsDo not open the case - risk of electric shock.
Technical details
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesCCC
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesWEEE
Compliance certificatesRCM
Compliance certificatesEAC
Sustainability certificatesTriman
Sustainability certificatesErP
Warranty period10 year(s)
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
