Дома / ///Cooler Master MWE Gold 750 V2 ATX 3.1 power supply unit 750 W 24-pin ATX Black
Новый Cooler Master MWE Gold 750 V2 ATX 3.1 power supply unit 750 W 24-pin ATX Black

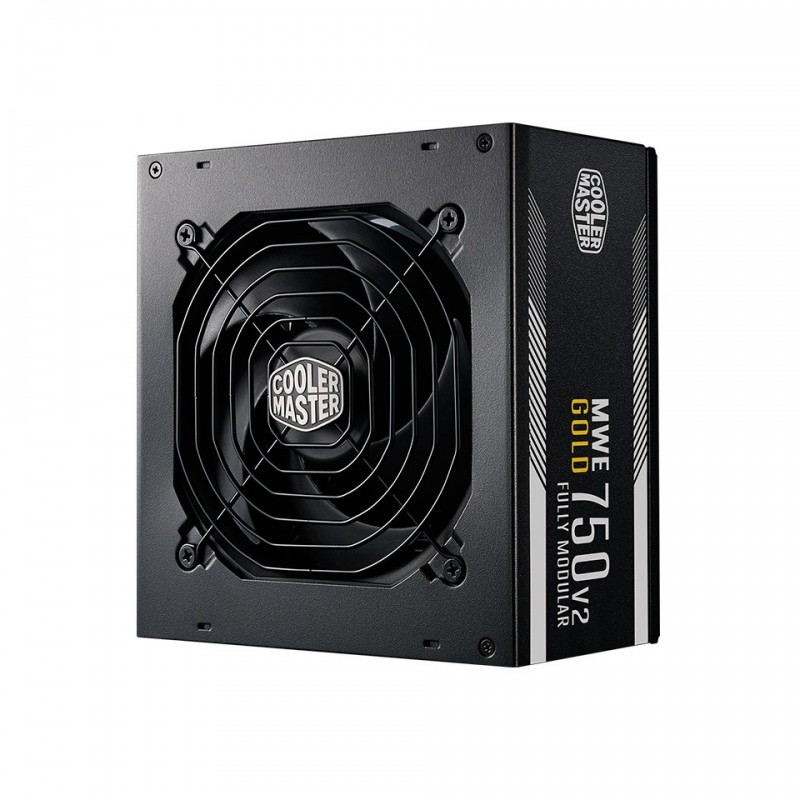

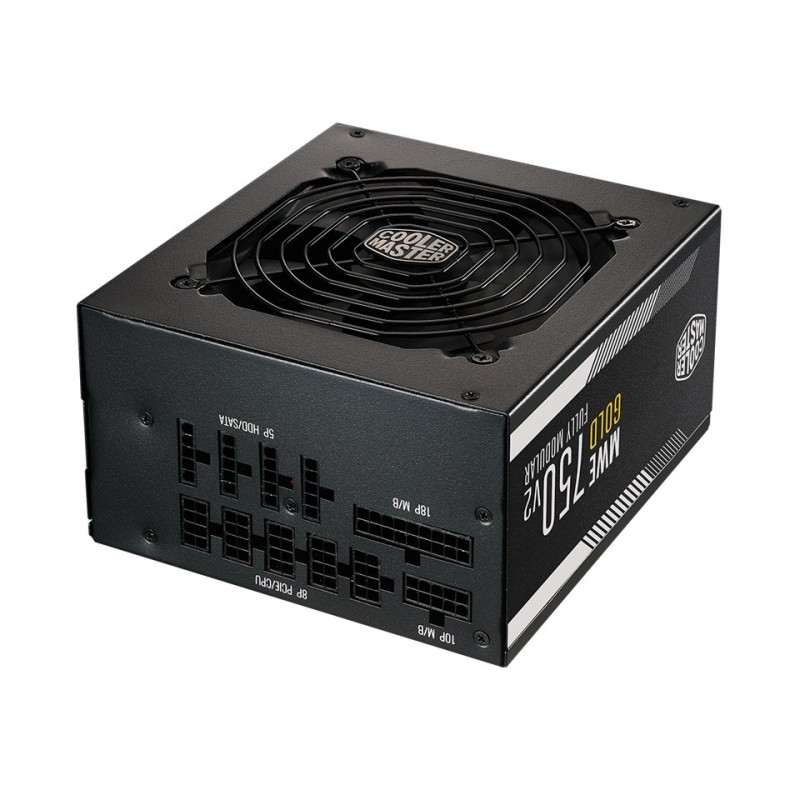

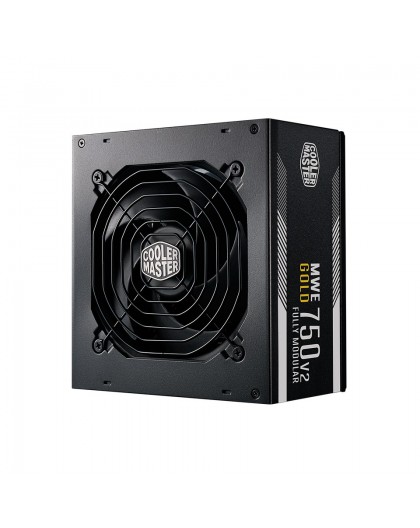

Cooler Master MWE Gold 750 V2 ATX 3.1 power supply unit 750 W 24-pin ATX Black

Cooler Master

MPE-7501-AFAAG-3EEU

Новый продукт

2 Элементы

Shipping 2025-11-14 days

Внимание: последний на складе!

119,00 € включая налог.

Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 50 °C
Packaging data
Package depth310 mm
Package height120 mm
Package typeBox
Package weight2.9 kg
Package width194 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyHDB
CertificationTUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC

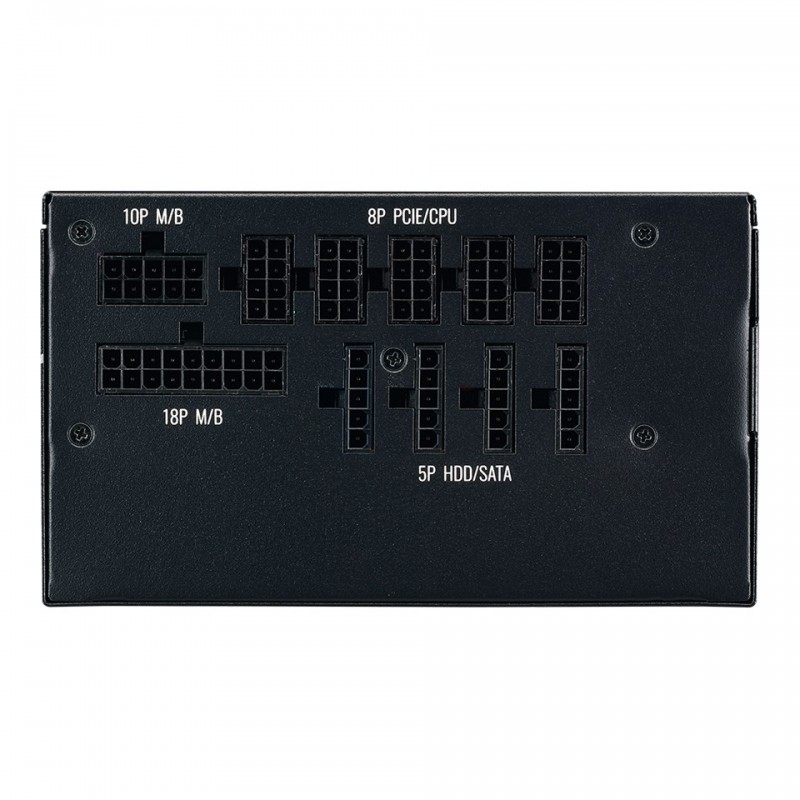

Ports & interfaces
ATX Power connector (24-pin)Yes
Cabling typeFully-Modular
EPS power connector (4+4 pin)Yes
EPS power connector (8-pin)Yes
Motherboard power cable length61 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors12
PCI Express power connectors (6+2 pin)4
Peripheral (Molex) power cable length740 mm
Peripheral (Molex) power cable length620
Peripheral (Molex) power cable length860 mm
Peripheral (Molex) power cable length500 mm
Peripheral (Molex) power connectors (4-pin)4
SATA power cable length500 mm
SATA power cable length860 mm
SATA power cable length740
SATA power cable length620
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)750 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Efficiency90%
Hold time16 ms
Input current10 - 5 A
Max output current (-12V)0.3 A
Max output current (+12V)62.5 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 150 ms
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOver total voltage
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresOver power
Total power750 W
Safety warning
WarningsDo not open the case - risk of electric shock.
Technical details
Sustainability certificatesErP
Weight & dimensions
Depth160 mm
Height86 mm
Weight2.62 kg
Width150 mm
